KTM 690 SMC - Adjusting High-Speed Compression Damping of the Shock Absorber

MAINTENANCE WORK ON CHASSIS AND ENGINE 68
100245-10

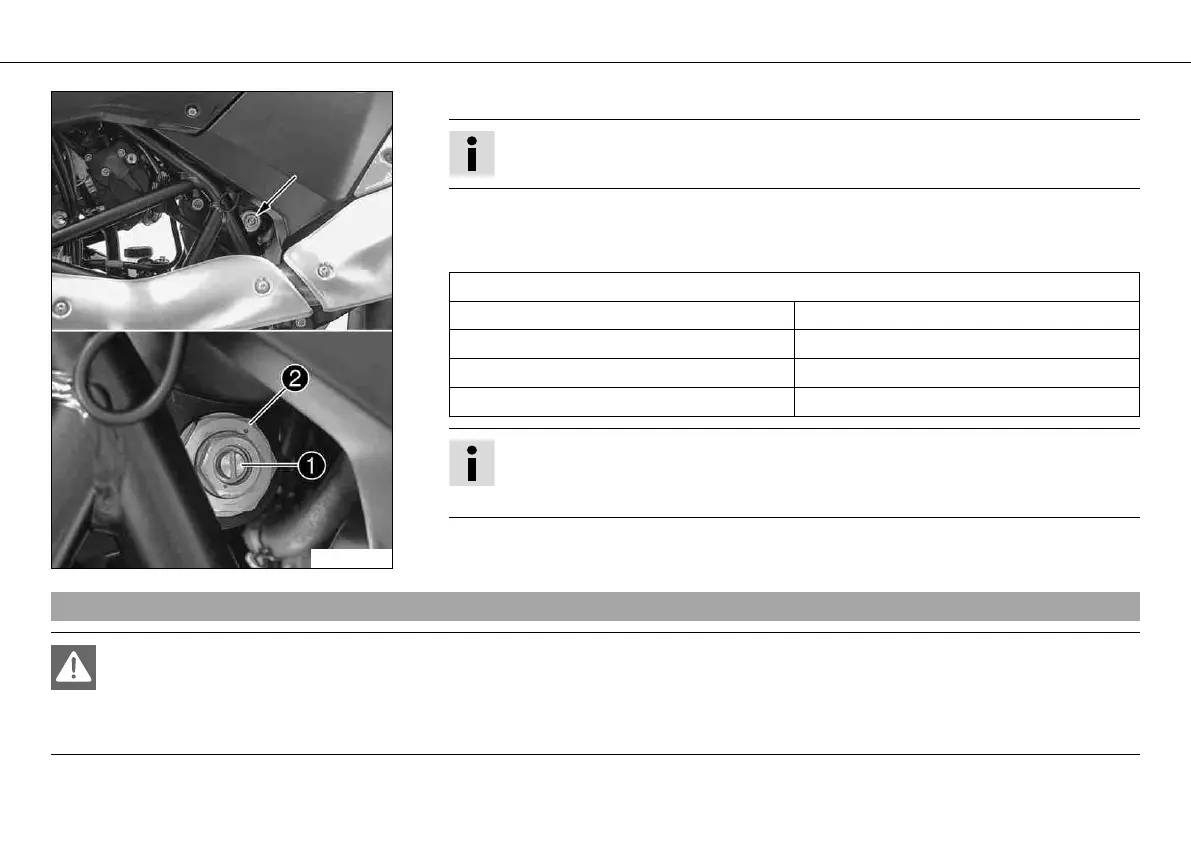

– Turn the adjusting screw clockwise with a screwdriver until it stops.
Info
Do not loosen nut!
– Turn back counterclockwise the number of clicks corresponding to the shock absorber
type.
Guideline
Compression damping, low-speed
Comfort 20clicks
Standard 15clicks
Sport 10clicks
full payload 10clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
9.10Adjusting high-speed compression damping of the shock absorber
Danger
Danger of accidents The shock absorber is under high pressure.
– The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any mainte-
nance on it yourself.
