MAINTENANCE WORK ON CHASSIS AND ENGINE 90
100254-11
–

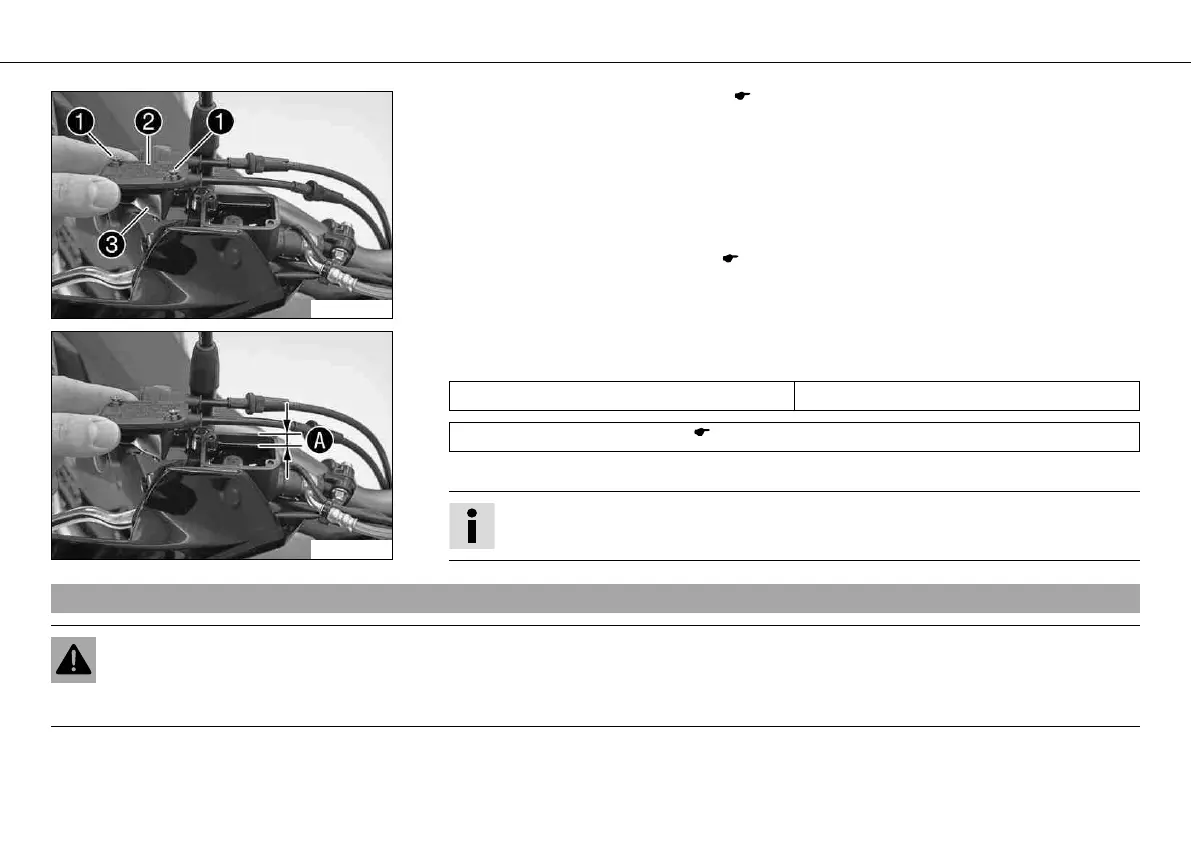

Remove the front brake linings.x ( S. 90)
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws.
– Remove cover with membrane.
– Press the brake piston back to its basic position and make sure that no brake fluid over-
flows from the reservoir.
–
Mount the front brake linings.x ( S. 91)
– Check parts for damage and wear. Replace damaged or worn parts.
100254-12
– Adjust the brake fluid level to level.
Guideline
Measurement of 5mm (0.2in)
Brake fluid DOT4/DOT5.1 ( S. 173)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
9.35Removing front brake liningsx
Warning
Danger of accidents Improper brake maintenance and repair.
– Always have your brake system maintained and repaired in an authorized KTM workshop.
