MAINTENANCE WORK ON CHASSIS AND ENGINE 94
600639-10

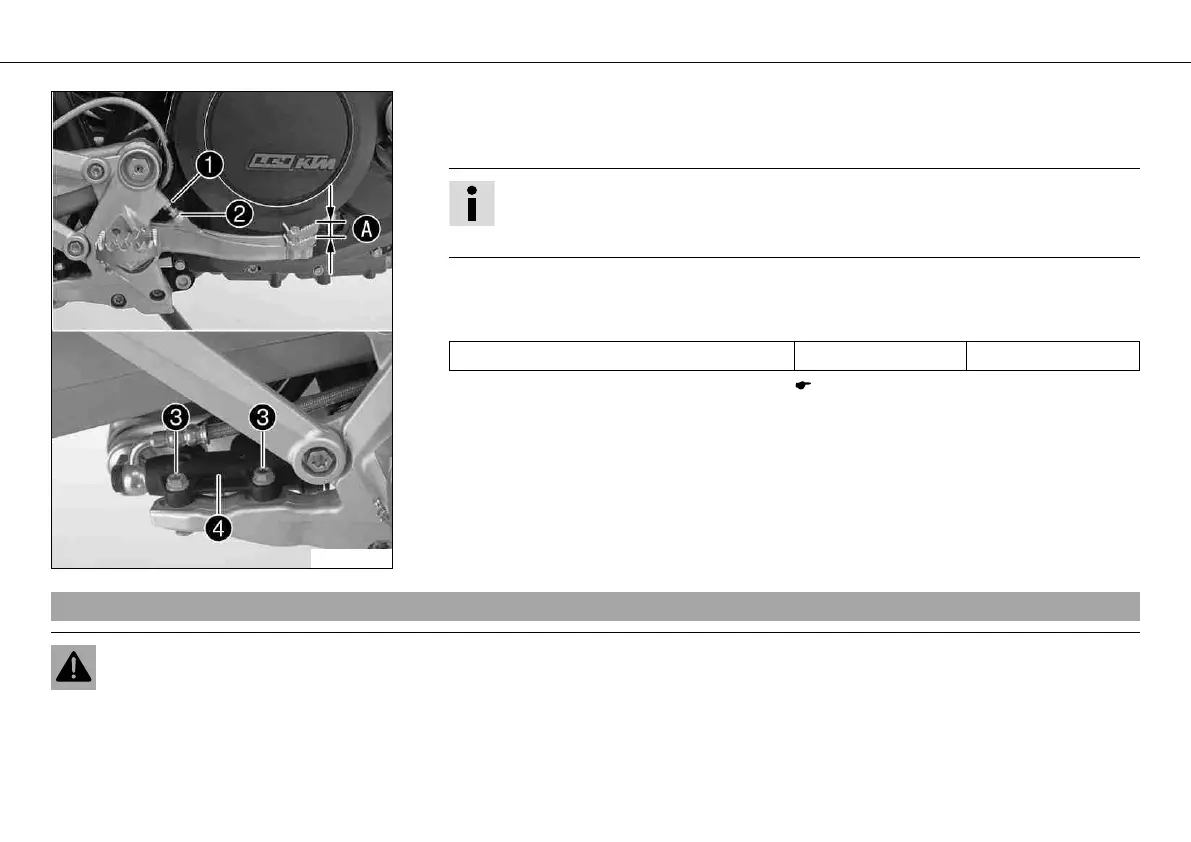

– Remove screw connection on foot brake cylinder.
– To adjust the basic position of the foot brake pedal as needed, loosen nut and turn
screw accordingly.
Info
The range of adjustment is limited. The screw must be screwed into the footrest
bracket by at least four turns.
– Position foot brake cylinder so that the foot brake pedal has the necessary free travel.
Hold screws in place and tighten the nuts.
Guideline
Nut, foot brake cylinder screw M6 10Nm (7.4lbfft)
– Check the free play of the foot brake lever. ( S. 93)
– Tighten nut.
9.39Checking rear brake fluid level
Warning
Danger of accidents Brake system failure.
– MINIf the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.
