KTM SX-E 3 2024 - Adjusting the Riding Sag

SUSPENSION SETTING 11
35

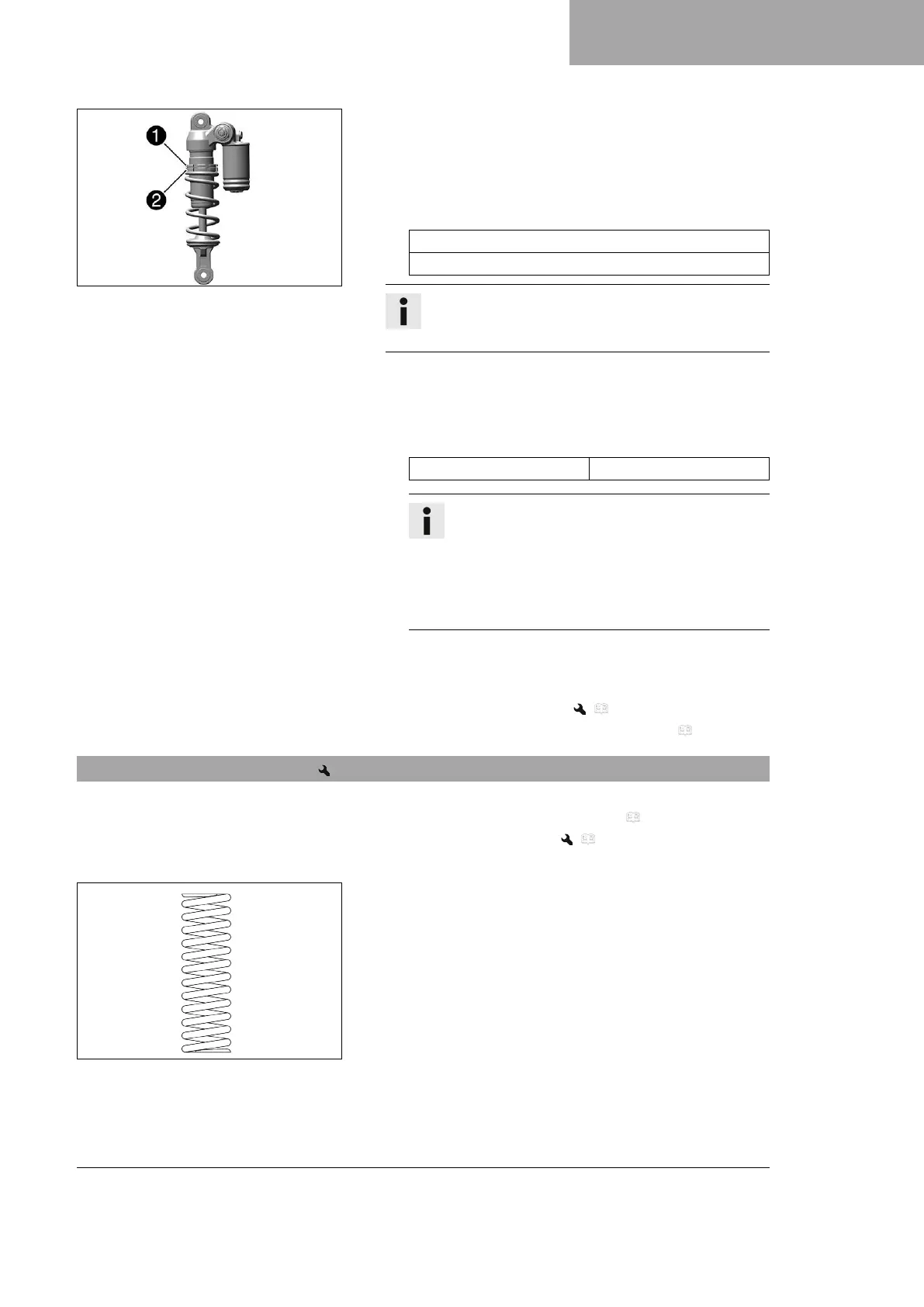

F02186-10
(SX‑E 5)
– Measure the full spring length while it is under tension and
note down the value.
–
Loosen retaining ring
1
.
–
Turn adjusting ring
2
until the spring is no longer under
tension.
Hook wrench (T304)
Hook wrench (T1533)
Info
If the spring cannot be fully released, the spring must
be removed to accurately measure the spring length.
– Measure the total spring length while the spring is not
under tension.
– Tighten the spring to the specified measurement by turn-
ing adjusting ring
2
.
Guideline
Spring preload 3 mm (0.12 in)
Info
The spring preload is the difference between the
relaxed spring length and the tensioned spring
length.
Depending on the static sag and/or the riding sag, it
may be necessary to increase or decrease the spring
preload.
–
Tighten retaining ring
1
.
Finishing work
(SX‑E 5)
– Install the shock absorber. ( p. 57)
– Remove the motorcycle from the lift stand. ( p. 46)
11.11 Adjusting the riding sag
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 46)
– Remove the shock absorber. ( p. 57)
– After removing the shock absorber, clean it thoroughly.
B00292-10
Main work
(SX‑E 3)
– Select and mount a suitable shock absorber.
