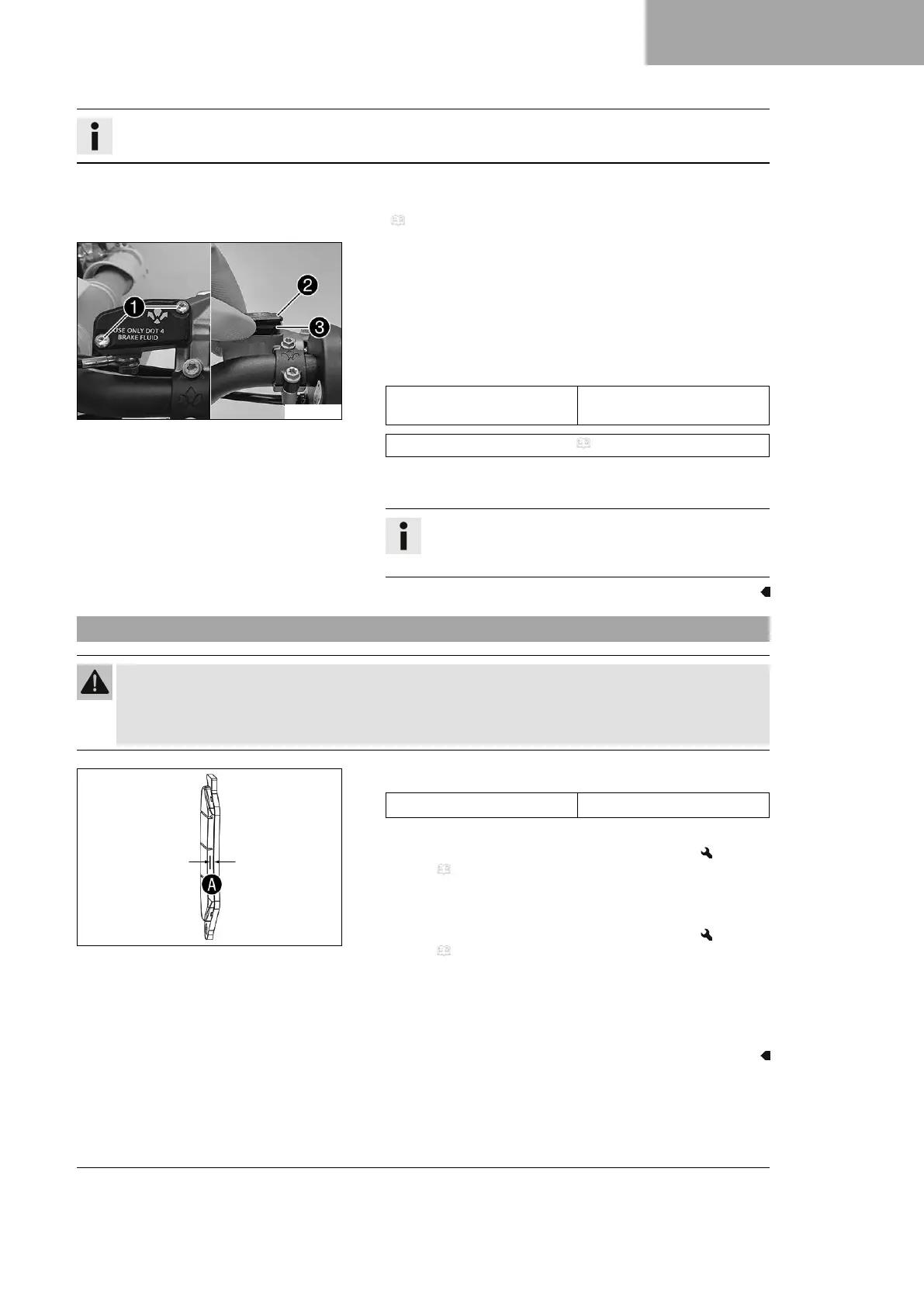

BRAKE SYSTEM 14
69
Info
Avoid contact between brake fluid and painted parts. Brake fluid corrodes paint.
Preparatory work
– Check that the brake linings of the front brake are secured.
( p. 69)
M02049-10
Main work
– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
– Correct the brake fluid level.
Guideline
Brake fluid level below reser-
voir rim
4 mm (0.16 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
14.6 Checking that the brake linings of the front brake are secured
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
M02047-10
–
Check the brake linings for lining thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If it is less than the minimum thickness:
– Change the brake linings of the front brake.
( p. 70)
– Check the brake linings for damage and cracking.
» If there is damage or cracking:
– Change the brake linings of the front brake.
( p. 70)
– Check that the brake linings are secured.
» If the brake linings are not secured correctly:
– Secure brake linings, replace with new parts if neces-
sary.
