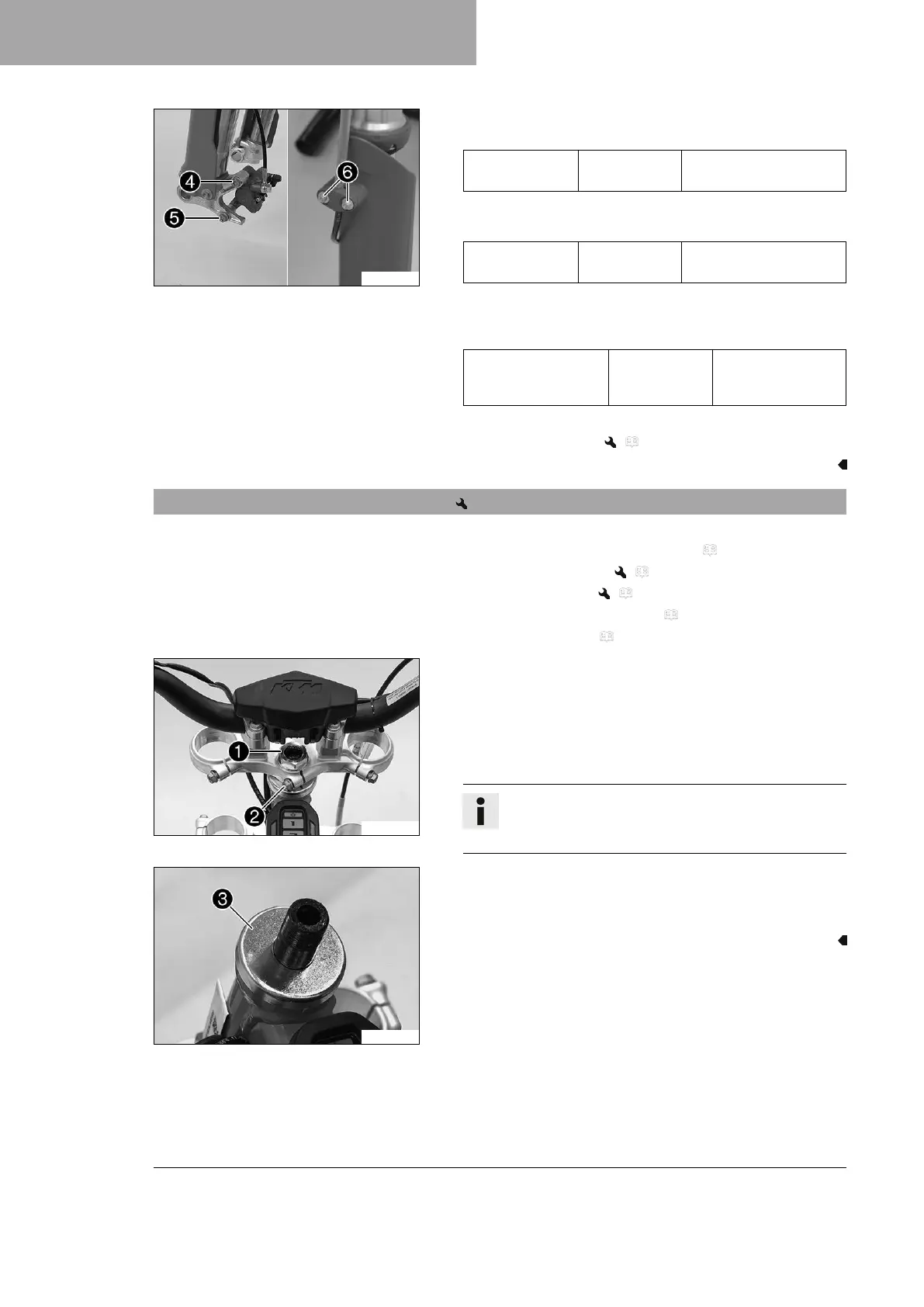

KTM SX-E 3 2024 - Removing the Lower Triple Clamp

13 SERVICE WORK ON THE CHASSIS
50
M02066-10
–
Position the brake caliper, mount screw
4
, and tighten.
Guideline
Screw, front
brake caliper
M8x35 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
5
.
Guideline
Screw, front
brake caliper
M8x35 20 Nm (14.8 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
6
.
Guideline
Screw, brake line
holder on fork protec-
tor
EJOT PT
®
K60x20‑AL
2 Nm (1.5 lbf ft)
Finishing work
– Install the front wheel. ( p. 82)
13.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 46)
– Remove the front wheel. ( p. 82)
– Remove the fork legs. ( p. 48)
– Remove the start number plate. ( p. 55)
– Remove front fender. ( p. 56)
M01667-10
Main work
–
Remove nut
1
.
– Remove the cable tie on the magnetic switch cable from the
handlebar.
–
Release screw
2
, take off the upper triple clamp with the
handlebar and set aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
M01668-10
–
Remove protective ring
3
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
