KTM SX-E 3 2024 - Installing the Fork Legs

SERVICE WORK ON THE CHASSIS 13
49

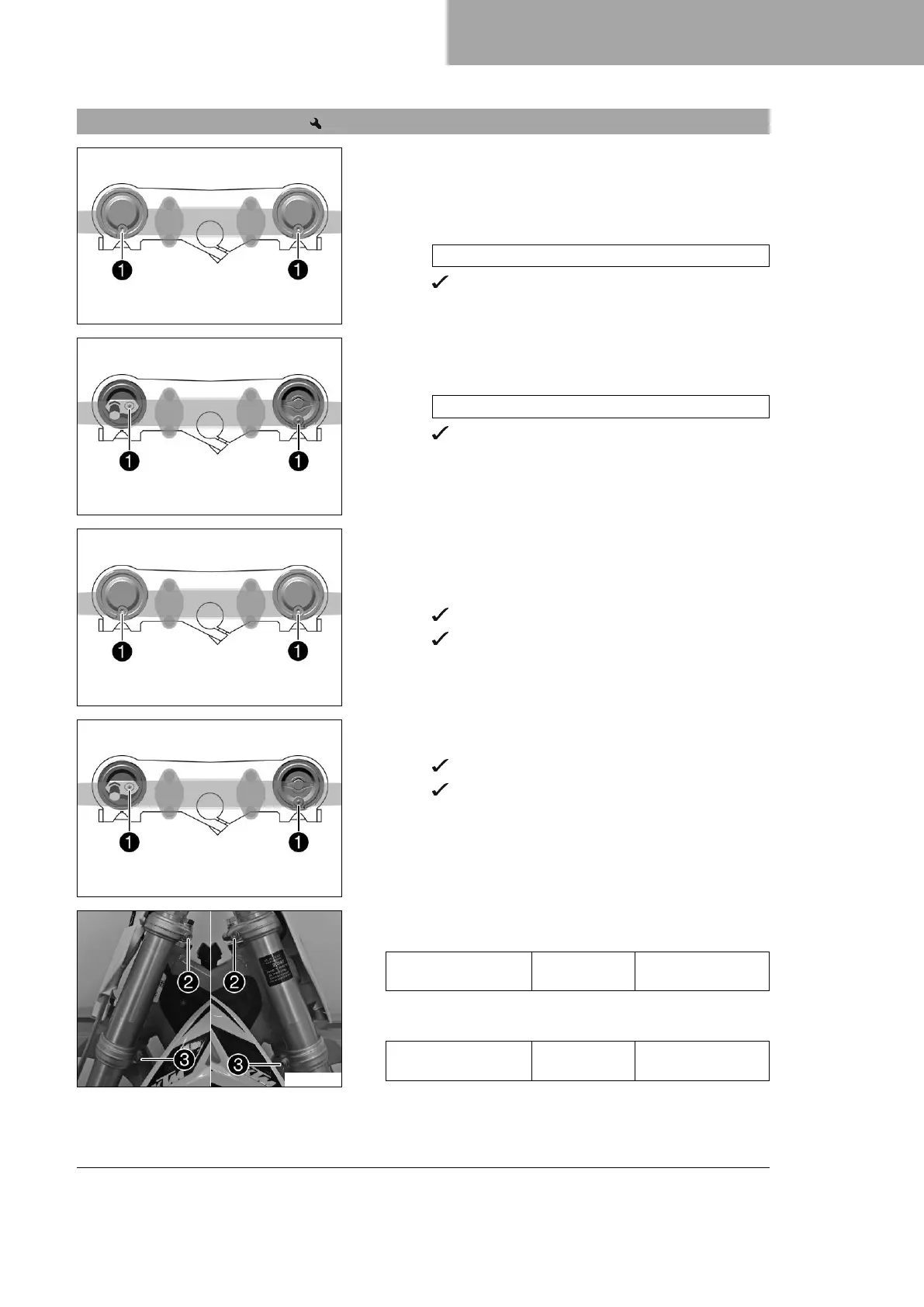

13.8 Installing the fork legs
M02044-10
Condition
Individual installation position
(SX‑E 3)
– Position the fork legs.
Guideline
Observe the position determined during removal.
Bleeder screws
1
are positioned toward the rear.
F02179-10
(SX‑E 5)
– Position the fork legs.
Guideline
Observe the position determined during removal.
Bleeder screws
1
are positioned toward the rear.
M02044-10
Condition
Standard installation position
(SX‑E 3)
– Position the fork legs.
Bleeder screws
1
are positioned toward the rear.
The second milled groove (from the top) is flush
with the upper edge of the upper triple clamp.
F02179-10
(SX‑E 5)
– Position the fork legs.
Bleeder screws
1
are positioned toward the rear.
The second milled groove (from the top) is flush
with the upper edge of the upper triple clamp.
M01812-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
