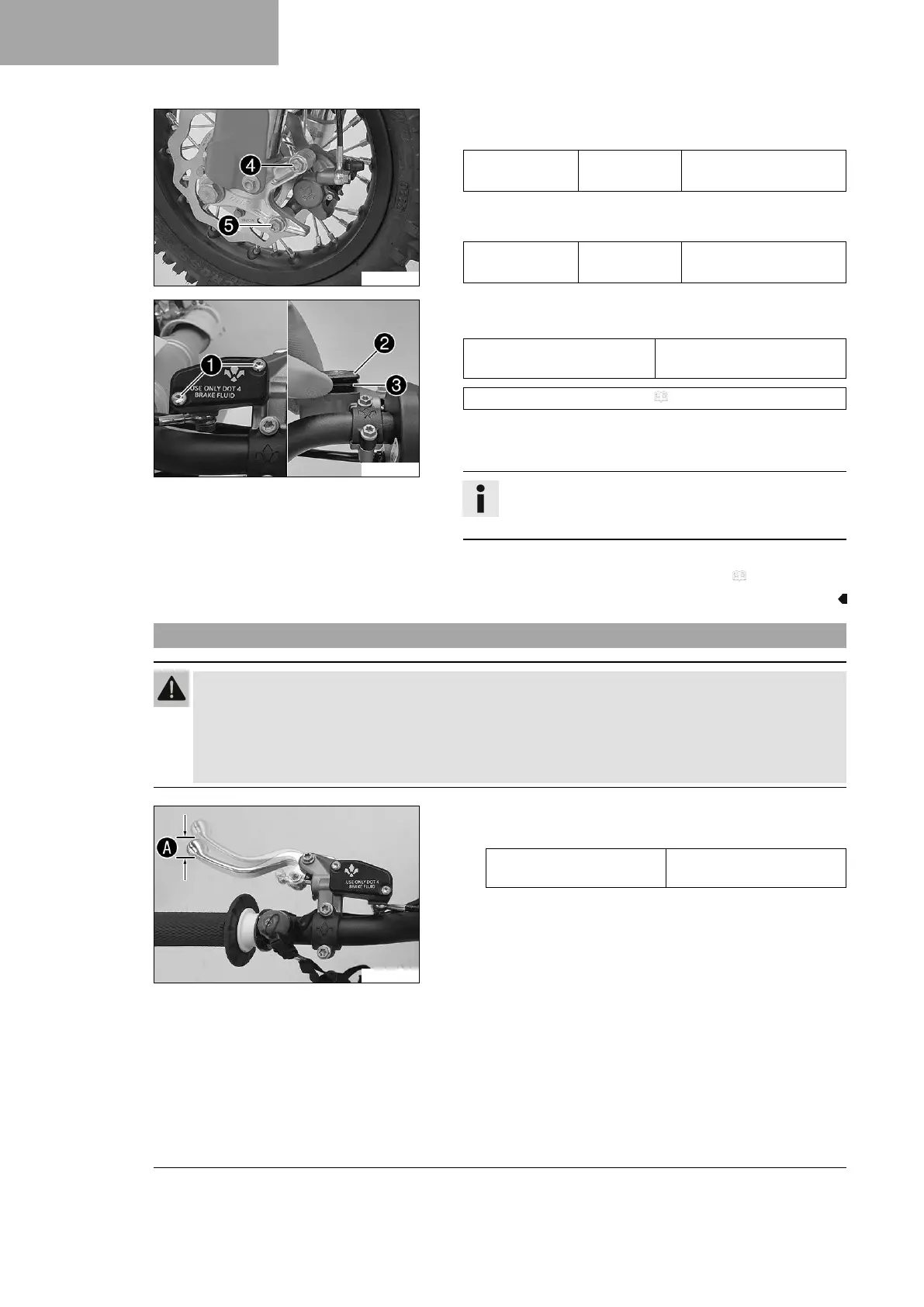

14 BRAKE SYSTEM
72
M02067-10
–
Position the brake caliper, mount screw
4
, and tighten.
Guideline
Screw, front
brake caliper
M8x35 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
5
.
Guideline
Screw, front
brake caliper
M8x35 20 Nm (14.8 lbf ft)
Loctite
®
243™
M02049-10
–
Check the brake fluid level and correct if necessary.
Guideline
Brake fluid level below reser-
voir rim
4 mm (0.16 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 46)
14.8 Checking the free travel of the rear brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the rear brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the rear brake lever in accordance with the specification.
M02056-10
(SX‑E 3)
–
Push the rear brake lever forward and check play
A
.
Play of the rear brake lever 3 … 5 mm (0.12 …
0.2 in)
» If the play does not meet specifications:
– Inspect the brake system for damage and dirt.
