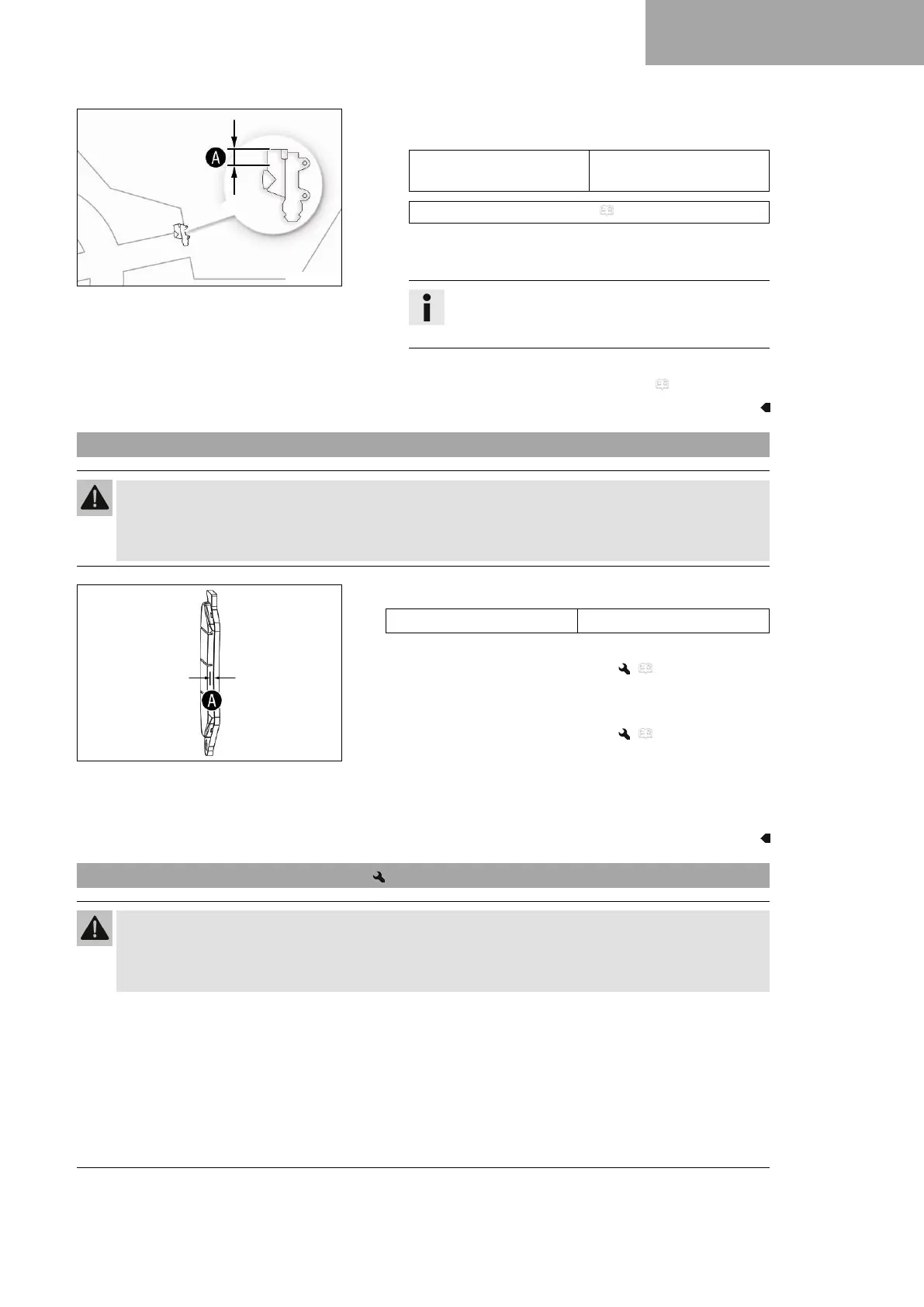

BRAKE SYSTEM 14
77
H01654-10
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
– Position the cover with the membrane.
– Mount and tighten the screws.
Info
Use water to immediately clean up any brake fluid
that has overflowed or spilled.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 46)
14.13 Checking the brake linings and the brake lining retainers of the rear brake
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
M02047-10
–
Check the brake linings for lining thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 77)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
– Change the rear brake linings. ( p. 77)
– Check that the brake linings are secured.
» If the brake linings are not secured correctly:
– Secure brake linings, replace with new parts if neces-
sary.
14.14 Changing the rear brake linings
Warning
Danger of accidents Incorrect servicing will cause the brake system to fail.
– Ensure that service work and repairs are performed professionally. (Your authorized KTM workshop
will be glad to help.)
