KTM SX-E 3 2024 - Checking the Rear Brake Fluid Level

14 BRAKE SYSTEM
74
M02055-11
(SX‑E 3)

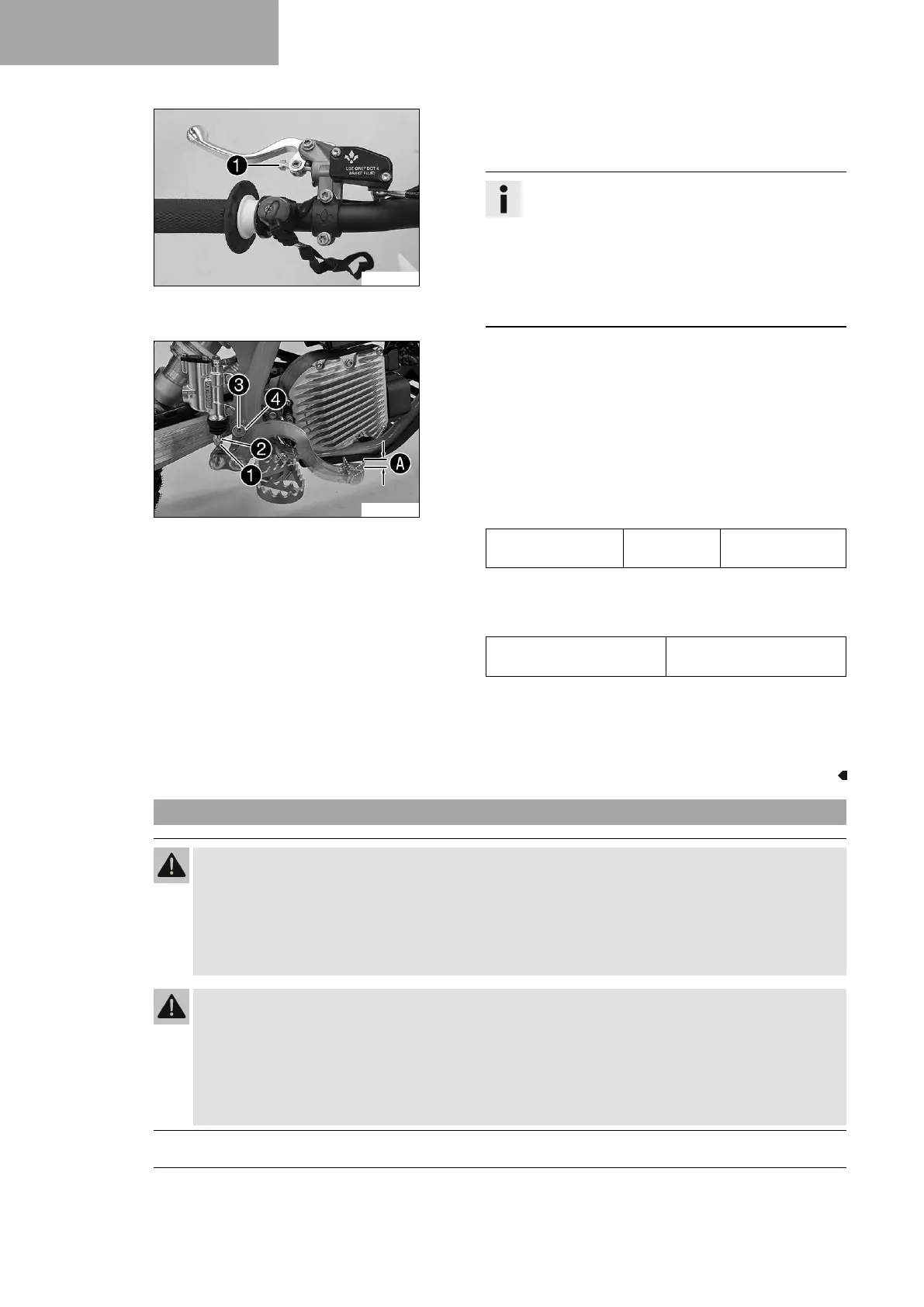

– Adjust the basic position of the rear brake lever with
adjusting screw
1
to the rider's hand size.
Info
Turn the adjusting screw clockwise to increase the
distance between the rear brake lever and the han-
dlebar.
Turn the adjusting screw counterclockwise to
decrease the distance between the rear brake lever
and the handlebar.
The range of adjustment is limited.
M02024-12
(SX‑E 5)
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn back push rod
2
until free travel is at a maximum.
– For an individual adjustment of the basic position of the
foot brake lever, loosen the screw
3
and turn the eccen-
tric brake lever stop
4
accordingly.
–
Tighten screw
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Turn push rod
2
accordingly until you have free
travel
A
.
Guideline
Free travel of foot brake
lever
3 … 5 mm (0.12 …
0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is
suitable for the rider.
14.11 Checking the rear brake fluid level
Warning
Danger of accidents An insufficient brake fluid level will cause the brake system to fail.
If the brake fluid level drops below the specified marking or the specified value, the brake system is
leaking or the brake linings are worn down.
– Check the brake system and ensure that nobody drives the vehicle before the problem is eliminated.
(Your authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Brake fluid which is too old or of the wrong type impairs the function of the brake
system.
– Make sure that brake fluid for the front and rear brake is changed in accordance with the service
schedule. (Your authorized KTM workshop will be glad to help.)
– Make sure that only clean, approved brake fluid from a tightly sealed container is used. (Your autho-
rized KTM workshop will be glad to help.)
