13 SERVICE WORK ON THE CHASSIS
58

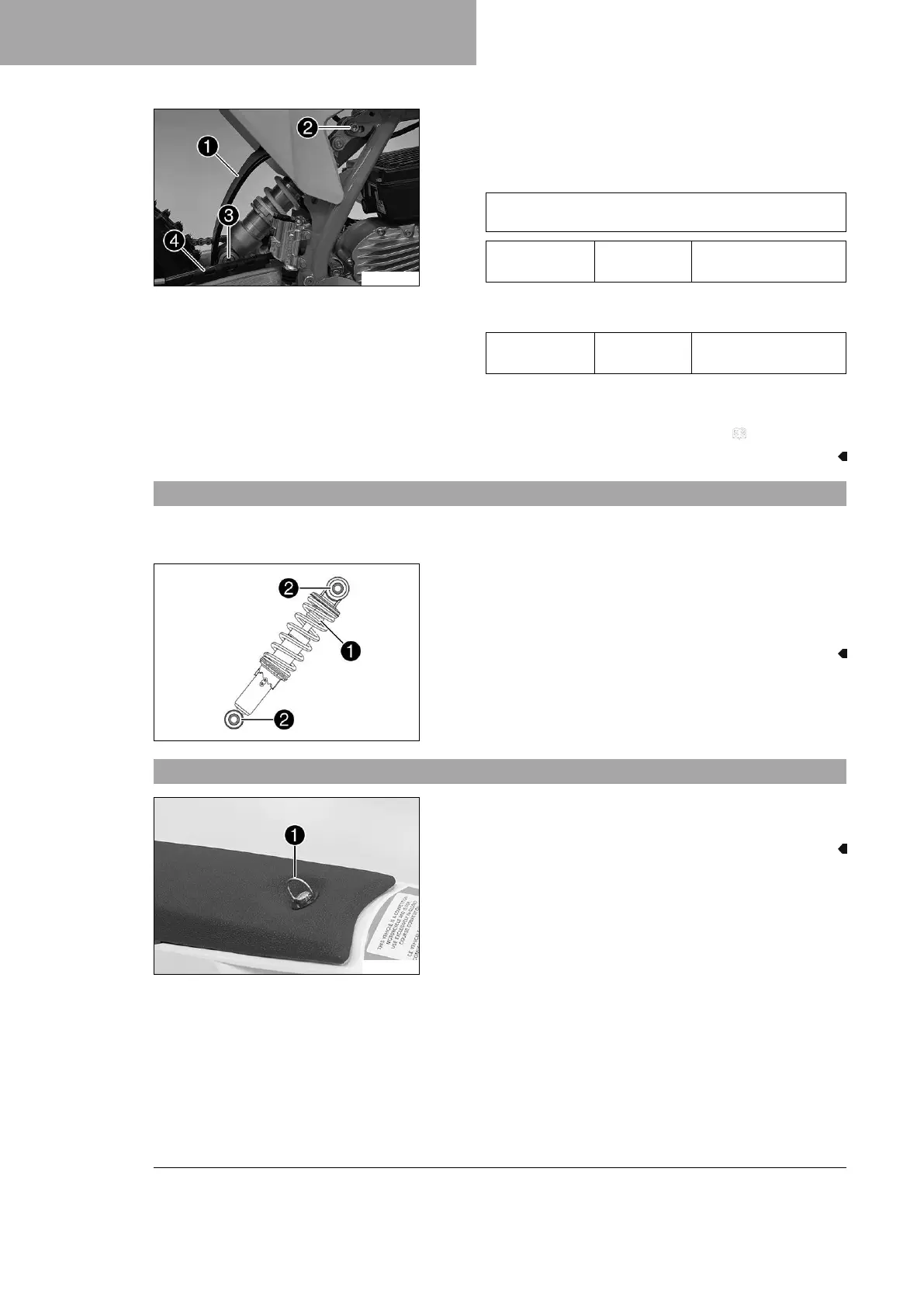

M02022-11
(SX‑E 5)
–
Push splash protector
1
to the side.
–
Mount the shock absorber with screw
2
.
Guideline
If necessary, observe the installation position noted dur-
ing removal.
Screw, top
shock absorber
M10x42 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Lift the link fork, mount screw
3
and tighten it.
Guideline
Screw, bottom
shock absorber
M10x52 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Attach brake line
4
to the holder.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 46)
13.20 Checking the rubber buffer and pivot points of the shock absorber (SX‑E 3)
Condition
The shock absorber is removed.
M02071-10
–
Check rubber buffer
1
and pivot points
2
of the shock
absorber for damage and wear.
» If there is damage or wear:
–
Change shock absorber.
13.21 Removing the seat
H00066-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
