SERVICE WORK ON THE CHASSIS 13
51

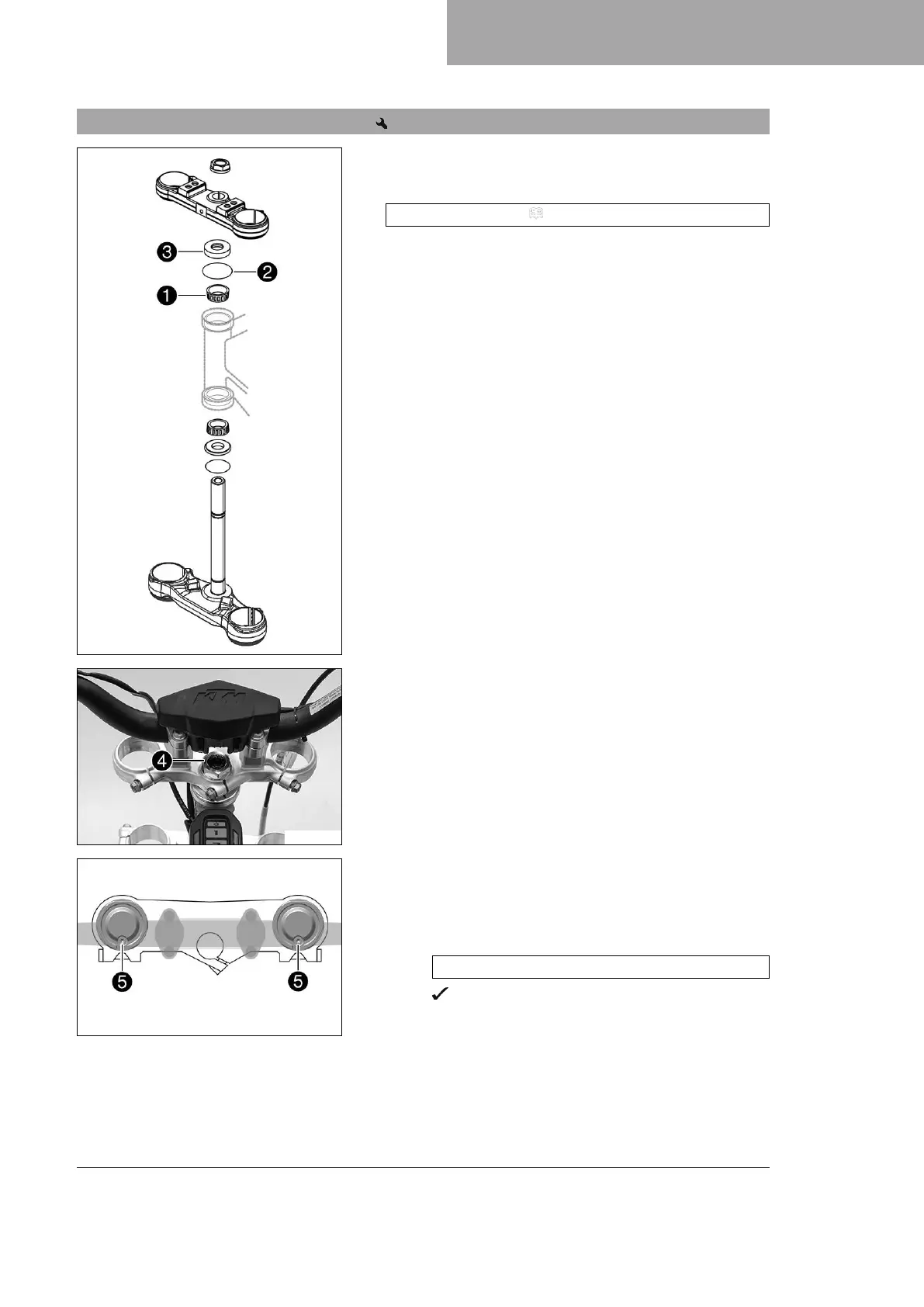

13.10 Installing the lower triple clamp
F02885-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 106)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing
1
.
–
Check that the O-ring at the top
2
is correctly positioned.
–
Push on protective ring
3
.
M01667-11
– Position the upper triple clamp and handlebar.
–
Mount nut
4
, but do not tighten yet.
M02044-11
Condition
Individual installation position
(SX‑E 3)
–
Position the fork legs.
Guideline
Observe the position determined during removal.
Bleeder screws
5
are positioned toward the rear.
