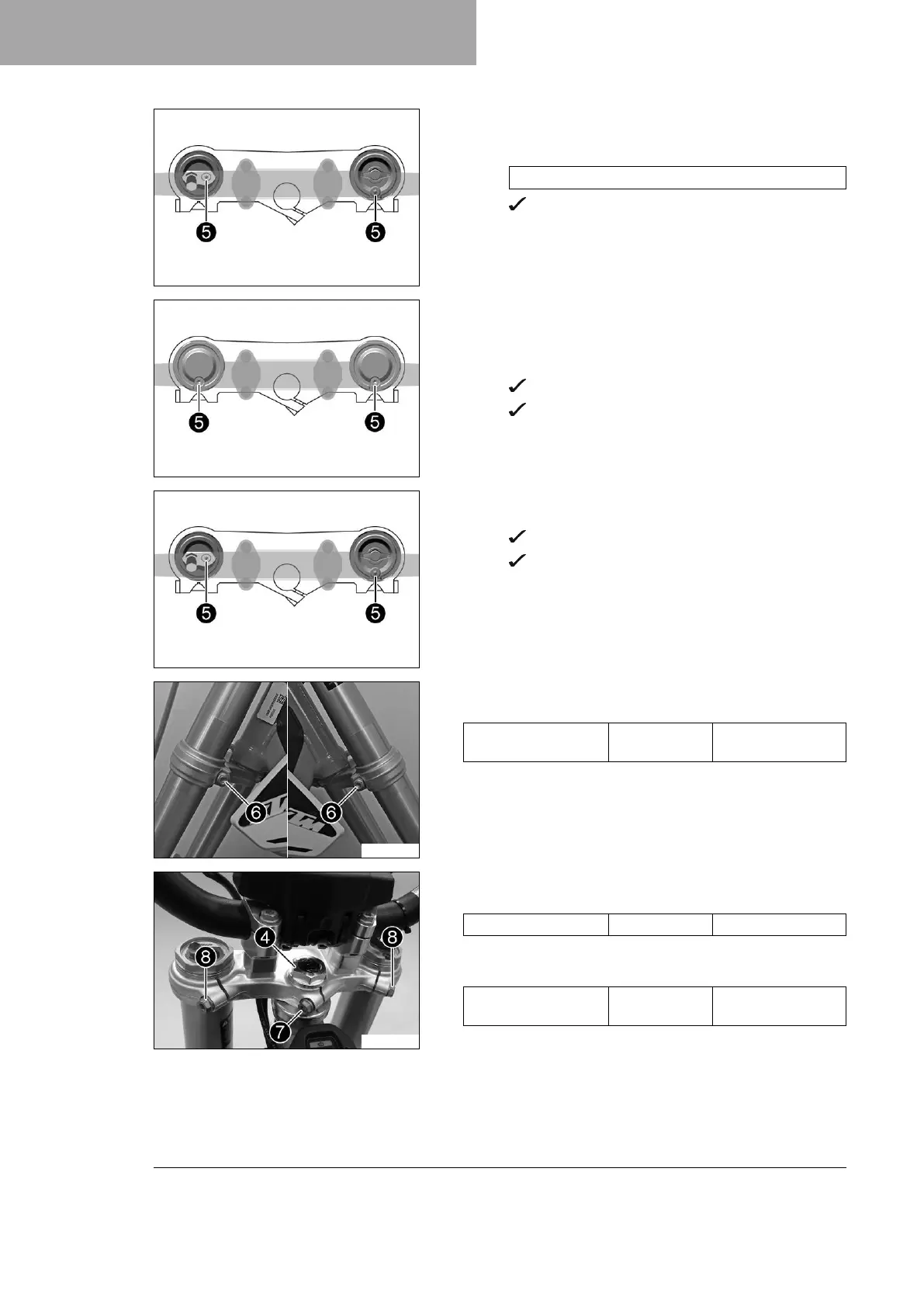

13 SERVICE WORK ON THE CHASSIS
52
F02179-11
(SX‑E 5)
– Position the fork legs.
Guideline
Observe the position determined during removal.
Bleeder screws
5
are positioned toward the rear.
M02044-11
Condition
Standard installation position
(SX‑E 3)
– Position the fork legs.
Bleeder screws
5
are positioned toward the rear.
The second milled groove (from the top) is flush
with the upper edge of the upper triple clamp.
F02179-11
(SX‑E 5)
– Position the fork legs.
Bleeder screws
5
are positioned toward the rear.
The second milled groove (from the top) is flush
with the upper edge of the upper triple clamp.
M01813-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
M01670-10
–
Tighten nut
4
.
Guideline
Nut, steering head M20x1.5 10 Nm (7.4 lbf ft)
–
Tighten screw
7
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
8
.
