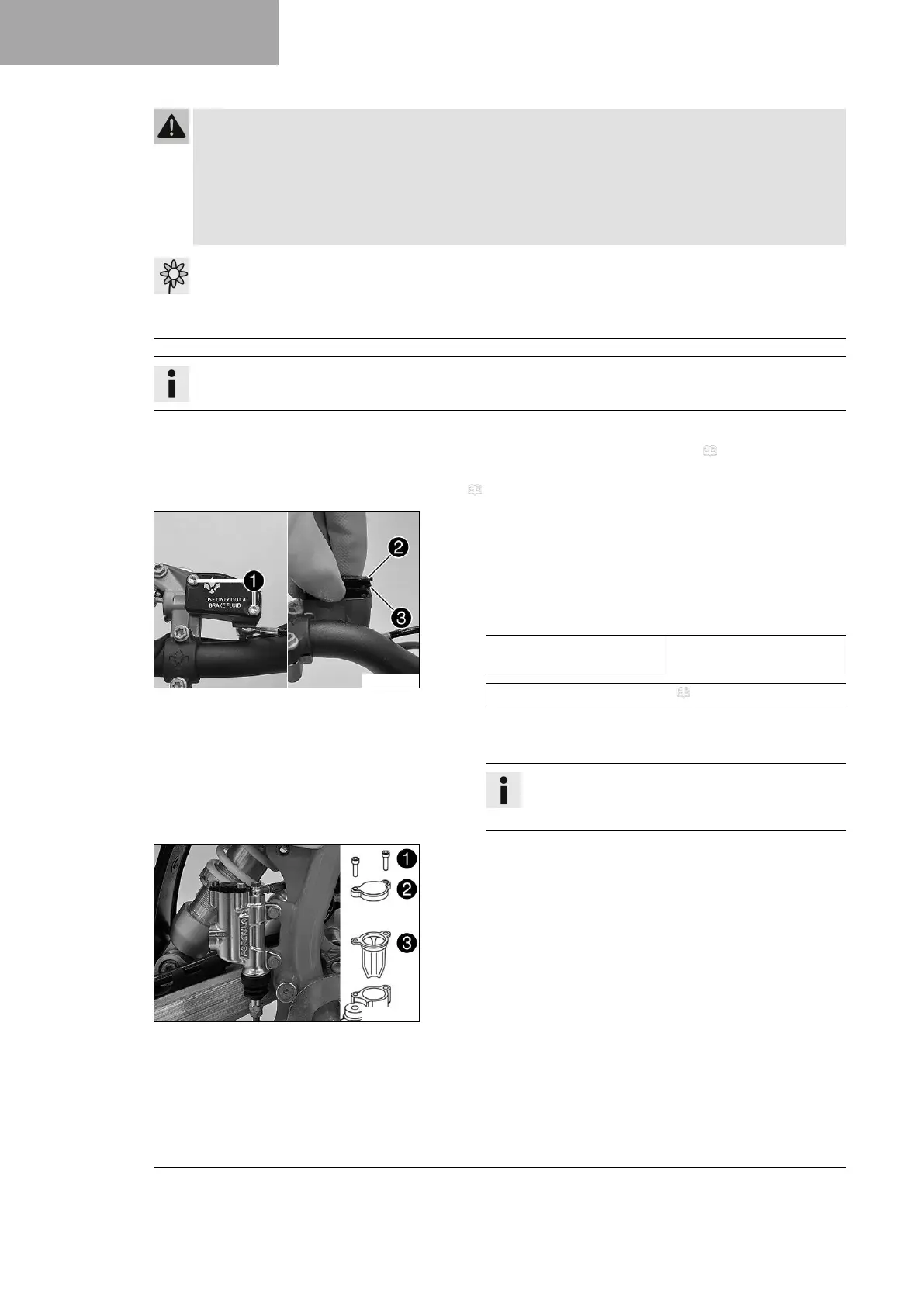

14 BRAKE SYSTEM
76
Warning
Danger of accidents Brake fluid which is too old or of the wrong type impairs the function of the brake
system.
– Make sure that brake fluid for the front and rear brake is changed in accordance with the service
schedule. (Your authorized KTM workshop will be glad to help.)
– Make sure that only clean, approved brake fluid from a tightly sealed container is used. (Your autho-
rized KTM workshop will be glad to help.)
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, cleaning agents, brake fluid etc. properly and in compliance with the applica-
ble regulations.
Info
Avoid contact between brake fluid and painted parts. Brake fluid corrodes paint.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 46)
– Check that the brake linings of the rear brake are secured.
( p. 77)
M02057-10
Main work
(SX‑E 3)
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
– Correct the brake fluid level.
Guideline
Brake fluid level below
reservoir rim
4 mm (0.16 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
– Position the cover with the membrane.
– Mount and tighten the screws.
Info
Use water to immediately clean up any brake fluid
that has overflowed or spilled.
M02025-13
(SX‑E 5)
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
