23
DEUTSCH
[9]VERBINDUNG, BAUGRUPPE HUBARM
BTEILELISTE
BMONTAGE DER VERBINDUNG, HUBARM

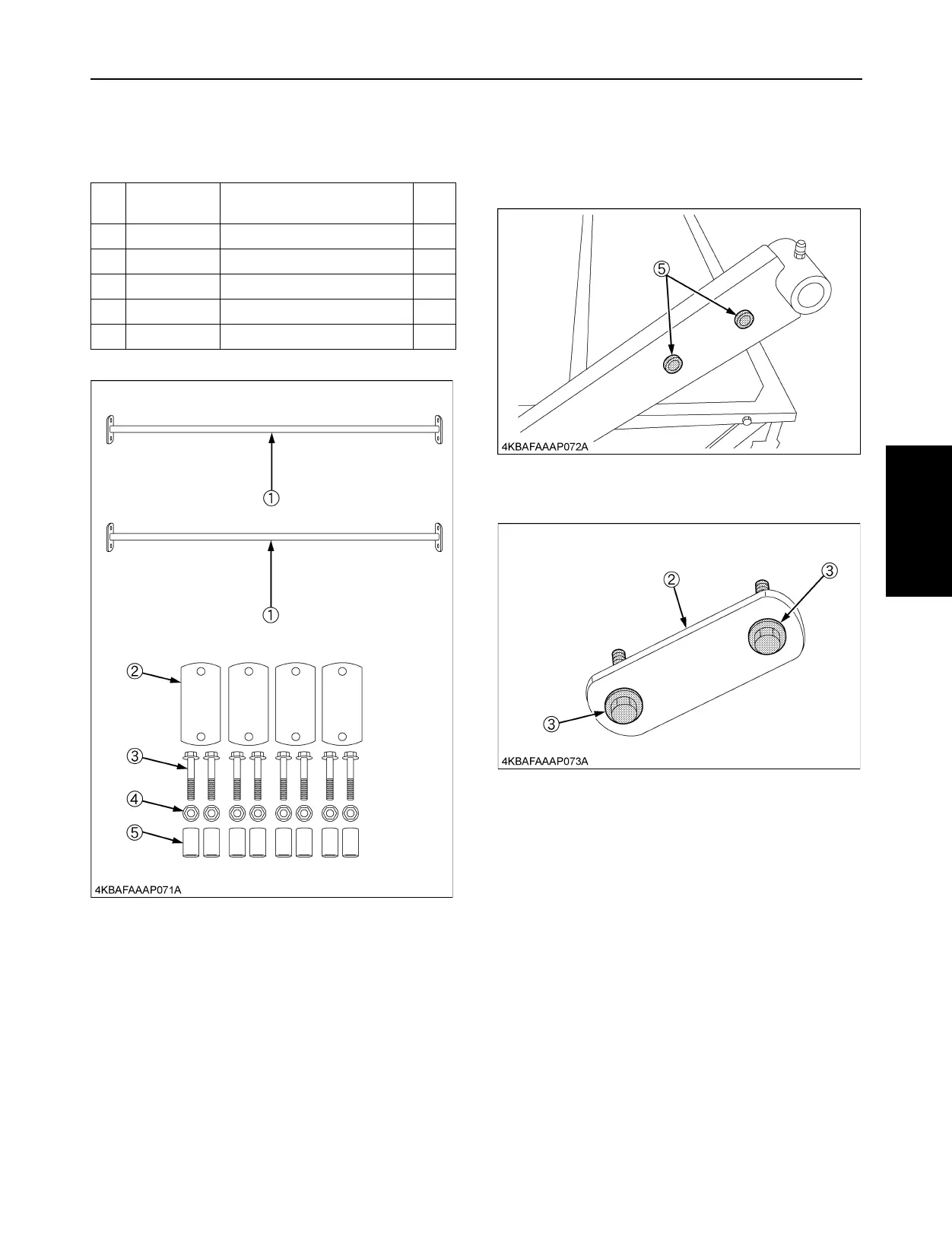

1. Positionieren Sie den Verbindungshülse (5) in die
Enden der oberen und unteren Hubarme.
2. Setzen Sie die Flanschschrauben (3) in die 4
Hubarmöffnungen (2).
Nr.
Bauteil
Nummer
BESCHREIBUNG ANZ.
(1) K6313-6429-2 HUBARMVERBINDUNG 2
(2) K6313-6428-0 HUBARMÖFFNUNG 4
(3) 01754-50840 FLANSCHSCHRAUBEN 8
(4) 02751-50080 FLANSCHMUTTERN 8
(5) K6313-6427-0 VERBINDUNGSHÜLSE 8
