4
ENGLISH

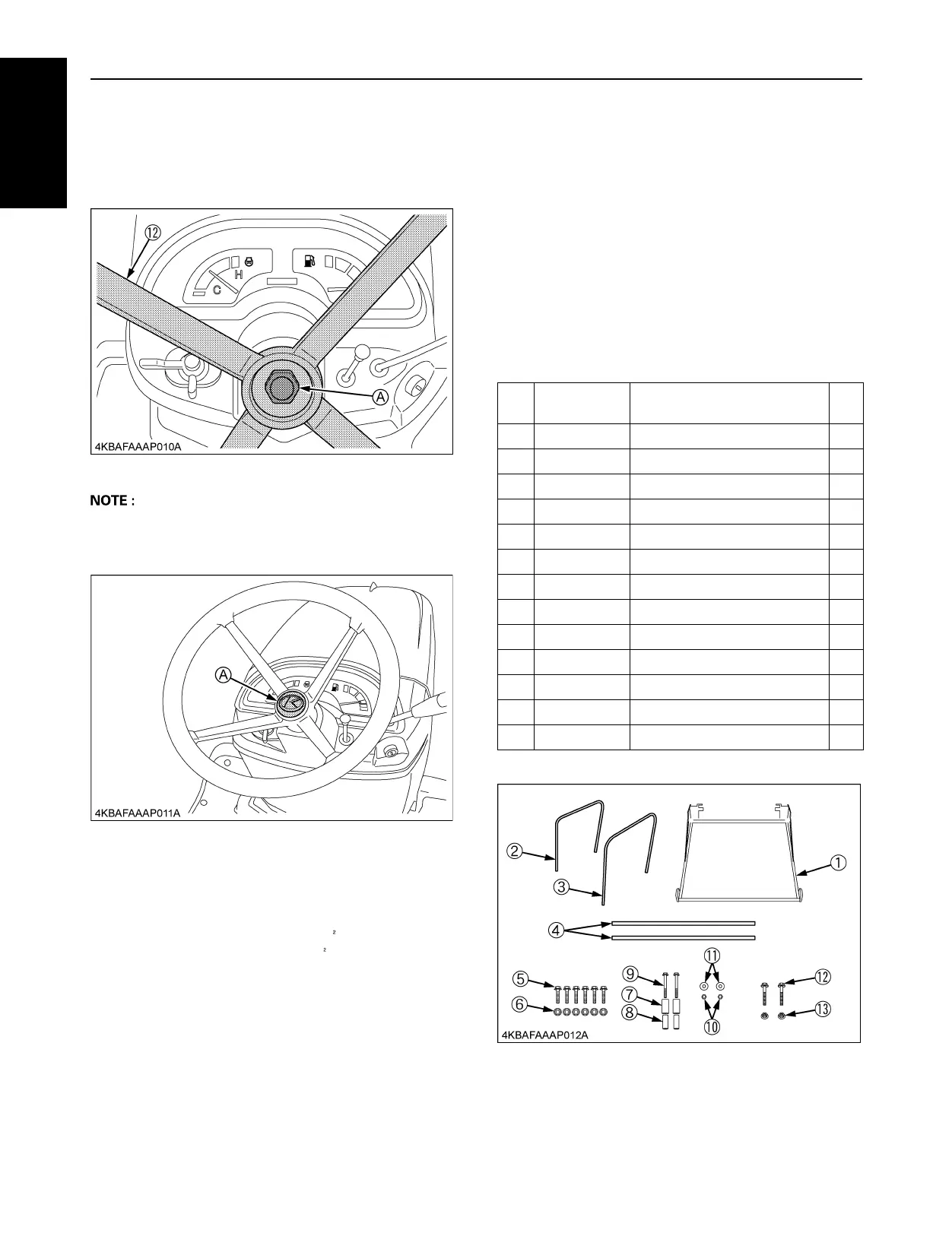

BINSTALL THE STEERING WHEEL
1. Insert the steering wheel.
2. Fasten the nut.
A Tightening torque: 20.0 to 25.0 N-m
(2.0 to 2.5 kgf-m)
3. Attach the cap.
SERVICE THE FRONT AND REAR
WHEELS
1. Check the tire inflation pressure.
FRONT TIRE: 120kPa (1.2 kgf/cm )
REAR TIRE: 100kPa (1.0 kgf/cm )
SETTING UP THE MOWER
1. Remove all mower components from the crate.
2. Attach the front and rear anti-scalp rollers to the
bracket of the deck with clevis pins and snap rings by
referring to the operator's manual.
INSTALL THE MOWER
1. Attach the mower by referring to the operator's
manual.
ASSEMBLE THE GRASS CATCHER
CONTAINER
Check the component parts respectively with the following
PARTS LISTS.
1. Check them carefully for shipping damage.
2. Check the loose parts and the hardware package
against the PARTS LIST.
<Low Dump>
[1]FRAME ASSEMBLY
BPARTS LIST
(A) Nut
(A) Cap
Ref.
No.
Part Number Description Qty
(1) K6312-6342-5 FRAME, BAG FRONT 1
(2) K6312-6352-0 FRAME, BAG LH 1
(3) K6312-6353-0 FRAME, BAG RH 1
(4) K6312-6359-0 ROD, BAG 2
(5) 01754-50825 BOLT, FLANGE 6
(6) 02751-50080 NUT, FLANGE 6
(7) K6312-6424-2 COLLAR, LOCK 2
(8) K6312-6426-2 COLLAR, LOCK2 2
(9) 01754-50865 BOLT, FLANGE 2
(10) 02552-50080 NUT, LOCKING 2
(11) 04015-50080 WASHER, PLAIN 2
(12) 01754-50635 BOLT, FLANGE 2
(13) 02751-50060 NUT, FLANGE 2
To Next Page
