Kubota G23 Assembly Instructions

15
ENGLISH

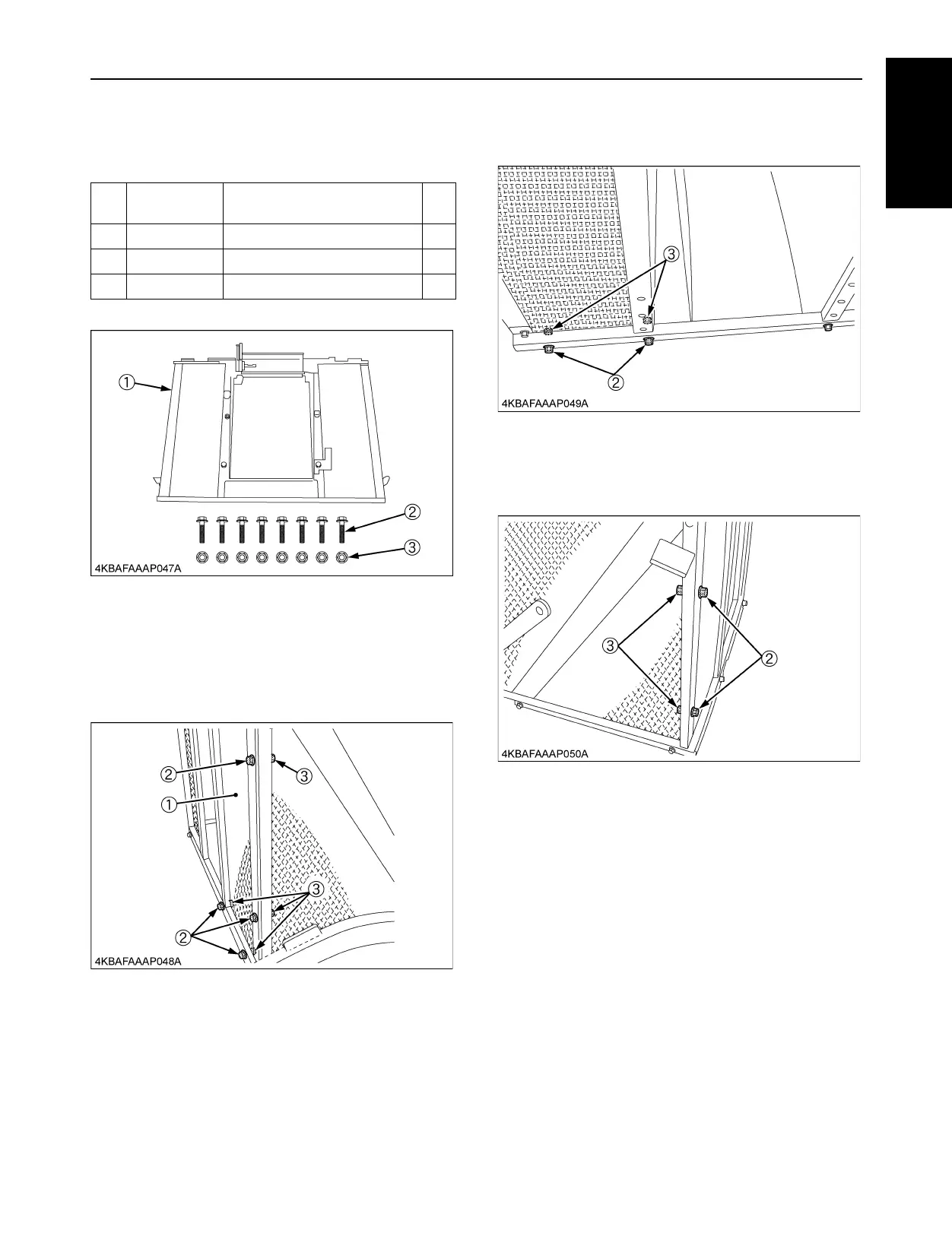

[4]FRAME, BAG FRONT ASSY
BPARTS LIST
BASSEMBLE THE FRAME, BAG FRONT
1. Place the front bag frame (1) to the front of the base
and hold the LH side by placing four bolts (2) from the
outside of the frame. Then secure it with four flange
nuts (3).
2. Secure the bottom RH side of the front bag frame (1)
with two flange bolts (2) and two flange nuts (3).
3. Place two flange bolts (2) into the RH side of the front
bag frame (1).
Place two flange nuts (3) onto two bolts (2) but do not
tighten them.
Ref.
No.
Part Number Description Qty
(1) K6313-6342-2 FRAME, BAG FRONT 1
(2) 01754-50835 BOLT, FLANGE 8
(3) 02751-50080 NUT, FLANGE 8
