14
ENGLISH

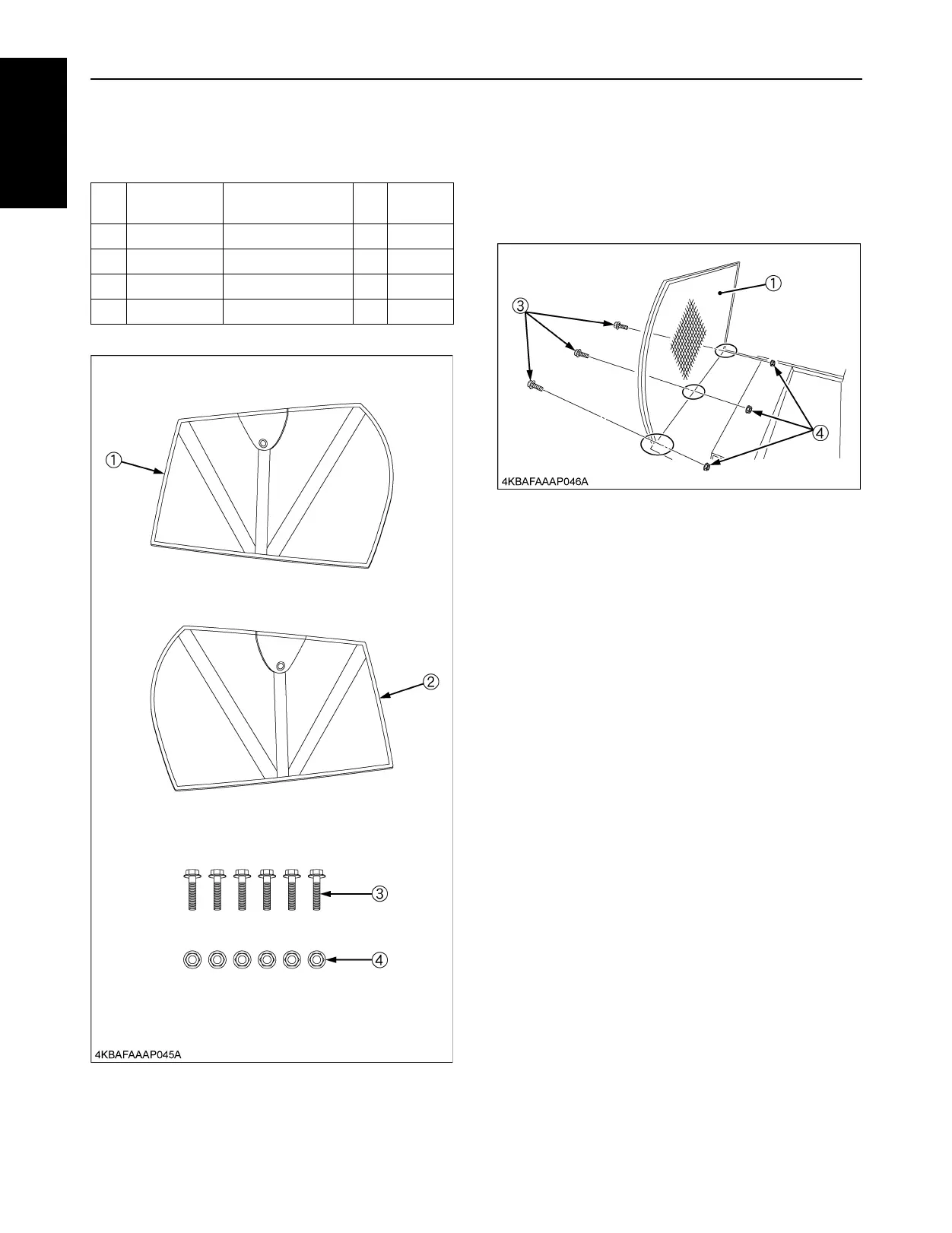

[3]FRAME, BAG LH AND RH ASSEMBLY
BPARTS LIST
BASSEMBLE THE FRAME, BAG LH AND RH
1. Place the bag frame LH (1) to the inside of the base
and hold it by placing three flange bolts (3) into the
frame. Then secure it with three flange nuts (4).
Do the same for the bag frame RH (2).
Ref.
No.
Part Number Description Qty Remarks
(1) K6313-6352-2 FRAME, BAG LH 1
(2) K6313-6353-2 FRAME, BAG RH 1
(3) 01754-50835 BOLT, FLANGE 6
(4) 02751-50080 NUT, FLANGE 6
