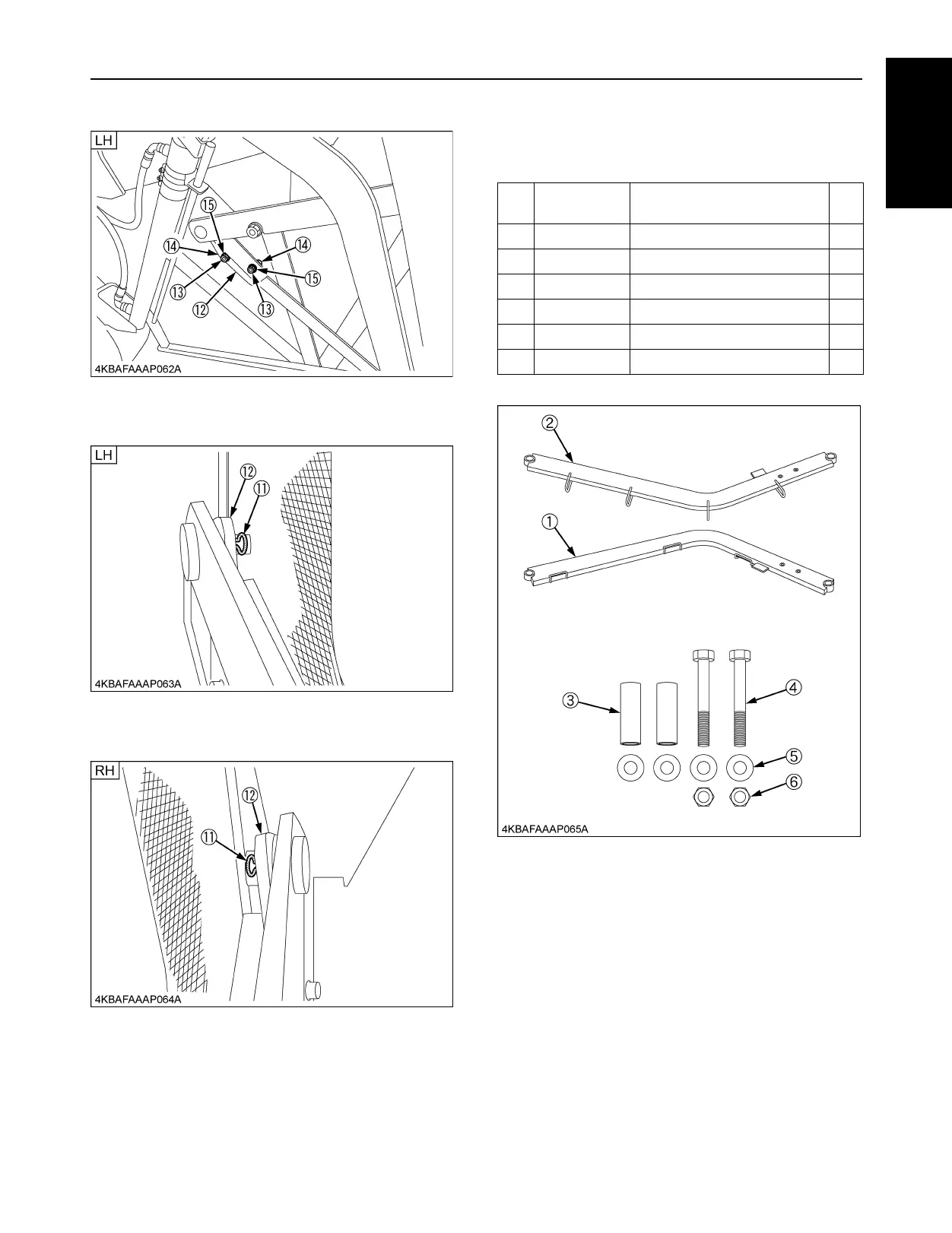

Page #21 background imageLoading...
Page #21 background image
19
ENGLISH
9. Secure the upper link plate (12) to the rear arm LH with
the snap pin (11).
10.Secure the upper link plate (12) to the rear arm RH
with the snap pin (11).
[7]LIFT ARM, UPPER LH AND RH ASSY
BPARTS LIST
Ref.
No.
Part Number Description Qty
(1) K6313-6437-4 LIFT ARM, UPPER RH 1
(2) K6313-6436-5 LIFT ARM, UPPER LH 1
(3) K6313-6432-0 COLLAR, LINK 2
(4) 01173-51290 HEX, BOLT 2
(5) 04013-50120 WASHER, PLAIN 4
(6) 02572-50120 NUT, LOCKING 2
