ENGLISH
INSTALLATION OF THE TIRES, SEAT AND
STEERING WHEEL
BPARTS LIST
Note* They are packed together only when it is necessary
to adjust washers.
1. Check the component parts
(1) Check carefully for shipping damage.
(2) Check the loose parts and the hardware package
against the PARTS LIST.

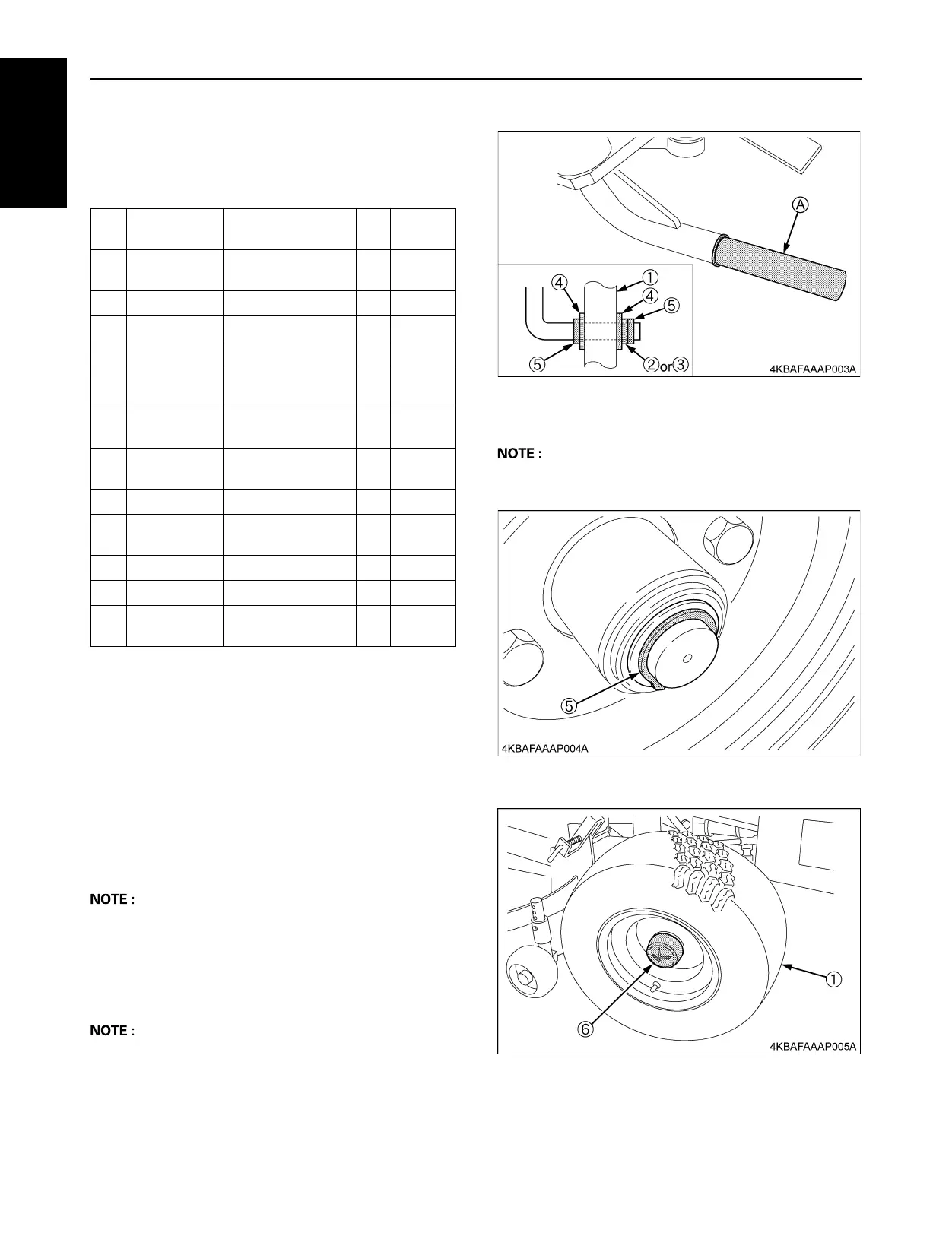

BINSTALL THE FRONT TIRES
1. Apply grease.
2. Insert the circlip (5).
A Attach the circlip so that the edge side would face
outward, not inward (the tire side).
3. Insert a washer (4).
4. Mount the tire (1).
5. Insert washers (4), (2) or (3) as shown in the figure.
A When the washer 1 (2) or 2 (3) are enclosed, install
them surely as shown in the figure.
6. Attach the circlip.
A Attach the circlip so that the edge side would face
outward, not inward (the tire side).
7. Attach the wheel cap.
Ref.
No.
Part Number Description Qty Remarks
(1) K2063-1810-0
TIRE, ASSY
TE16 x 7.5 - 8
2 Front tire
(2) K1142-1124-0 WASHER, 1 2 t0.6, *
(3) K1142-1125-0 WASHER, 2 2 t1.2, *
(4) K1142-1126-0 WASHER, 3 4 t1.9
(5) 04612-00250
CIR-CLIP,
EXTERNAL
4
(6) K1142-1578-0
CAP WHEEL
FRONT
2
(7) K2511-1710-2
TIRE, ASSY
T24 x 12 - 12
2 Rear tire
(8) K2561-1721-0 BOLT, WHEEL 1/2 6
(9) K3181-1722-0
NUT, TAPER (1/2-
60)
4
(10) - SEAT, ASSEMBLY 1
(11) K2063-5678-0 SPRING, SEAT 2
(12) K1122-4111-3
ASSY,
WHEEL STEERING
1
(A) Location of grease application
To Next Page
