10
ENGLISH

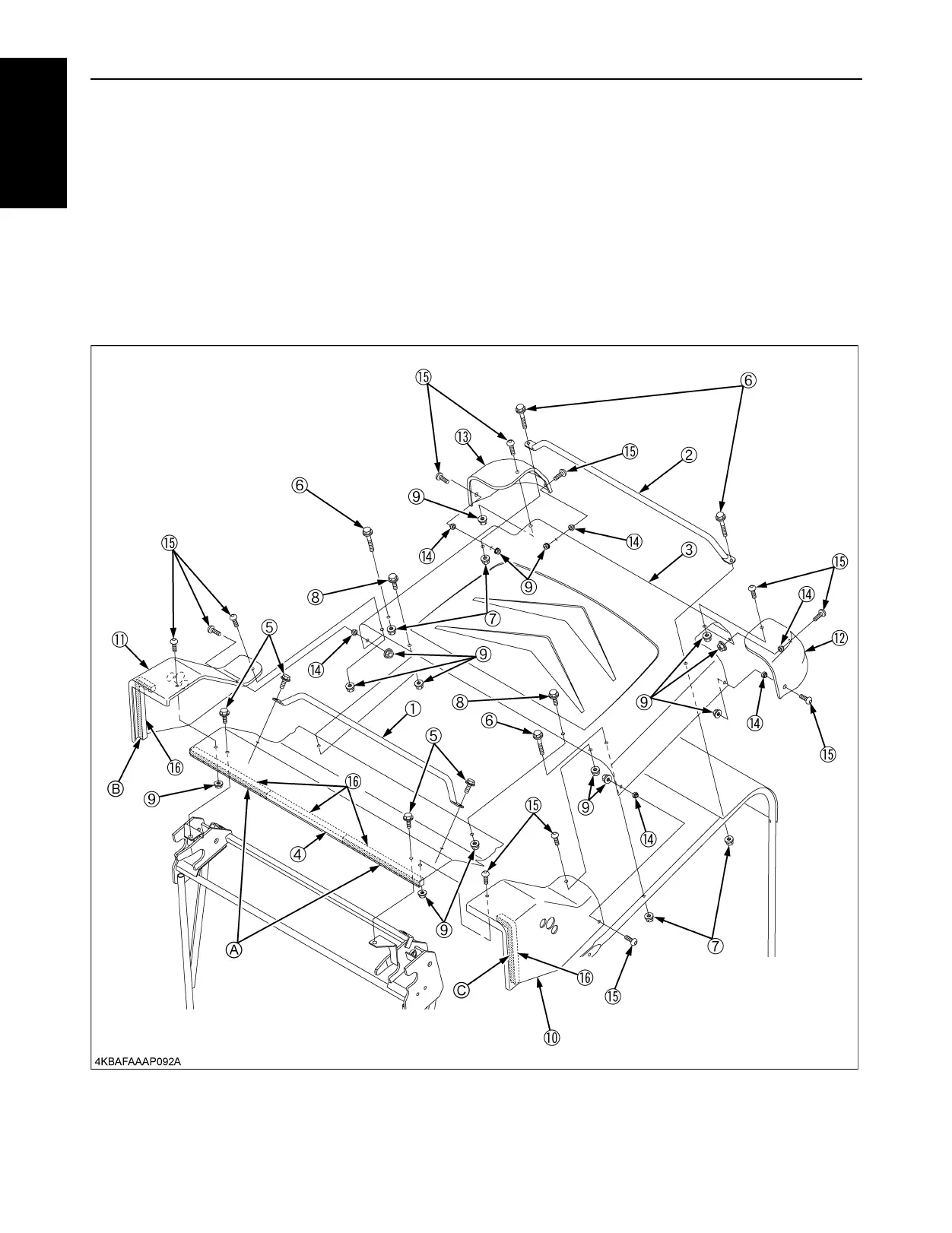

BASSEMBLE THE COVERS
1. Place the rear center cover 2 (4) and the front handle (1) to the front top of the grass catcher, and then secure them
(4)(1) with 4 flange bolts (5) as shown in the figure.
2. Place the rear center cover (3) and the rear handle (2) to the rear top of the grass catcher, and then secure them (3)(2)
with four flange bolts (6) and four flange nuts (7) as shown in the figure.
3. Secure the rear center cover 2 (4) and the rear center cover (3) with two flange bolts (8) and two flange nuts (9) as
shown in the figure.
4. Place the front left cover (10), the front right cover (11), the rear left cover (12), the rear right cover (13) and the collar
(14) on the rear center cover 2 (4) and the rear center cover (3), and then secure them with twelve button screws (15)
and twelve flange nuts (9) as shown in the figure.
5. Adhere the five sponges (16) to the rear center cover 2 (4) and the front covers (10) (11) as shown in the figure.
Make sure that the surface (B) and (C) of the sponges (16) are align with the surface (A) respectively.
(A) Surface of the sponge
(B) Surface of the sponge
(C) Surface of the sponge
To Next Page
