Kubota G23 Assembly Instructions

6
ENGLISH
BASSEMBLE THE BAG

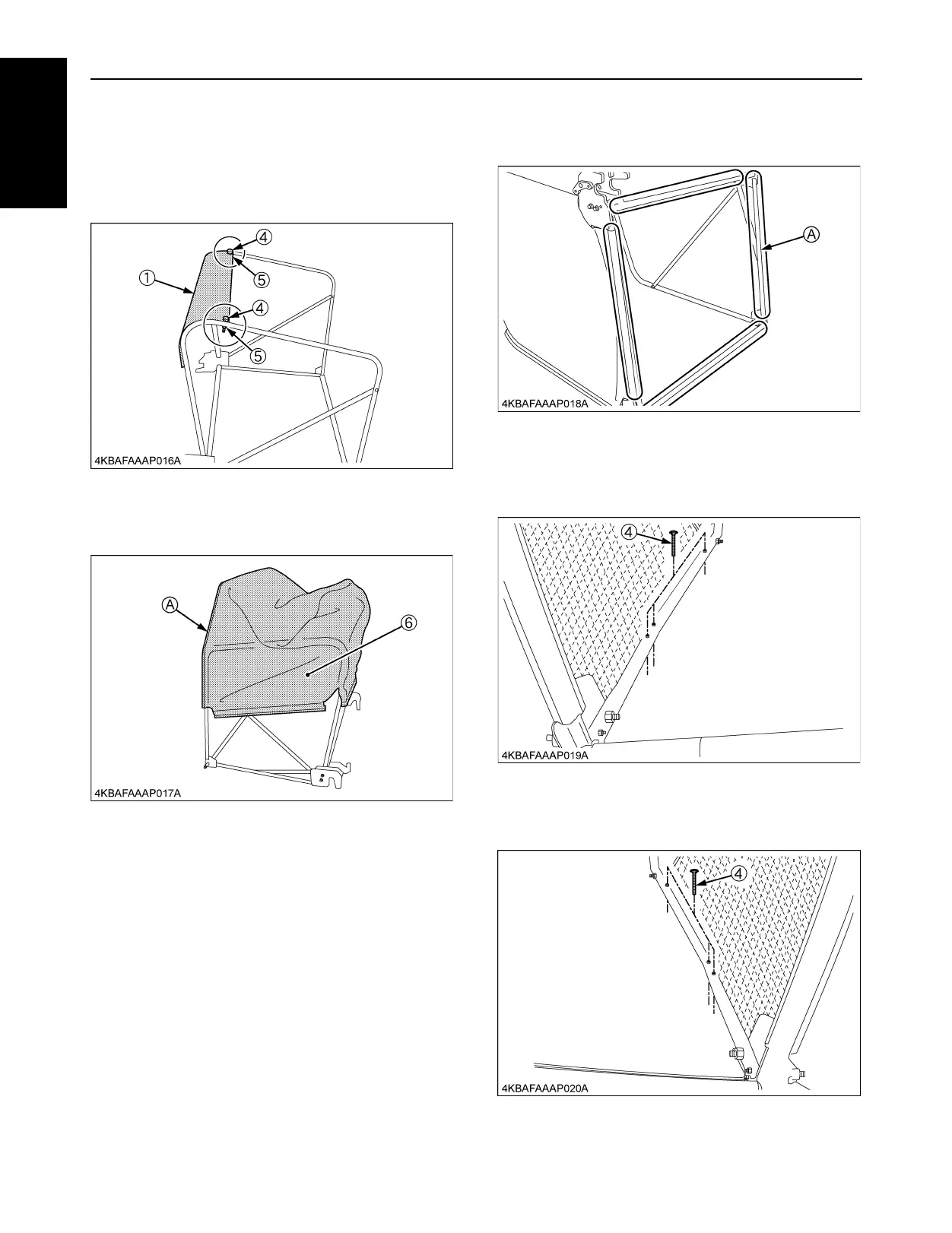

1. Place the upper corner plate (1) in the correct direction
to the bag frame LH & RH, and secure the only side
indicated in the figure with two square neck bolts (4)
and secure bolts (4) with two nuts (5).
2. Place the bag net (6) over the frame while paying
attention to the flat side for the correct setting (bottom
side).
3. Pull each side of the bag net (6) over the front bag
frame as shown in the figure.
4. Place three square neck bolts (4) into the frame on the
left hand side of the bag frame and into the bottom of
the bag net (6).
5. Place three square neck bolts (4) into the frame on the
right hand side of the bag frame and into the bottom of
the bag net (6).
(A) FLAT
(A) Front bag frame

Kubota G23 Specifications

General

Engine Power	23 HP
Transmission	Hydrostatic
Cutting Width	48 inches
Fuel Type	Diesel
Drive	2WD
Number of Blades	3
Engine Type	Diesel
Fuel Capacity	6.3 gallons
