5.9 GyroTrac Field
Replaceable Units
GyroTrac has been designed with durability and low
maintenance in mind. If you are experiencing an operating
problem or otherwise require technical assistance, please contact
your local KVH dealer or distributor. Have the GyroTrac serial
number ready with a list of the trouble symptoms. If an
authorized dealer or distributor is not located nearby, contact
KVH directly at the telephone, facsimile, or e-mail listings on the
first page of this manual.
Replacement part numbers for components that can be serviced
in the field are listed in Table 5-2. These parts may be obtained
from any KVH-authorized dealer/installer or may be ordered
directly from KVH.
FRU KVH Part No.
Sensor Module 02-1154
ADCU 02-0961
Flush Mount ADCU Panel 20-0667
Horizontal Sensor Bracket 20-0658
Vertical Sensor Bracket 20-0666
Terminal Strip Connectors 23-0223-12
Sensor to ADCU Data Cable 32-0623-30
ADCU PCB Fuse, 4-amp 16-0017-4000

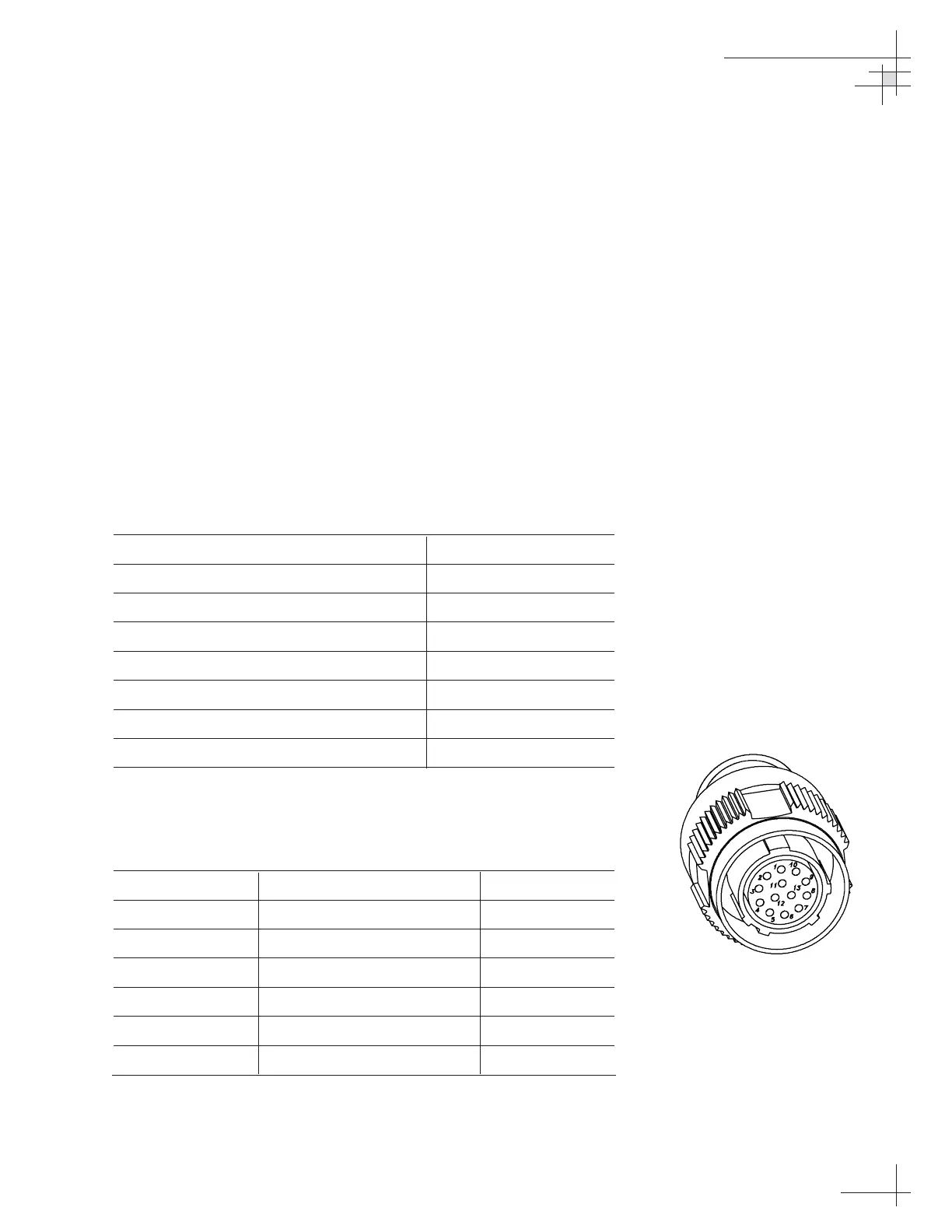

Figure 5-13 and Table 5-3 provide the pin assignments for the
Sensor to ADCU Data Cable (Part Number 32-0623-30).
Connector Terminal Wire Color Function
1 Wht/Blu Stripe FE_TXD+
2 Blu/Wht Stripe FE_TXD-
3 Wht/Org Stripe FE_RXD-
4 Org/Wht Stripe FE_RXD+
10 Wht/Grn Stripe GND
11 Grn/Wht Stripe +12V
Shell Shield ---
Maintenance
54-0161
121
Table 5-2
GyroTrac Field Replaceable Units
Table 5-3
Data Cable Wiring/Terminal
Assignments
Figure 5-13
Data Cable Terminal Arrangement
