Manually Controlling the Antenna
In certain circumstances, you may need to control the azimuth,
elevation, and tracking of the TracVision G6 antenna manually,
using the process shown in Figure 3-28. Use the + and - keys to
manually move the dish. Azimuth measurements are reported as
relative to the bearing of the vessel’s bow.
54-0161
84
TracVision G6 Technical Manual
Proceed to "Restarting the
Antenna"
ALERT SCREENS
Man control antenna?
Enter Next Return
AZ = XXX.X° EL = XX.X°
- Azimuth +
AZ = XXX.X° EL = XX.X°
- Elevation +
Make antenna track?
Yes No Cancel
Finding limit switch
Please wait
This screen may appear under
certain conditions in antenna
software revision H or later.
YES tells the antenna to begin
actively tracking the set azimuth
and elevation. NO leaves the
antenna halted in its current
position.

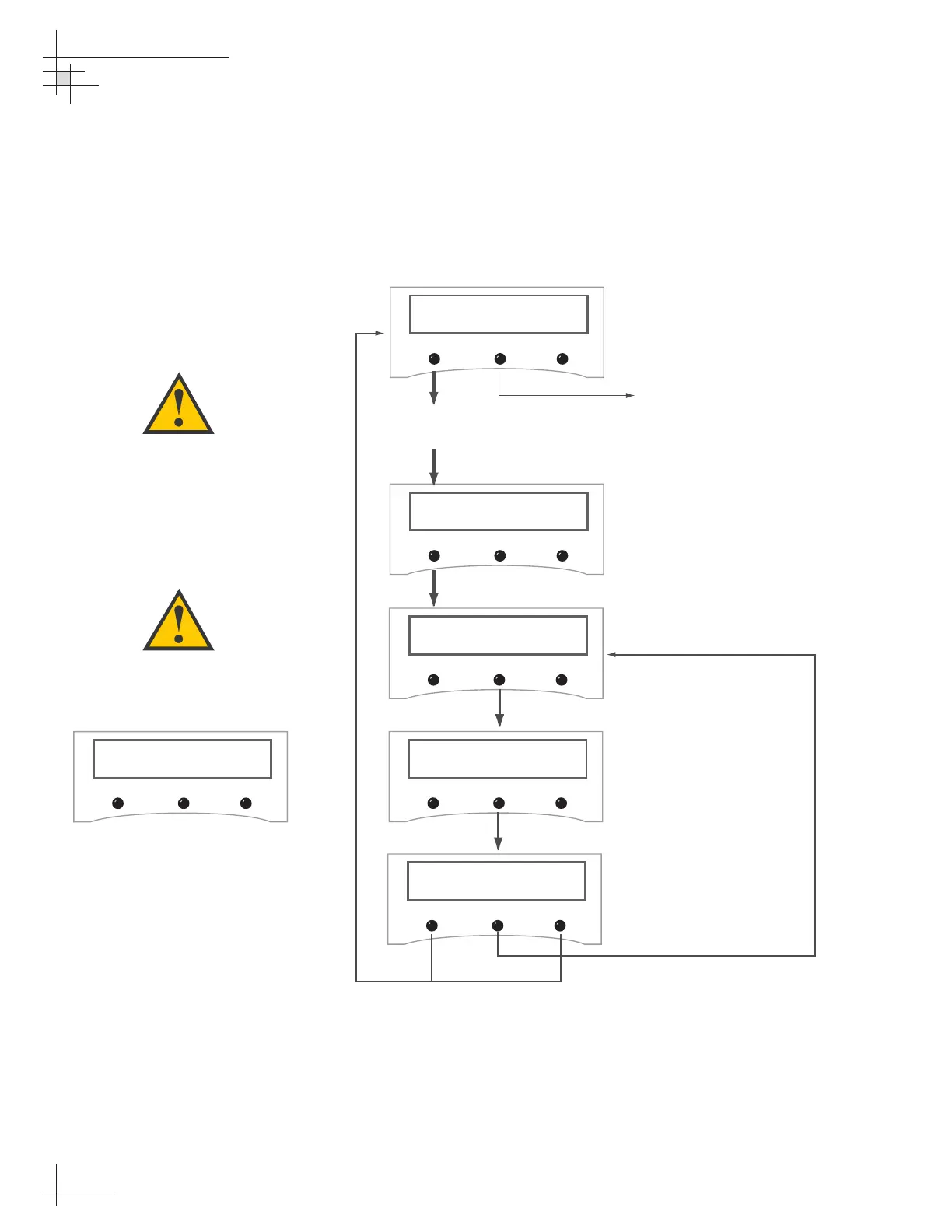

Figure 3-28
Manual Antenna
Control Procedure
If the manual adjustment of the
antenna reached the maximum
rotation (720°), the antenna will
rotate 360° and return to the
Manual Control Antenna screens.
InstantOn Reboot
Please wait
If the system started up in Instant
On mode, the following message
may be displayed:
To Next Page
Loading...
