Setting the Serial Outputs
The GyroTrac can output as many as three serial messages
simultaneously in any combination of NMEA version 2.2,
KVH RS-422, or Cetrek proprietary format. NMEA message
options and the KVH and Cetrek formats are described briefly in
Appendix F on page 147. Follow the procedures illustrated below
to set the serial outputs. The factory default speed setting is
10 Hz.
54-0161
72
TracVision G6 Technical Manual
Select serial port 1
Yes Next Cancel
Set serial outputs?
Yes Next Return
Set speed: 10 Hz
- Enter +
Resetting outputs?
Yes No
Outputs erasing
Please Wait
Select output type
NMEA KVH Cetrek
Proceed to "Setting the
Furuno Output"
Opens menus for Serial Ports 2 & 3.
All three serial ports have the same
selection options. However, the output
from Port 1 is only 4800 baud.
Proceed to
"Setting the
NMEA Outputs"
No Port 3. TV setup
Yes Next Cancel
If GyroTrac is configured as a
component of a TracVision system,
the following screen will appear when
attempting to configure Serial Port 3:
No Action
Return to "Select Serial Port 1"
Return to
"Set Serial Outputs?"
Serial port 1 config
Output Data: NMEA
Serial Port setting information will be
displayed for 2.5 seconds. Setting can be:
None, NMEA, KVH, or Cetrek
Cetrek data is: Mag
Mag ENTER True
This screen will only
appear if GPS is available
to provide True North
Data, otherwise the
default is "Mag."
Refer to
"Selecting TracVision or
GyroTrac-only Operations"
to
configure the system as GyroTrac-
only and activate Serial Port 3.

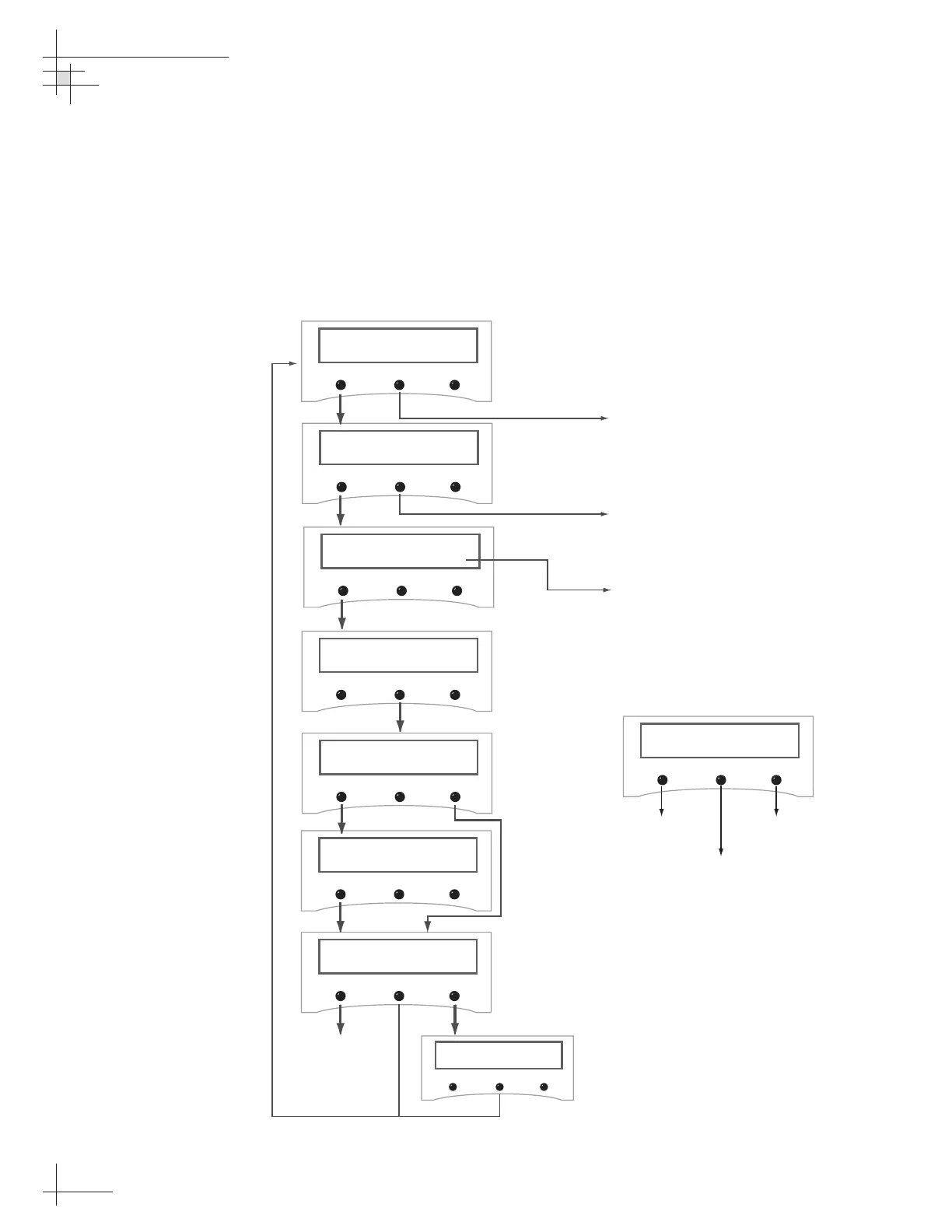

Figure 3-12
Setting Serial Outputs
To Next Page
