12 1110987612543 13 14 232221201918 24171615 25 26 353433323130 36292827
48 47 383940414243 3744454660 59 505152535455 49565758
Ground
+12VDC
Ship’s
Power
(11-16 VDC)
Green/white
White/Green
White/Blue
Blue/White
White/Orange
Orange/White
GyroTrac Sensor
Module Cable
Wiring Color Code Definitions
First Color: Wire
Second Color: Tracer
Port #1
RS-422
NMEA, Cetrek
KVH Data
4800 baud
KVH Display
Power
TX1A(+)
TX1B(-)
Ground
Sine/Cosine
(3-wire or
4-wire)
Refer to
page 36 for
complete
wiring details.
Sine
Cosine
Ref
Ground
Sine (inverted)
Cosine (inverted)
Furuno
Data
Data H
Data L
Ground
Shift H
Shift L
Ground
Port #2
RS-422
NMEA, Cetrek
KVH Data
4800 or 9600
baud
TX2A(+)
TX2B(-)
Ground
GPS/Ship’s
Gyro Data
Input
RS-422 @
4800 bps 8.N.1
GPS A+ or HDG A+
GPS B- or HDG B-
Duplicate
(pass-through)
Port #1
RS-422
NMEA, Cetrek
KVH Data
4800 baud
KVH Display
Power
TX1A(+)
TX1B(-)
Ground
Gyro Power
Ground
Gyro RXD+
Gyro RXD-
Gyro TXD-
Gyro TXD+
Serial Port 3 is unavailable
for data output while the
system is connected to a
TracVision G6 antenna.
A detailed wiring diagram and complete
instructions have been provided in
Section 2.6, "Wiring the ADCU."
IRD Ground Cable
(to IRD)
KVH Industries, Inc.
50 Enterprise Center Middletown, RI 02842-5279 U.S.A.
Phone: +1 401 847-3327 Fax: +1 401 849-0045
E-mail: info@kvh.com Internet: www.kvh.com
KVH Europe A/S
Ved Klaedebo 12 2970 Hoersholm Denmark
Phone: +45 45 160 180 Fax: +45 45 867 077
E-mail: info@kvh.dk Internet: www.kvh.com
KVH
®
and TracVision
®
are registered trademarks of KVH Industries, Inc.
TVG6_TM_Back_Cover_Rev.D
®

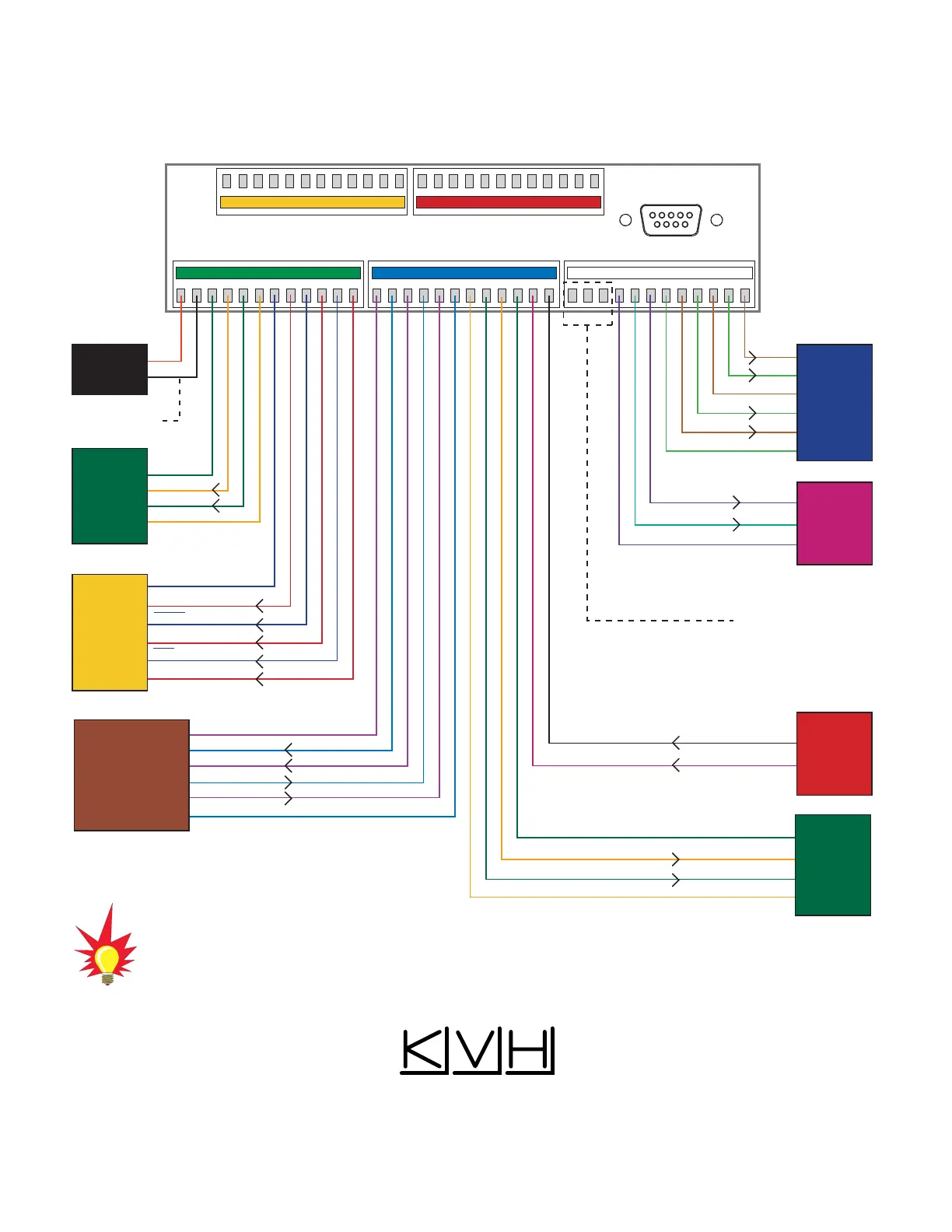

GyroTrac Wiring Quick Reference Guide
