Connecting the Terminal Strip Connectors to the ADCU
Now that you have connected all wires to the terminal strip
connectors, insert the connectors into the ADCU’s rear panel as
shown in Figure 2-29.
Be sure to attach the terminal strip connectors in their correct
positions, as shown in Figure 2-30.
54-0161
40
TracVision G6 Technical Manual
#
!!!
!! ' &
% $
!$!#!"
!
'&%$#
"
" !
'&%$#"!

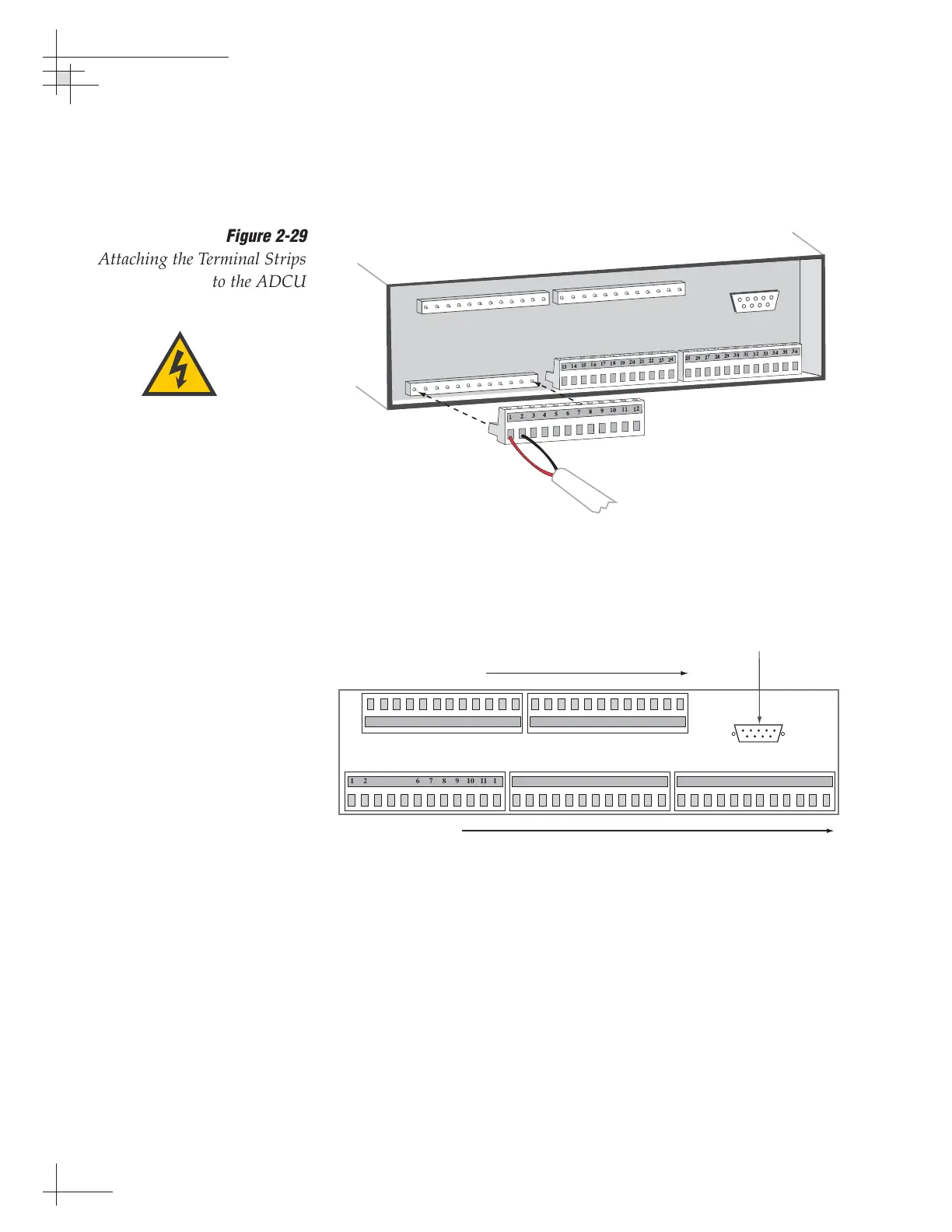

Figure 2-29
Attaching the Terminal Strips
to the ADCU
12 1110987612543 13 14 232221201918 24171615 25 26 353433323130 36292827
48 47 383940414243 3744454660 59 505152535455 49565758
Maintenance Port
Connectors 1 - 36
Connectors 60 - 37
Yellow Label Red Label
Green Label Blue Label White Label
Figure 2-30
Proper Terminal Strip Order
Double-check all wiring. Be certain
to plug terminal strips into the
correct positions. If wiring is
incomplete or incorrect or the
terminal strips exchange positions,
serious electrical damage can
occur to the TracVision antenna
unit, the GyroTrac, and interfacing
electronics.
