5.9 GyroTrac Replaceable Parts
GyroTrac has been designed with durability and low
maintenance in mind. If you are experiencing an operating
problem or otherwise require technical assistance, contact your
local KVH dealer or distributor first. Have the GyroTrac serial
number ready with a list of the trouble symptoms. If an
authorized dealer or distributor is not located nearby, contact
KVH directly at the telephone, facsimile, or e-mail listings inside
the front cover.
Replacement parts for components that can be serviced in the
field are listed in Table 5-2. These parts may be obtained from
any KVH-authorized dealer/installer.
FRU KVH Part No.
Sensor Module 02-0991
ADCU 02-0961
Flush Mount ADCU Panel 20-0667
Horizontal Sensor Bracket 20-0658
Vertical Sensor Bracket 20-0666
Connector Wire Terminal Strip 23-0223-12
Sensor to ADCU Data Cable 32-0623-30
ADCU Interface PCB Fuse, 4-amp 16-0017-4000

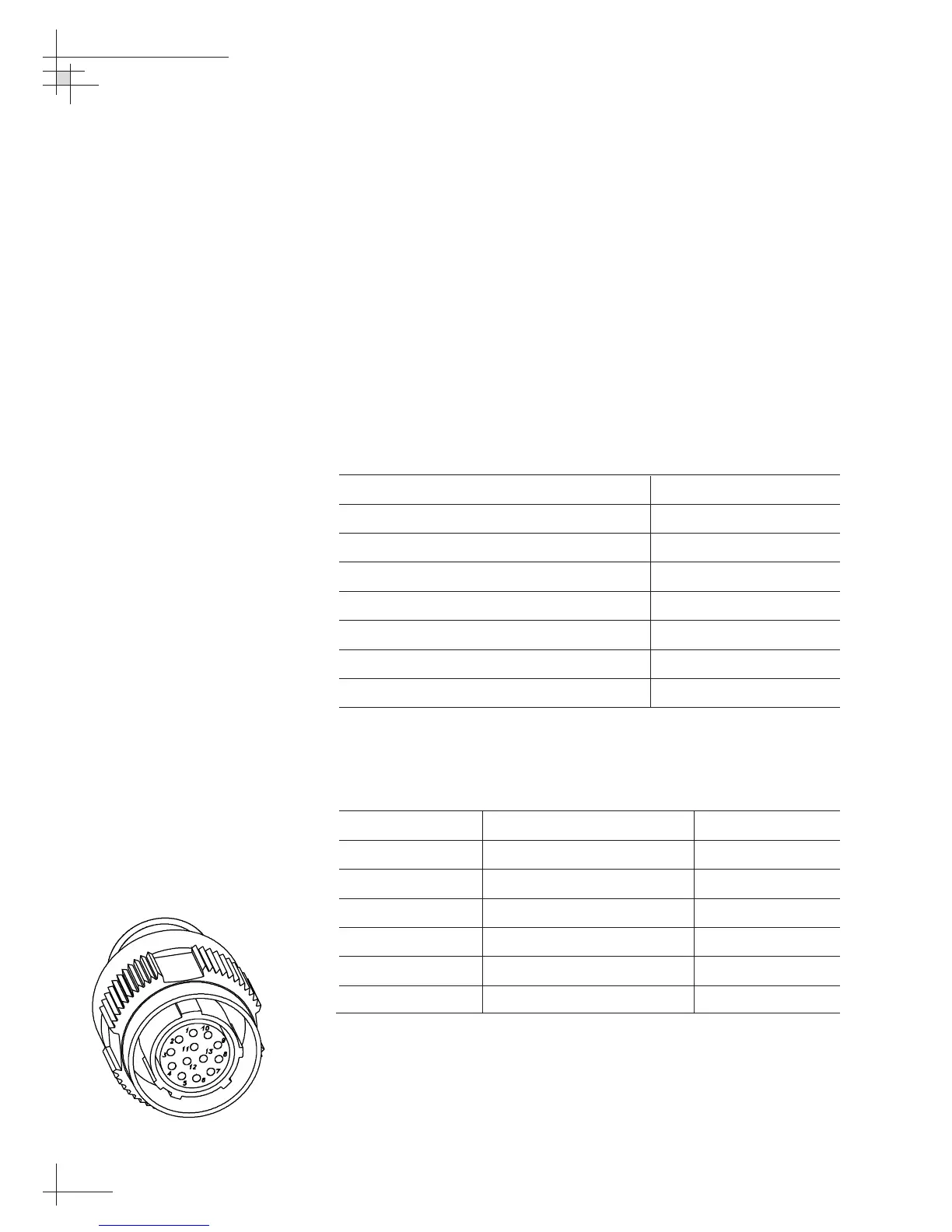

Table 5-3 and Figure 5-13 provide the pin assignments for the
Sensor to ADCU Data Cable (Part Number 32-623-30).
Connector Terminal Wire Color Function
1 Wht/Blu Stripe FE_TXD+
2 Blu/Wht Stripe FE_TXD-
3 Wht/Org Stripe FE_RXD-
4 Org/Wht Stripe FE_RXD+
10 Wht/Grn Stripe GND
11 Grn/Wht Stripe +12V
Shell Shield ---
54-0161
118
TracVision G6 Technical Manual
Table 5-2
GyroTrac Field Replaceable Units
Table 5-3
Data Cable Wiring/Terminal
Assignments
Figure 5-13
Data Cable Terminal Arrangement
