3.3 Setup Display Mode
The Setup Display mode selects the data that will be displayed
on the ADCU LCD after startup and self-test; it does not control
the data sent to remote heading display units, north-up radars,
autopilots, etc.
Using the ADCU Interface
54-0161
67
Setup display type?
Enter Next Return
compass?
Yes Next Return
Proceed to Section 3.4,
"Set Data Outputs Mode"
Magnetic Heading
###.#°
Pitch Roll Yaw
#.#° #.#° #.#°
Mag/Hdg Rate/Sec
#.#° #.#°
Lat: ##°
Long: ##°
Pitch, Roll & Yaw?
Yes Next Return
Rate of turn?
Yes Next Return
Latitude Longitude?
Yes Next Return
Antenna display?
Yes Next Return
New Data Display
This menu will not appear if
GyroTrac is configured to
operate as a standalone
system.
Mag/HDG True/HDG
###.#° ###.#°
Compass screen
determined by
availability of GPS
data for True North.
Tracking <Sat Name>
###.#° ##.#° ####
Antenna Initializing
No Data from Antenna
Antenna screen
determined by
availability of
Tr acVision G6 and
time in the startup
sequence
Antenna Initializing
waiting for POS Data
ALERT SCREENS

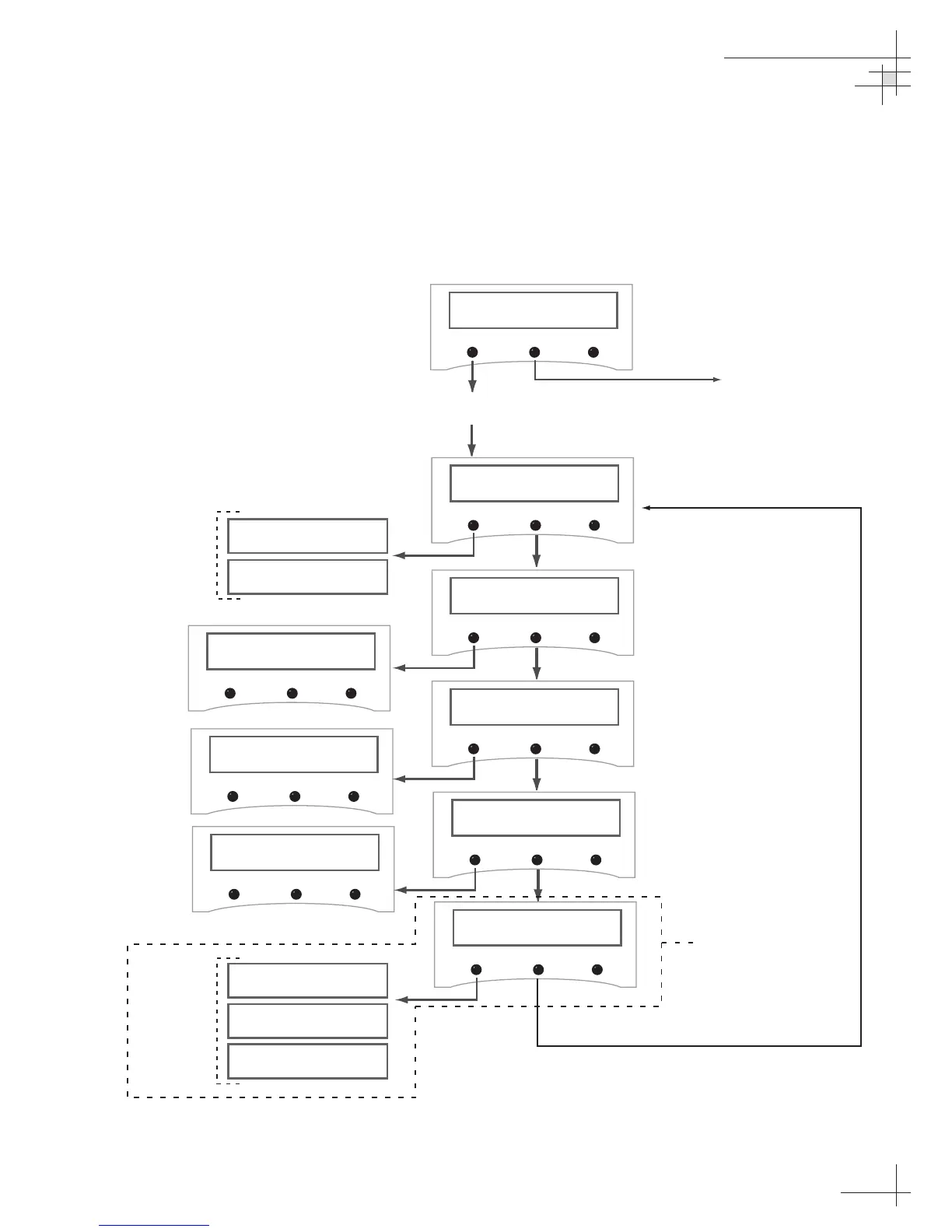

Figure 3-9
Setting Display
