5. As illustrated in Figure 2-11, position the bracket
over the mounting holes.
6. Insert fiber washers into the mounting bracket’s
four mounting holes on both sides of the
mounting bracket.
7. Insert #8 flat washers and #8 (black) Phillips
screws into the mounting bracket’s four mounting
holes from above. Secure the bracket to the
mounting surface.
6. Place the sensor module in the bracket with the
proper orientation (up/forward).
7. Thread #10 screws through lock washers, flat
washers, and bracket, and then into the captive
extrusion T-nuts within the sensor module
housing as illustrated in Figure 2-11.
Installation
54-0161
21

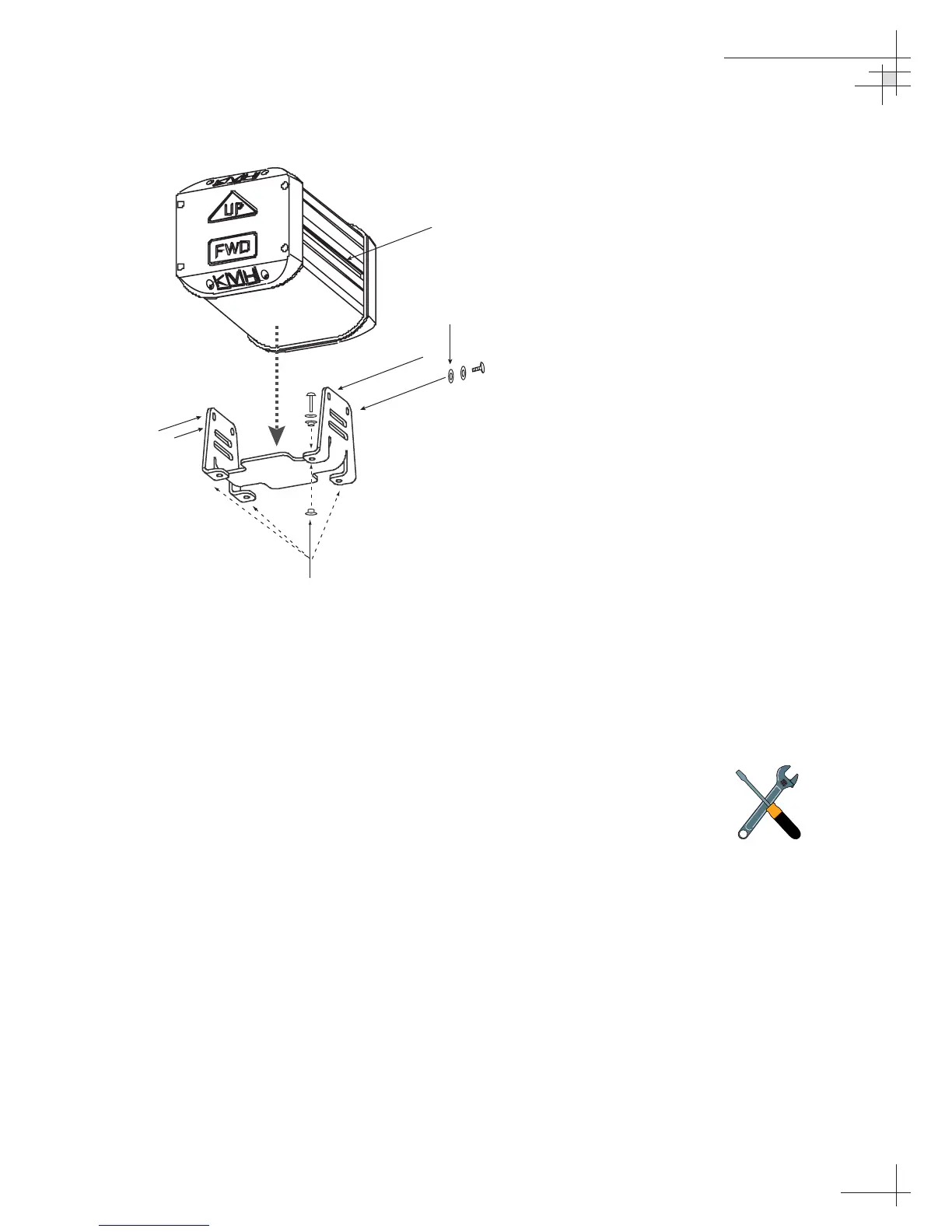

Figure 2-11
Securing the Sensor Module and
the Horizontal Sensor Bracket
Should you ever need to replace
the #10 machine screws used to
secure the housing and bracket, the
screws must be no longer than
3
⁄8"
(10 mm) to avoid damaging the
housing.
