Cleaning
3-13
Paper Transfer Unit
To avoid print quality problems due to paper dust and debris, clean the
paper transfer unit in the following manner.
1
While pulling the paper transfer unit release lever (green colored),
pull out the paper transfer unit.
2
Wipe away the paper dust on the registration roller and the paper
ramp using the wiper cloth included in the toner kit.
Be careful not to touch the transfer roller (the black roller) during
cleaning as this may adversely affect print quality.

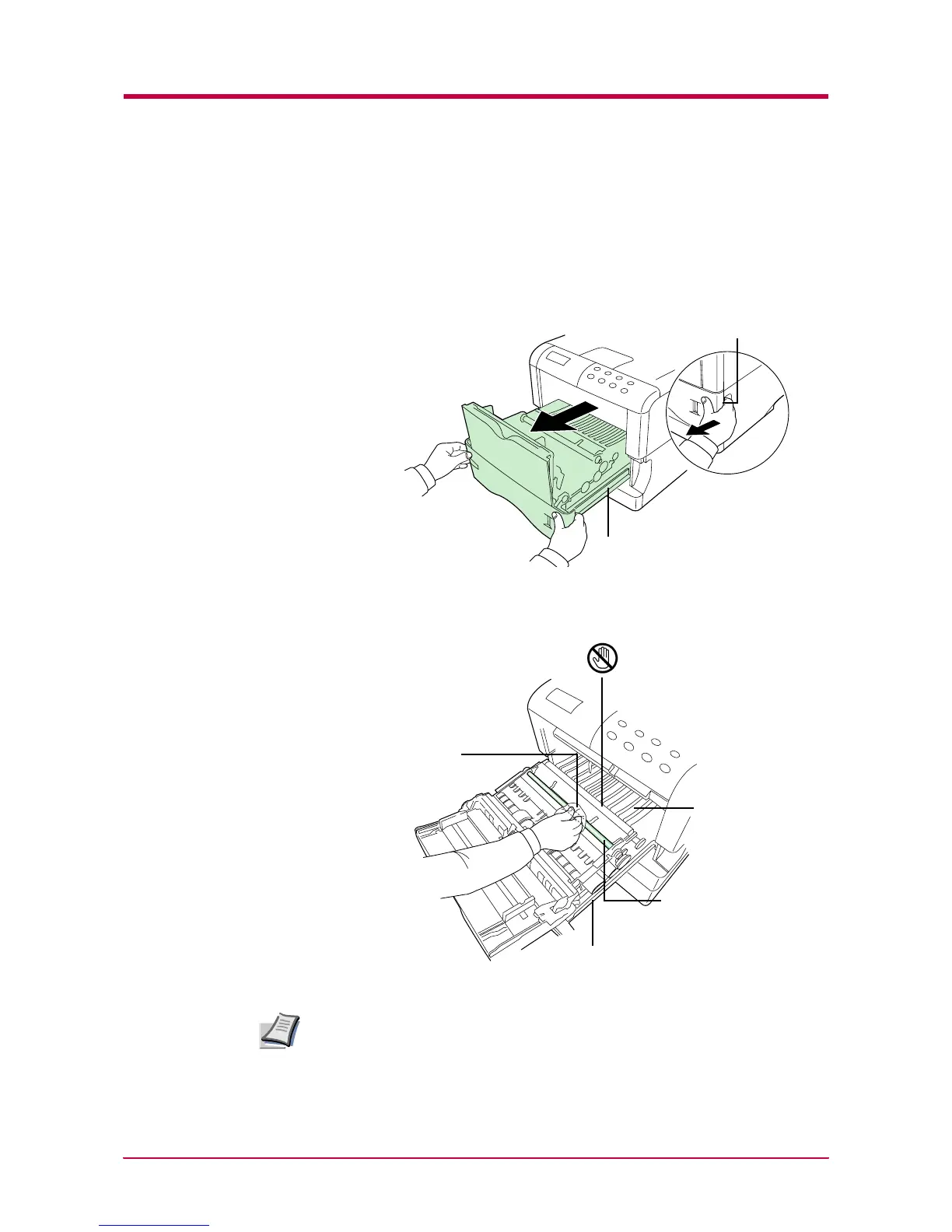

Paper Transfer Unit
Paper Transfer Unit Release Lever
(green colored)
Paper Ramp
Transfer Roller [Black]
See Note below.
Registration Roller [Metal]
Paper Transfer Unit
Wiper Cloth
