Kyocera KM-2020

2C9
2-3-2
Connector Pin No. Signal I/O Description

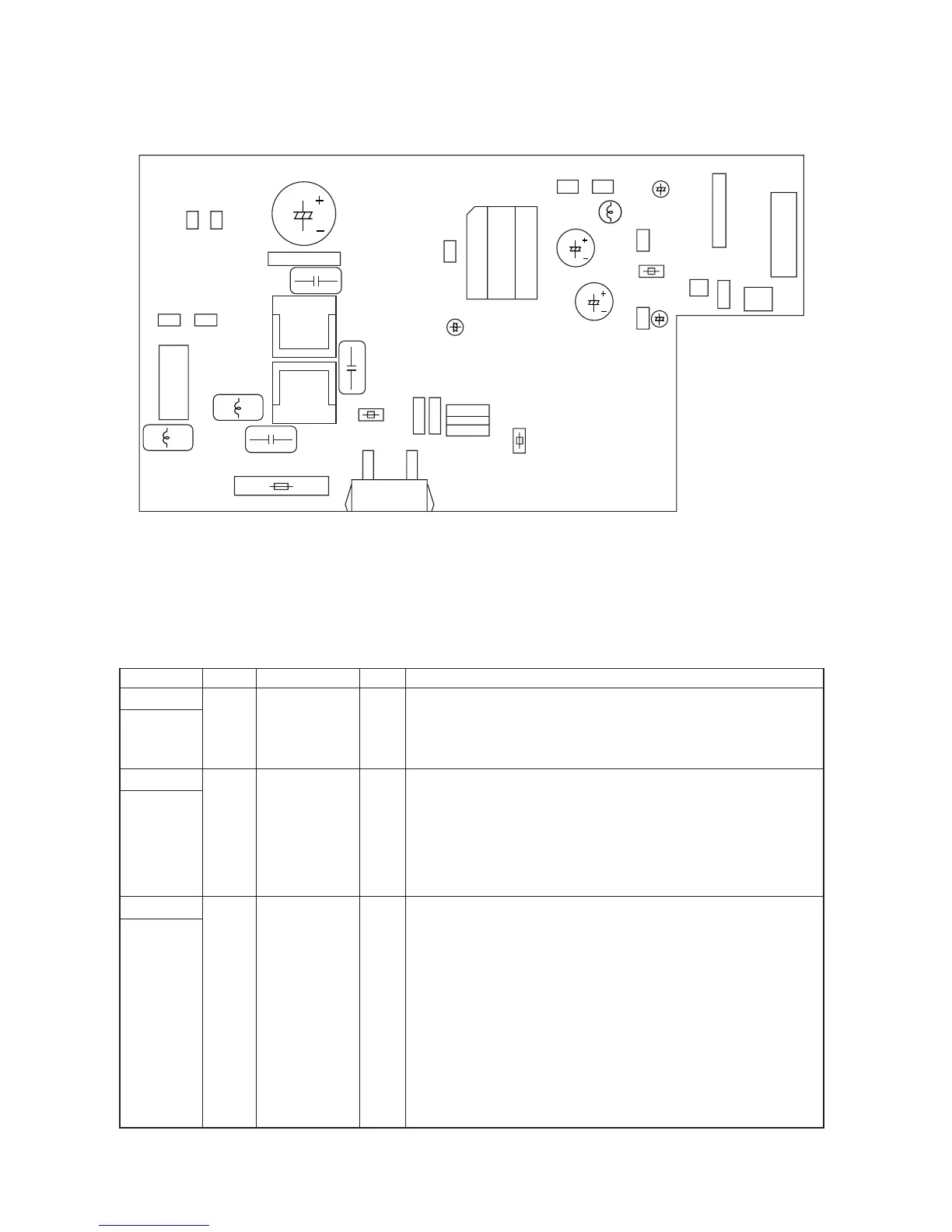

Figure 2-3-2 Power source PCB silk-screen diagram
IL001
Connected
to the AC
power plug
YC1
Connected
to the
engine PCB
and left
cover safety
switch
YC2
Connected
to the
engine PCB
1 AC-L I AC supply (LIVE)
2 FG - Ground
3 AC-N I AC supply (NEUTRAL)
1 +24 V1 O 24 V DC power supply for LCSSW
2 NC - Not used
3 +24 V2 I 24 V DC power supply
4 +24 V4 O 24 V DC power supply for EPCB
5 P.GND - Ground
6 S.GND - Ground
7 +5 V O 5 V DC power supply for EPCB
1 +5 V O 5 V DC power supply for EPCB
2 S.GND - Ground
3 +24 V2 I 24 V DC power supply
4 S.GND - Ground
5 ZCROSS O Zero-cross signal
6 SLEPN I Power source sleep signal
7 S.HEATN I FH-S on/off
8 M.HEATN I FH-M on/off
9 COUNTN I Counter control signal
10 P.GND - Ground
11 P.GND - Ground
12 +24 V1 O 24 V DC power supply for EPCB
13 +24 V1 O 24 V DC power supply for EPCB
14 +24 V O 24 V DC power supply for EPCB
