Kyocera KM-2020

Maintenance
Description
item No.
2C9
1-4-36
U402 Adjusting margins of image printing
Adjustment
See page 1-6-15.
U403 Adjusting margins for scanning an original on the contact glass
Adjustment
See page 1-6-32.
U404 Adjusting margins for scanning an original from the DP
Description
Adjusts margins for scanning the original from the DP.
Purpose
Used if margins are not correct when the optional DP is used.
Caution
Before making this adjustment, ensure that the following adjustments have been made in maintenance mode.
Method
Press the start key.
Setting
1. Select the item by lighting a copy exposure indicator using the copy exposure adjustment keys.
2. Change the setting using the zoom +/– keys.
Copy exposure
Description Setting range Initial setting
Change in
indicator value per step
Exp. 1 Left margin 0.0 to 10.0 2.0 0.5 mm
Exp. 2 Leading edge margin 0.0 to 10.0 3.0 0.5 mm
Exp. 3 Right margin 0.0 to 10.0 2.0 0.5 mm
Exp. 4 Trailing edge margin 0.0 to 10.0 2.0 0.5 mm
Increasing the setting makes the margin wider, and decreasing it makes the margin narrower.

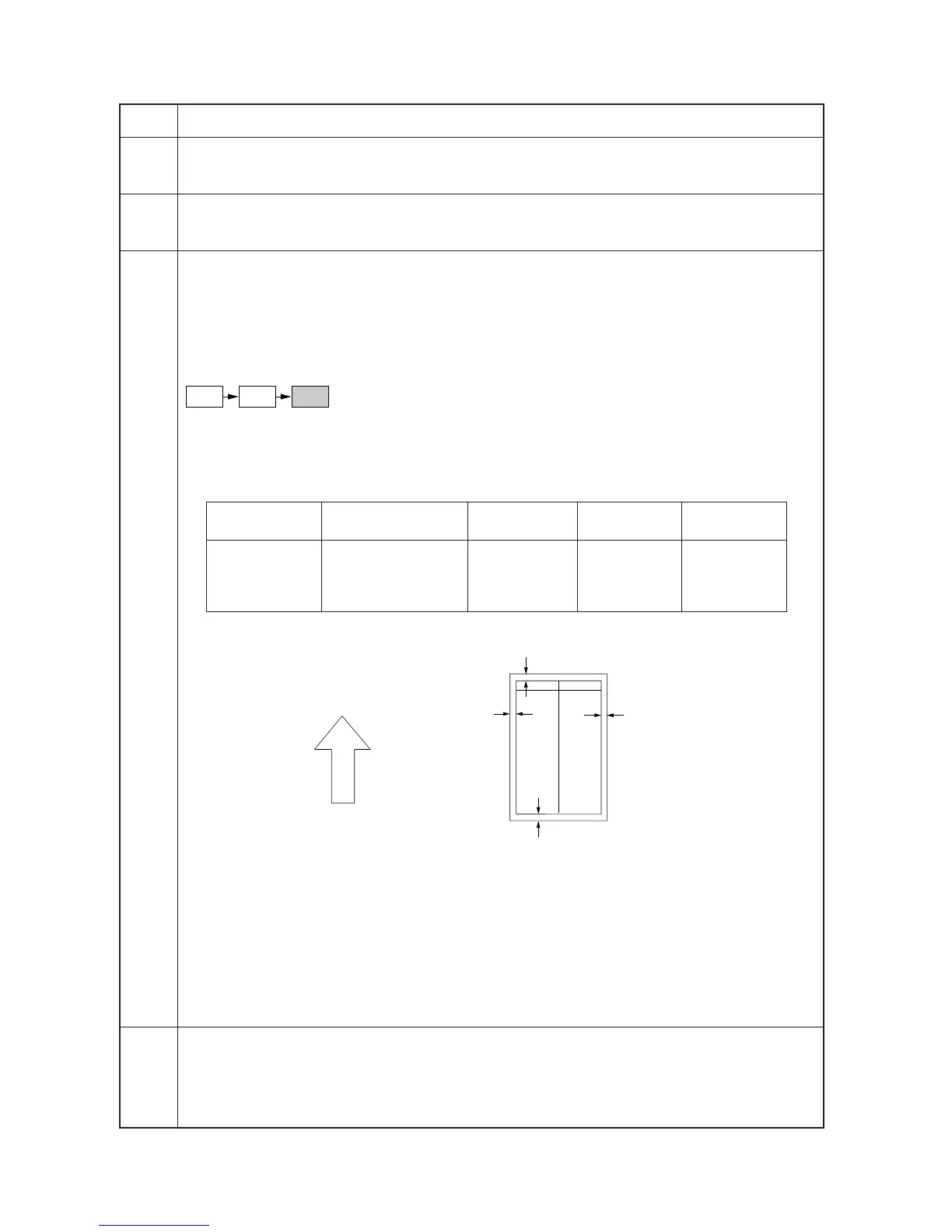

Figure 1-4-7 Correct margin amount
3. Press the start key. The value is set.
Interrupt copy mode
While this maintenance item is being performed, copying from an original can be made in interrupt copy mode.
A test copy is output at the reduction ratio of 95%.
Completion
Press the stop/clear key while a selection item is displayed. The indication for selecting a maintenance item No.
appears.
U407 Adjusting the leading edge registration for memory image printing
Adjustment
See page 1-6-13.
U402 U403 U404
DP leading edge margin (3 ± 2.5 mm)
Ejection direction
(reference)
DP trailing edge margin
(3 ± 2.5 mm)
DP left margin
(2.5 mm)
DP right margin
(2.5 mm)
+1.5
–2.0
+1.5
–2.0
