Corrective maintenance
D/R - Connector plate
Tools
• torque screwdriver
• T25 Torx bit
• at tool
Repair kits
G03508 - KR diaphragm A10 FOCUS/WIDE or
G03506 - KR compression driver A10 FOCUS/WIDE
×6
S100086
M5×16 Torx

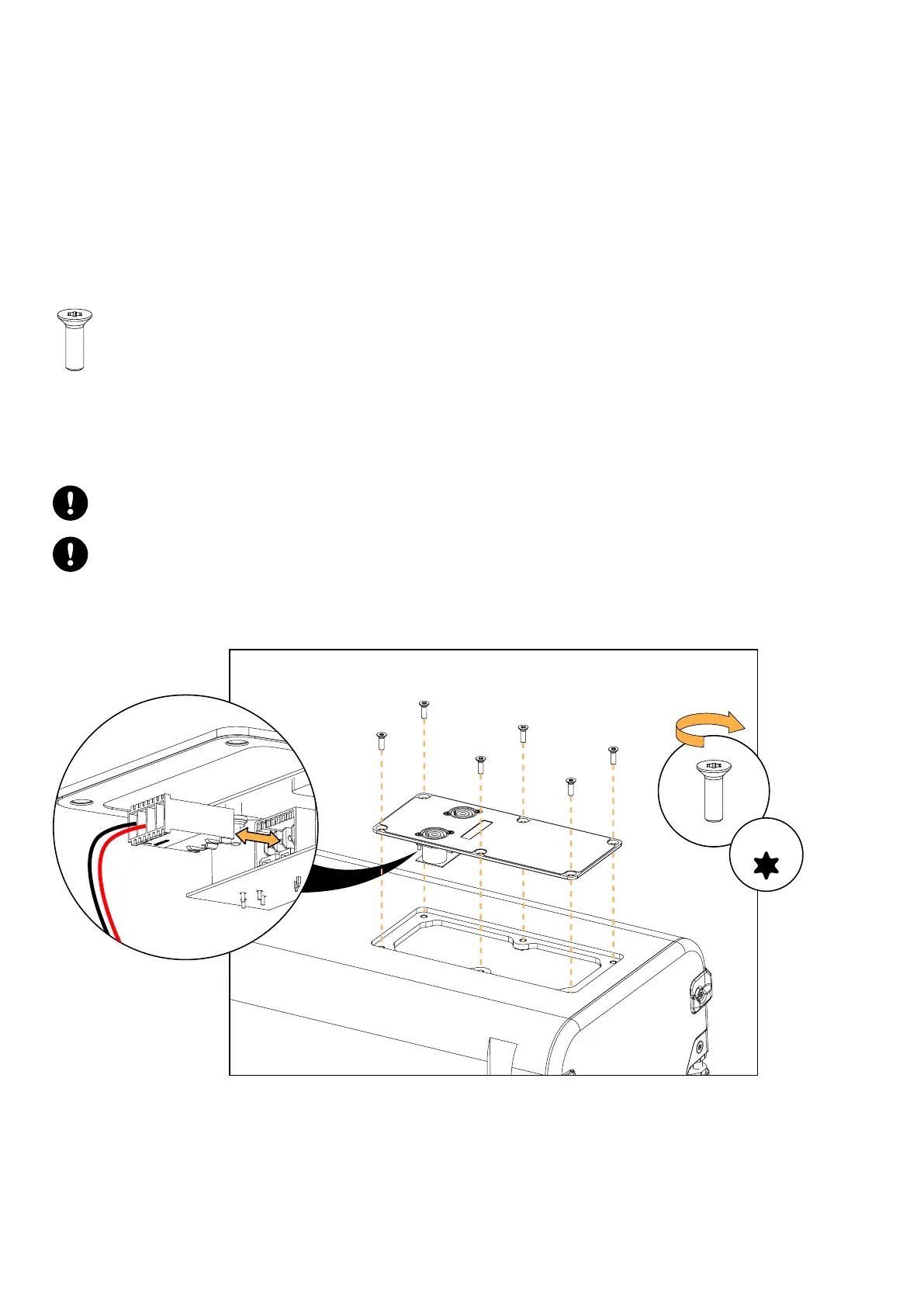

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Gradually tighten the screws following a star pattern.
Use a at tool as a lever to remove the connector plate.
Position the connector plate with the connectors towards the middle of the enclosure.
x6
3 N.m
T25
104 A10 owner's manual (EN) version 1.1
