Corrective maintenance
A10 Wide
Introduction
This section contains the following maintenance procedures:
• Grill (p.109)
• Fin (p.110)
• LF speaker (p.111)
• Connector plate (p.113)
• HF driver (p.114)
• HF diaphragm (p.115)
For advanced maintenance, contact your L-Acoustics representative.

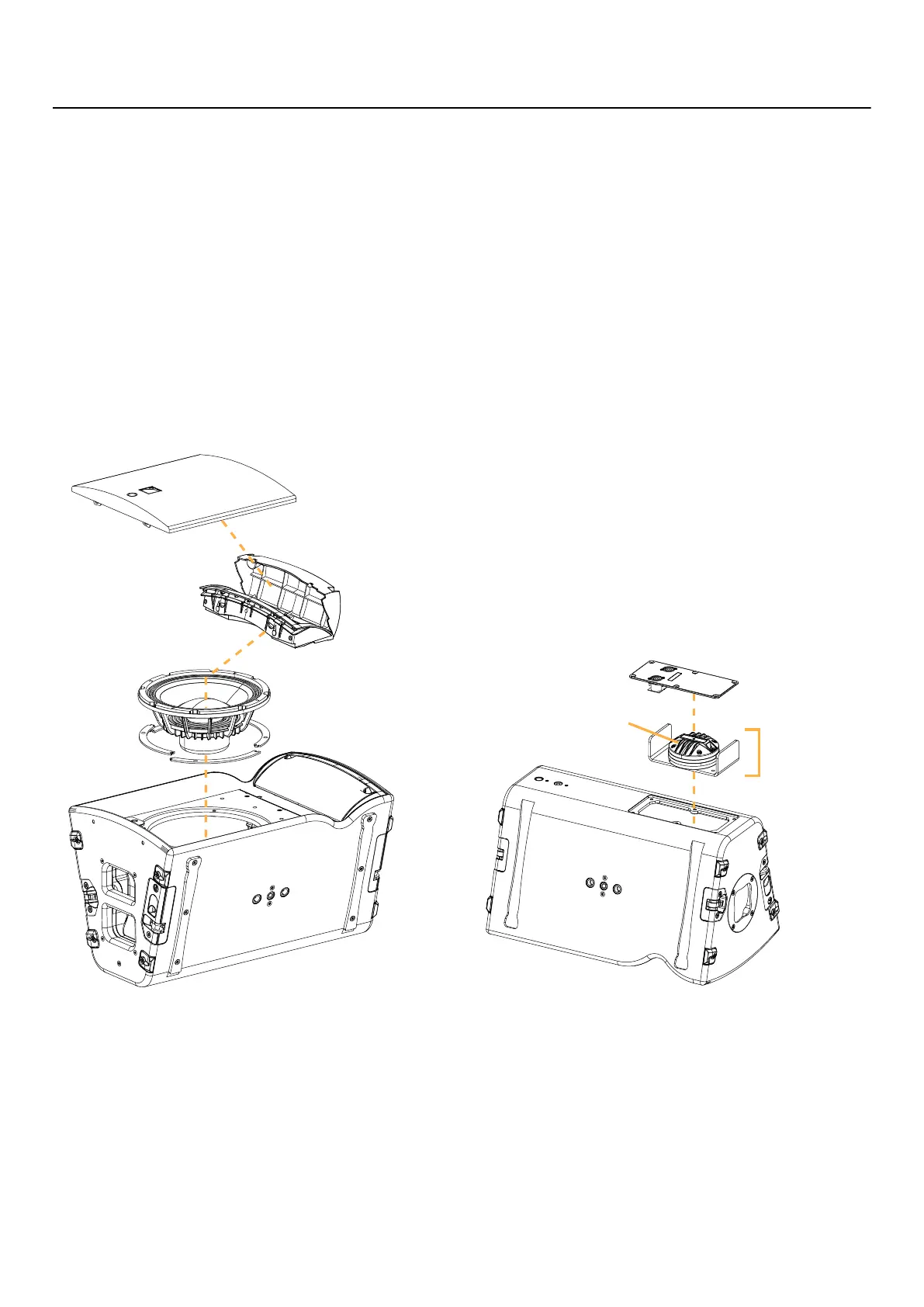

A10 Wide exploded view
In order to operate, follow the order outlined here. Each assembly refers to the corresponding D/R procedure and the
necessary repair kit.
LF SPEAKER
G03507
GRILL
FIN
HF DIAPHRAGM
G03508
CONNECTOR PLATE
HF DRIVER
G03506
108 A10 owner's manual (EN) version 1.1
