Electro-acoustical description

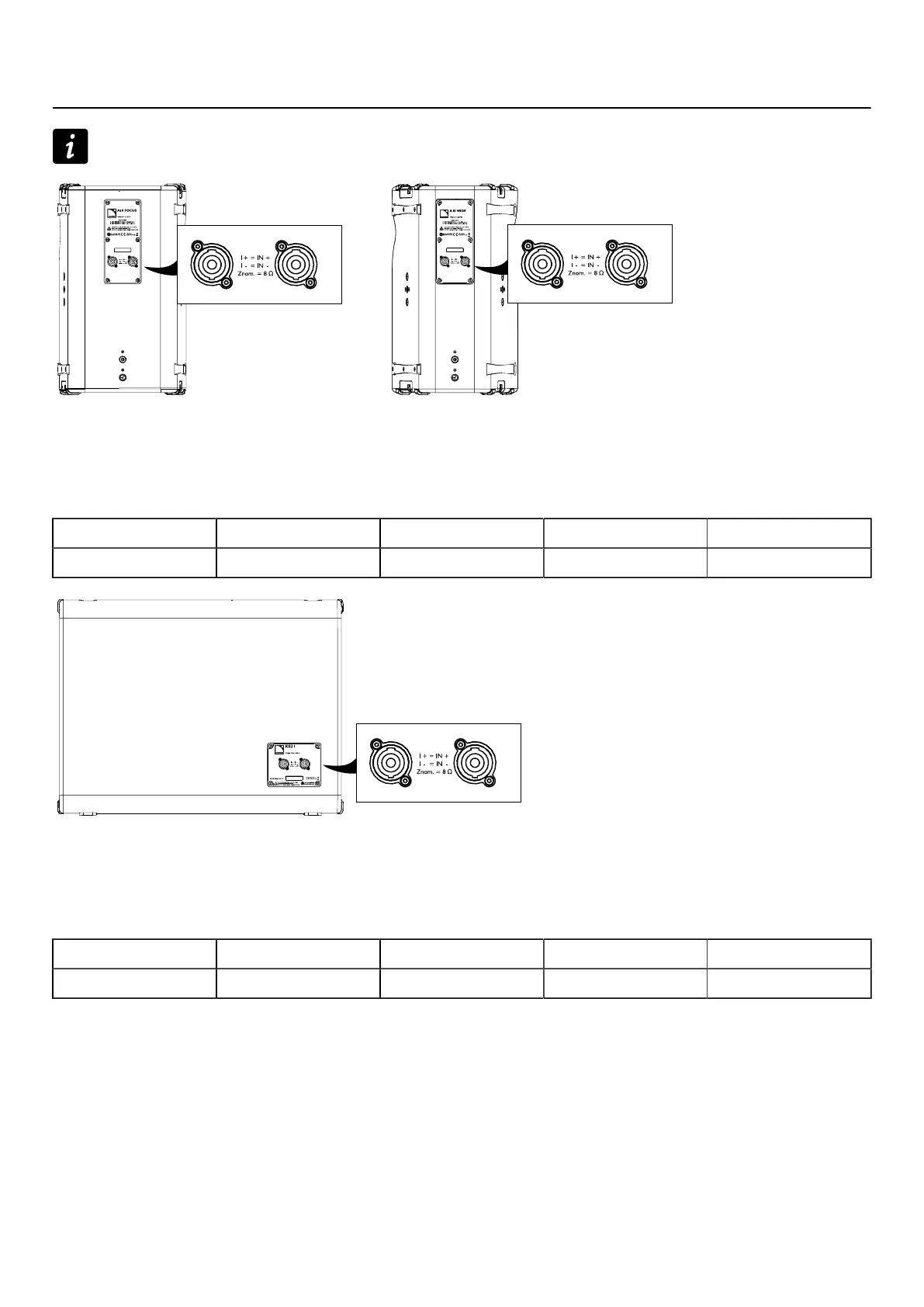

Connectors
SpeakON connectors can be used interchangeably as IN or LINK connector.
A10 Focus
2 × 4-point speakON
A10 Wide
2 × 4-point speakON
Internal pinout for L-Acoustics 2-way passive enclosures
speakON points 1 + 1 - 2 + 2 -
Transducer connectors + - Not linked Not linked
KS21
2 × 4-point speakON
Internal pinout for L-Acoustics subwoofers
speakON points 1 + 1 - 2 + 2 -
Transducer connectors LF + LF - Not linked Not linked
18 A10 owner's manual (EN) version 1.1
