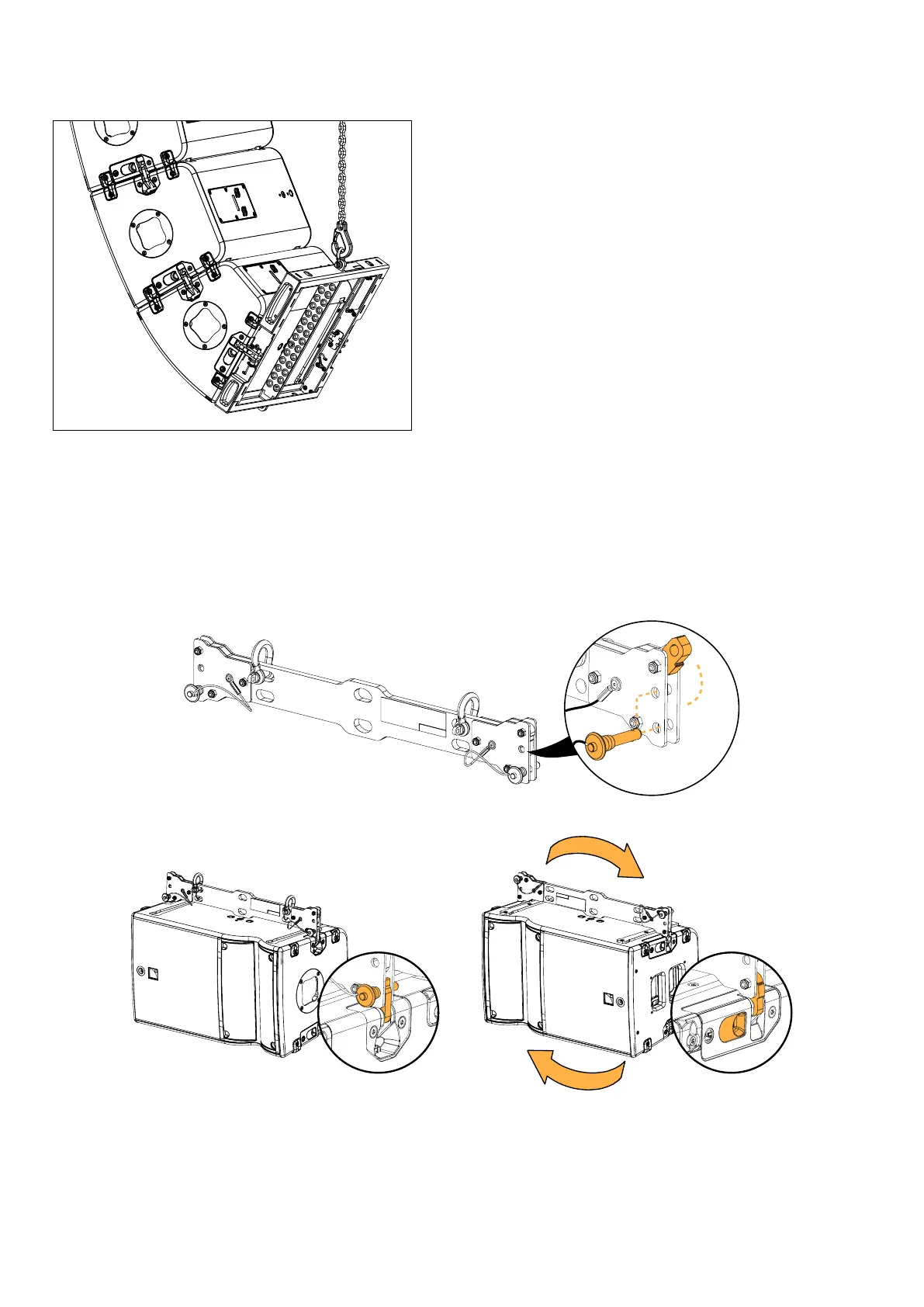

Rigging system description
A10-BUMP can be secured to the bottom of the array to implement pullback congurations, using the rear pickup point
(R). Alternatively, A10-RIGBAR (p.26) can be used for pullback.
A laser mounting plate is available. Refer to APPENDIX B: Installing the LAP-TEQ inclinometer on A10-BUMP (p.141).
A10-RIGBAR
A10-RIGBAR is a reversible rigging bar. It can be used as a pullback or for ying vertical arrays of up to four A10
Wide/Focus.
A10-RIGBAR is equipped with rotating rigging arms and ball-locking pins, to match the rigging systems of A10 Wide/
Focus on either side.
26 A10 owner's manual (EN) version 1.1
