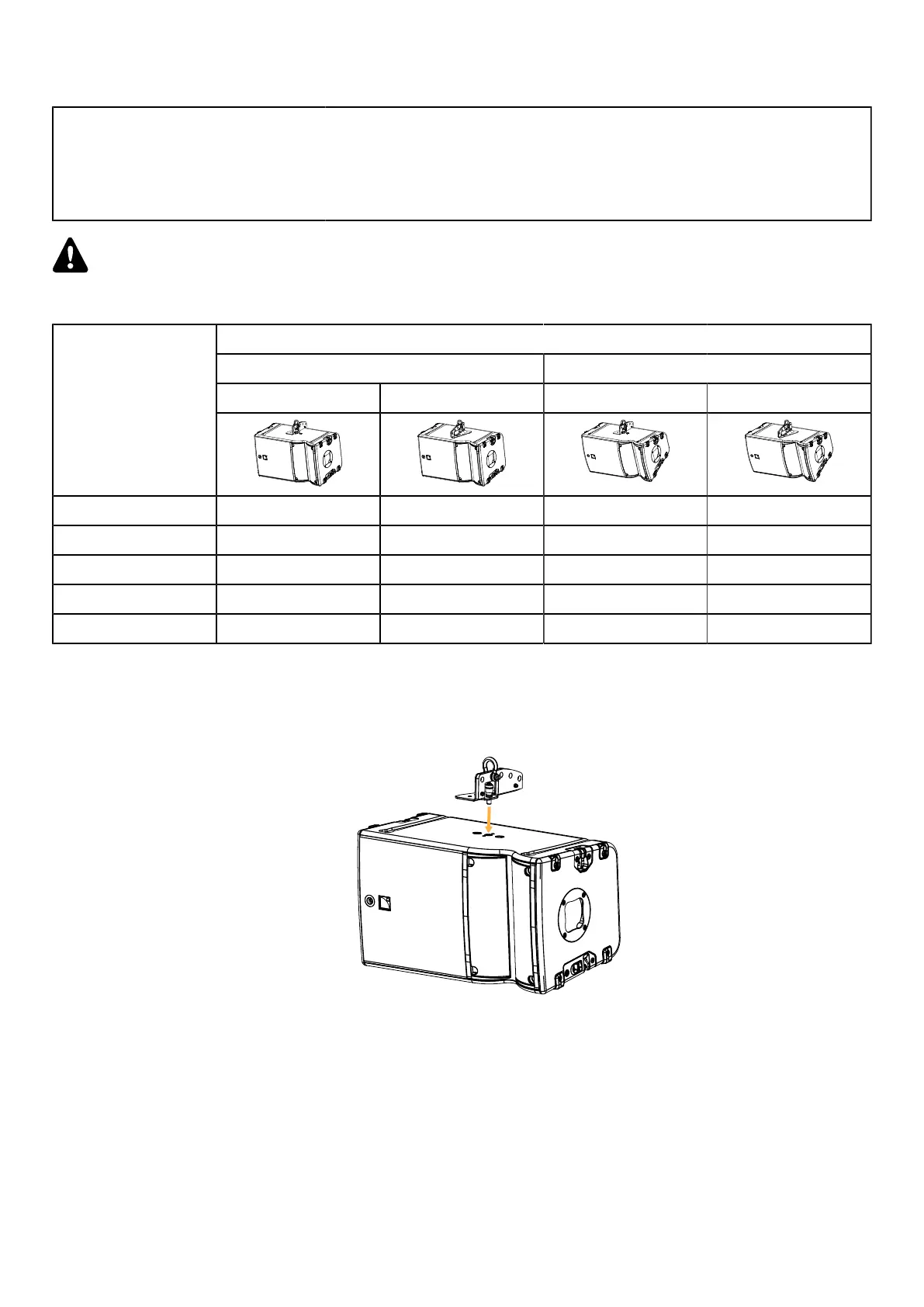

L-Acoustics A10 - Flying a Single Enclosure with X-BAR

Rigging procedures
Flying a single enclosure with X-BAR
Type of deployment own
X-BARRigging accessories
1 x Ø12 mm shackle WLL 1 t (provided) or CLAMP250
Min number of operators 1
Additional safety for own arrays
When ying an enclosure or an array, use the M8 DIN580 threaded insert to implement a secondary safety.
Realized site angles
realized site angle
A10 Focus A10 Wide
rear extension front extension rear extension front extension
X-BAR hole N
o
1 11.2° -11.1° 18.2° -7.7°
2 -0.9° 0.1° 5.2° 4.4°
3 -9.9° 10.6° -7° 17°
4 -20.6° 21.1° -19.7° 28.5°
5 -30.8° 31.6° -32° 39.4°
Assembly
Procedure
1. Drive the X-BAR in the insert.
A10 owner's manual (EN) version 1.1 85
