Electro-acoustical description
Connection to LA amplied controllers
Enclosure drive capacity per amplied controller
Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller
(refer to the footnotes).
LA4X LA8 LA12X
per output
*
/ total per output
*
/ total per output
*
/ total
A10 Wide/Focus 2 / 8 2 / 8 3 / 12
KS21 1 / 4
2 / 6
**
2 / 8

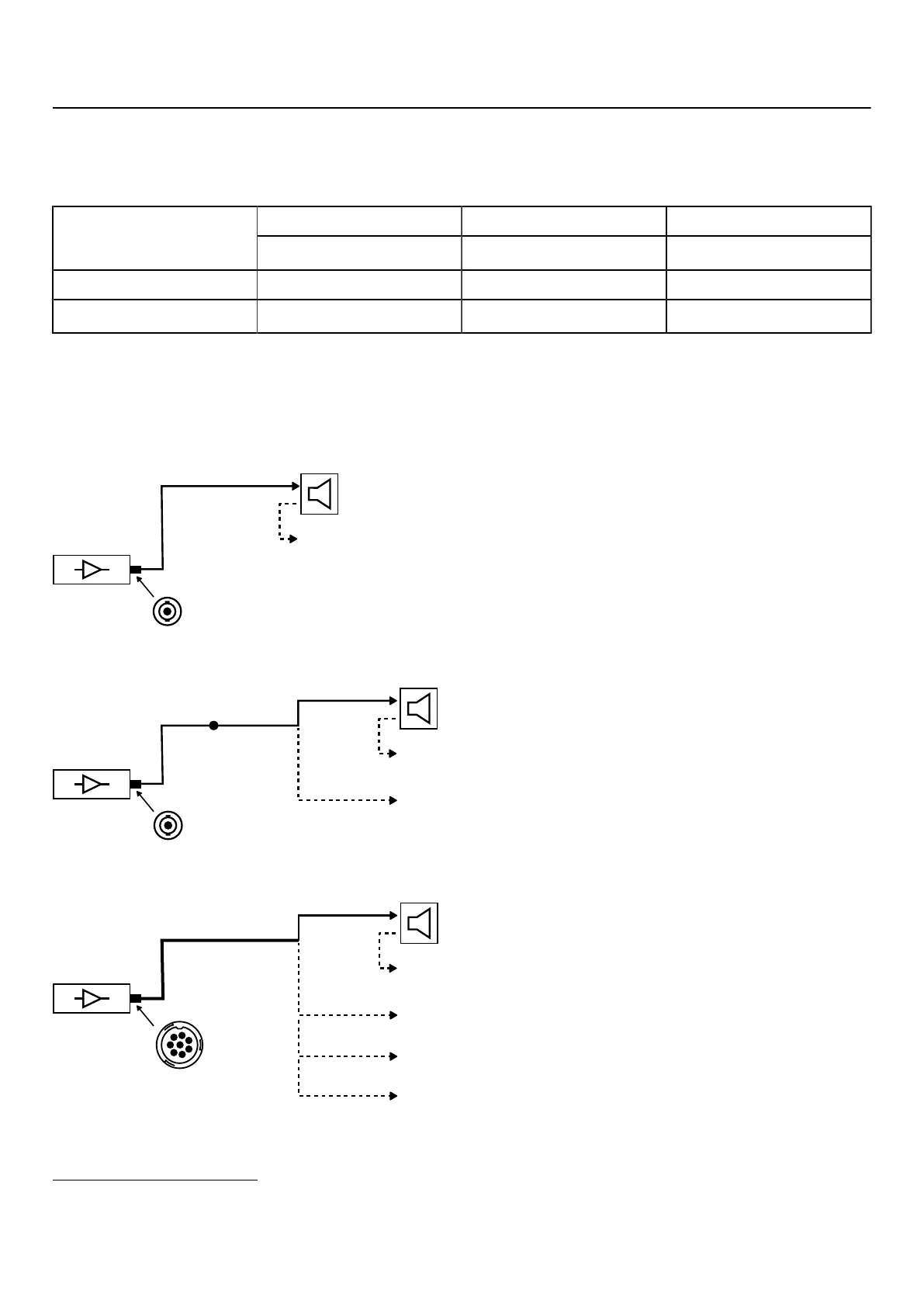

Cabling schemes for A10 Wide/Focus / KS21
Refer to the cabling schemes to connect the enclosures to different types of output connectors.
One-channel speakON output
SP
SP
1+/1-
Two-channel speakON output
SP
SP
SP-Y1
CC4FP
CH(1)
CH(2)
1+/1-
2+/2-
Four-channel CA-COM output
DO
SP
DOSUB-LA8
SPK1
SPK2
SPK3
SPK4
*
For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active
loudspeakers, the value corresponds to the number of sections in parallel on the output.
**
LA8 can drive up to two KS21 per output, but no more than six per controller at high level.
A10 owner's manual (EN) version 1.1 19
