Rigging system description
Rigging elements for stacked arrays
A-TILT

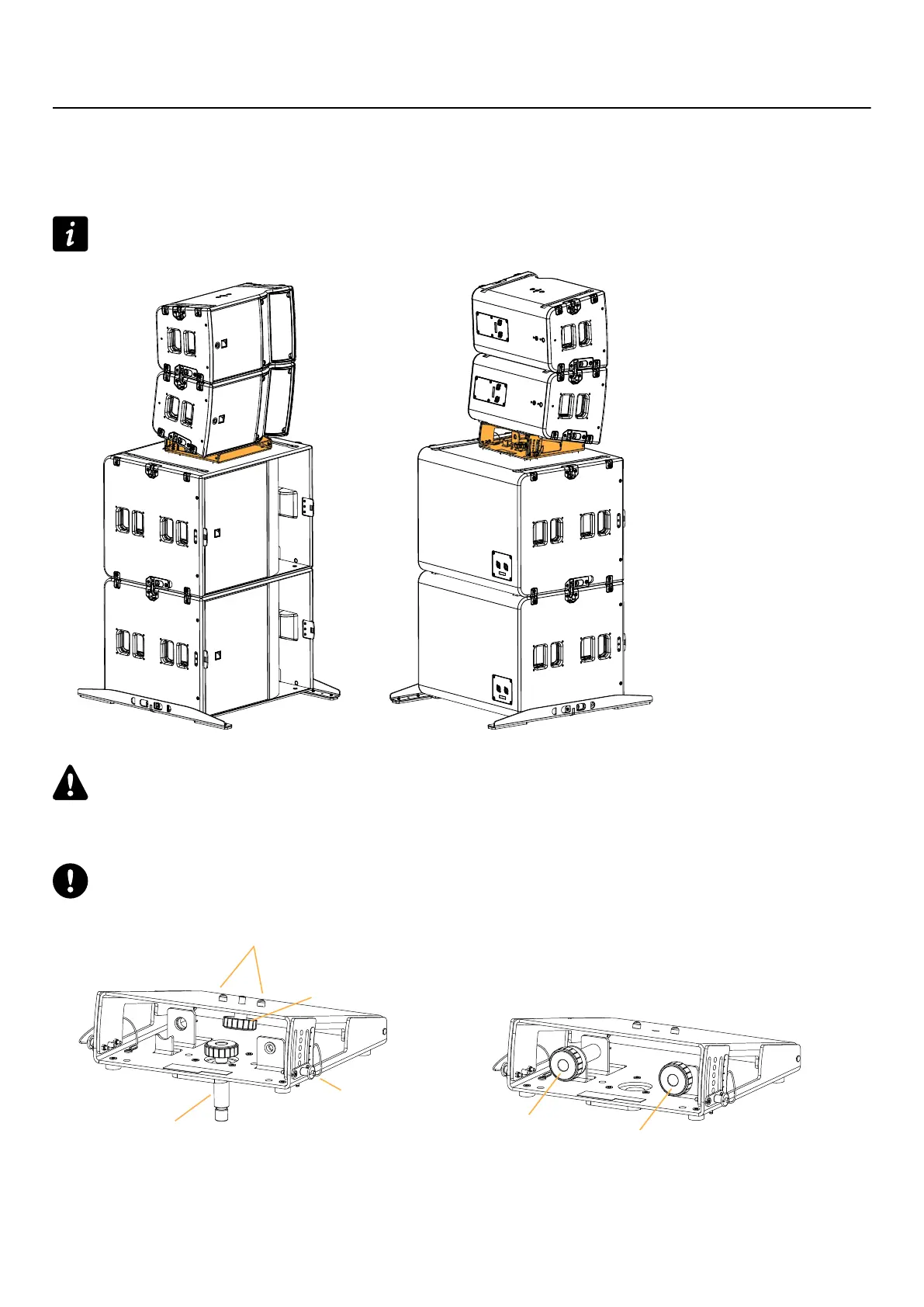

A-TILT is a site angle adjustment accessory that interfaces between KS21 and A10 Wide/Focus in a stacked array. It is
used in combination with two KS21-OUTRIG
*
under KS21 to ensure stability.
*
Alternatively, mount the KS21 array on KS21-CHARIOT and use K2-JACK to stabilize the array.
Do not use A-TILT in a own array.
The locating pins on A-TILT match the lodgings on the enclosure, to enable deployments with the HF section on either side.
A-TILT is secured to the enclosure and to the subwoofer with threaded knobs.
A-TILT-compatible subwoofers
The A-TILT subwoofer knob can only be used with KS21.
M20
subwoofer knob
studs
enclosure knob
angle pin (x2)
subwoofer knob
enclosure knob
position in use storage position
34 A10 owner's manual (EN) version 1.1
