L-Acoustics A10 User Manual

Corrective maintenance
Corrective maintenance
A10 Focus
Introduction
This section contains the following maintenance procedures:
• Grill (p.100)
• Fin (p.101)
• LF speaker (p.102)
• Connector plate (p.104)
• HF driver (p.105)
• HF diaphragm (p.106)
For advanced maintenance, contact your L-Acoustics representative.

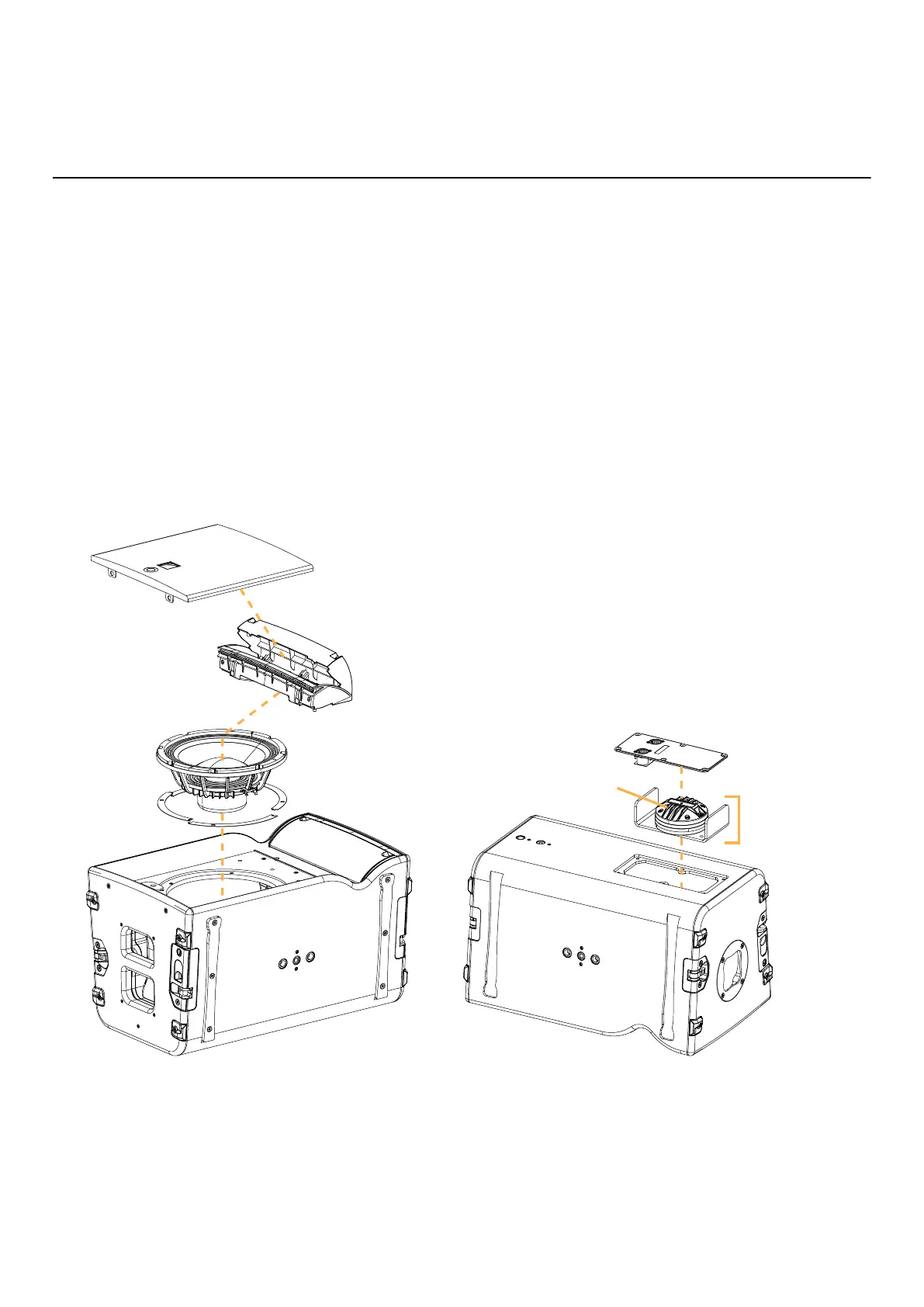

A10 Focus exploded view
In order to operate, follow the order outlined here. Each assembly refers to the corresponding D/R procedure and the
necessary repair kit.
LF SPEAKER
G03507
GRILL
FIN
CONNECTOR PLATE
HF DRIVER
G03506
HF DIAPHRAGM
G03508
A10 owner's manual (EN) version 1.1 99
