Rigging system description
13 holes are available for site angle adjustment. They are compatible with Ø12 mm shackles WLL 1 t (two provided) and
CLAMP250.

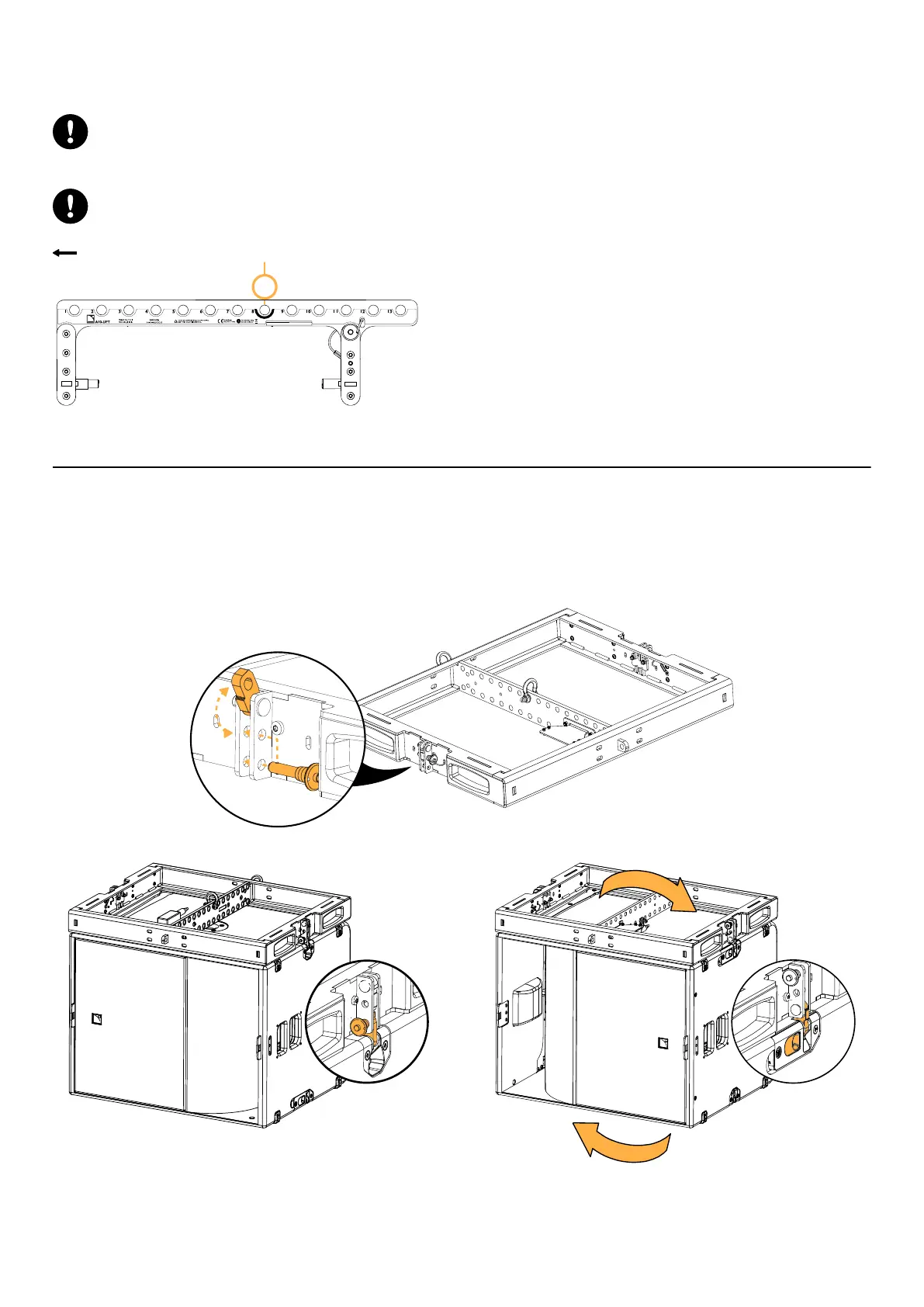

A10-LIFT pickup point
Select the same pickup point on each A10-LIFT within an array of up to 6 enclosures.
For larger arrays, refer to Radial arrays of 7 enclosures and more (p.140).
Hole 8 serves as a setup point in the radial array procedure (see Flying a radial array with A10-LIFT (p.79)). It
is identied by a mark on the label.
setup point
1 2
3
4
5
6 7 8 9 10
11 12
13
FRONT
Rigging elements for own KS21 arrays
A15-BUMP
A15-BUMP is a reversible rigging frame for ying vertical arrays of KS21.
A15-BUMP is equipped with rotating rigging arms and ball-locking pins, to match the rigging systems of KS21 on either
side.
