Authorized congurations with A10-LIFT
Radial arrays of 1 to 6 enclosures

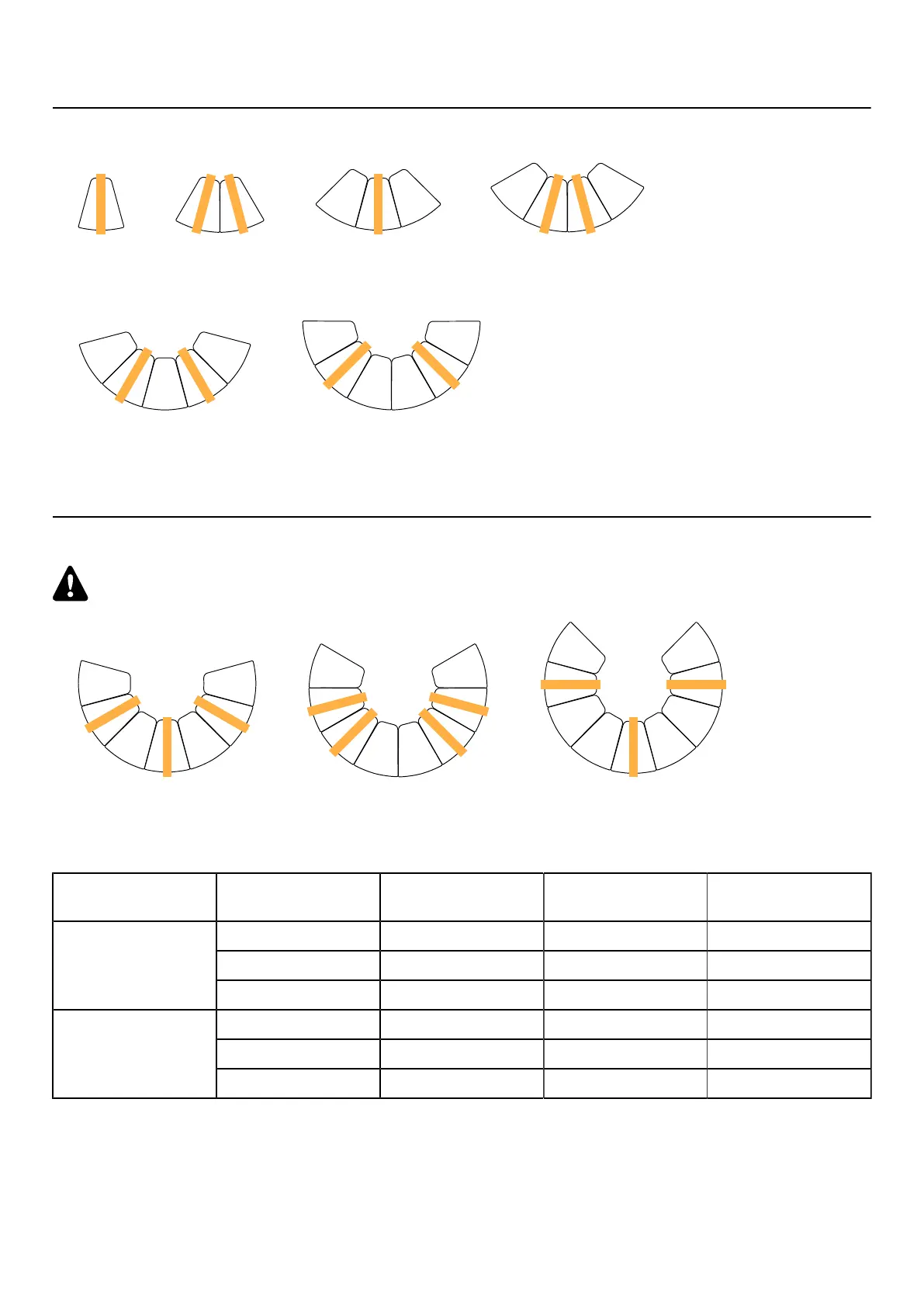

Refer to the illustrations to distribute the A10-LIFT bars on the array.
1 enclosure :
1 A10-LIFT
2 enclosures :
2 A10-LIFT
3 enclosures :
1 A10-LIFT
4 enclosures : 2 A10-LIFT
5 enclosures : 2 A10-LIFT 6 enclosures : 2 A10-LIFT
Radial arrays of 7 enclosures and more
Refer to the illustrations to distribute the A10-LIFT bars on the array.
In radial arrays of 7 enclosures and more, make sure the site angle is 0°.
Position the pickup points so that the center of gravity is in the middle of the array.
7 enclosures : 3 A10-LIFT 8 enclosures : 4 A10-LIFT 9 enclosures : 3 A10-LIFT
Array setup information
type number of
enclosures
number of motors setup point pickup point
for 0° site angle
7 3 8 N/A
8 2 (2 bridles) 8 7
A10 Focus
9 3 8 N/A
7 3 8 N/A
8 2 (2 bridles) 8 9
A10 Wide
9 3 8 N/A
