Rigging procedures
Pole-mounting
Pole-mounting A10 Wide/Focus
Type of deployment pole-mount
Rigging accessory A-MOUNT
35 mm (1-3/8") pole
Min number of operators 2
If the enclosure is to be mounted on KS21, refer to KS21 (p.23) to select a compatible pole.
Realized site angles
realized site angleselected angle
on A-MOUNT
A10 Wide A10 Focus
-15° 0° -10°
-5° 10° 0°
0° 15° 5°

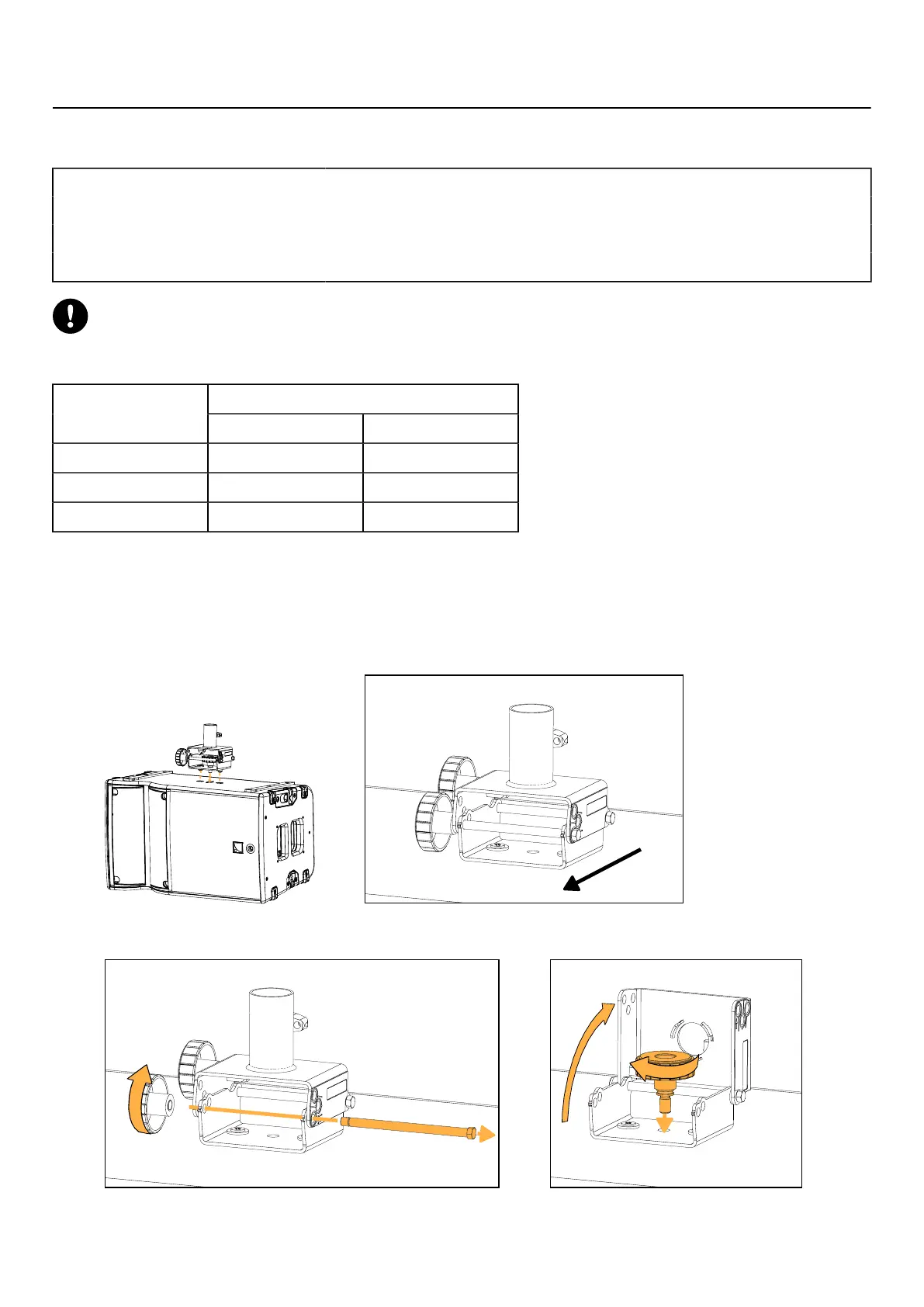

Assembly
Procedure
1. Place A-MOUNT on the enclosure, using the locating pins for positioning.
Consider the nal position of the enclosure.
FRONT
2. Remove the angle axis and secure A-MOUNT to the enclosure with the threaded knob.
A10 owner's manual (EN) version 1.1 97
