Rigging system description
Rigging elements for a single enclosure
A-MOUNT

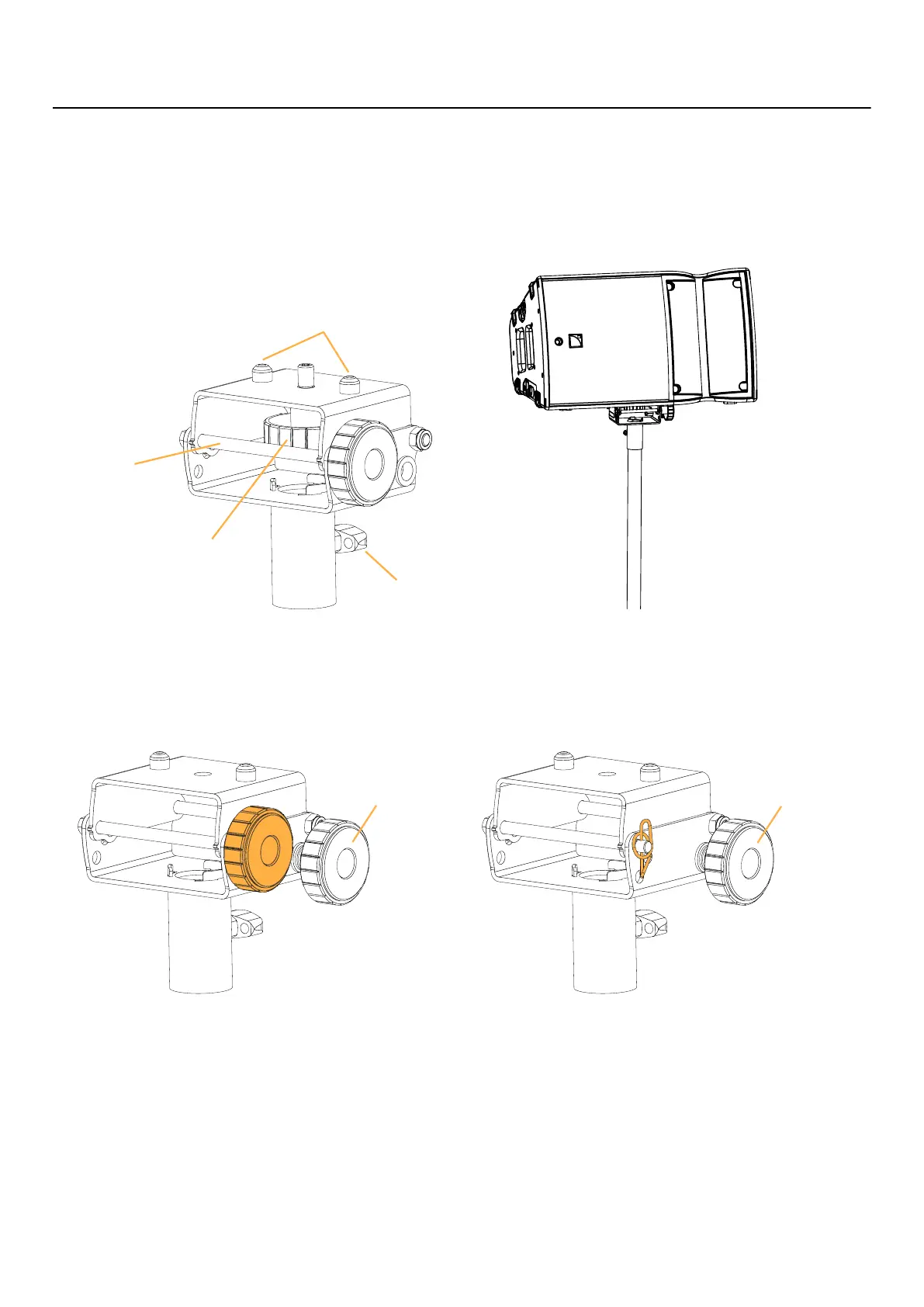

A-MOUNT is a 35 mm (1-3/8") pole-mount adapter for a single A10 Wide/Focus.
A-MOUNT is secured to the enclosure with a threaded knob and tightened onto the pole with a wedge clamp. Two
locating pins match the lodgings on the enclosure. A-MOUNT features two axis: the front one can be moved to change
the site angle.
studs
angle axis
enclosure knob
(in use)
wedge clamp
position in use
The enclosure knob can be stored in an insert on the side.
The angle axis is secured with a threaded knob. To optimize visual impact, the knob can be replaced by a locking cotter
pin (provided).
enclosure knob
(stored)
enclosure knob
(stored)
storage position storage position with locking cotter pin
A10 owner's manual (EN) version 1.1 39
