Rigging procedures
Stacking

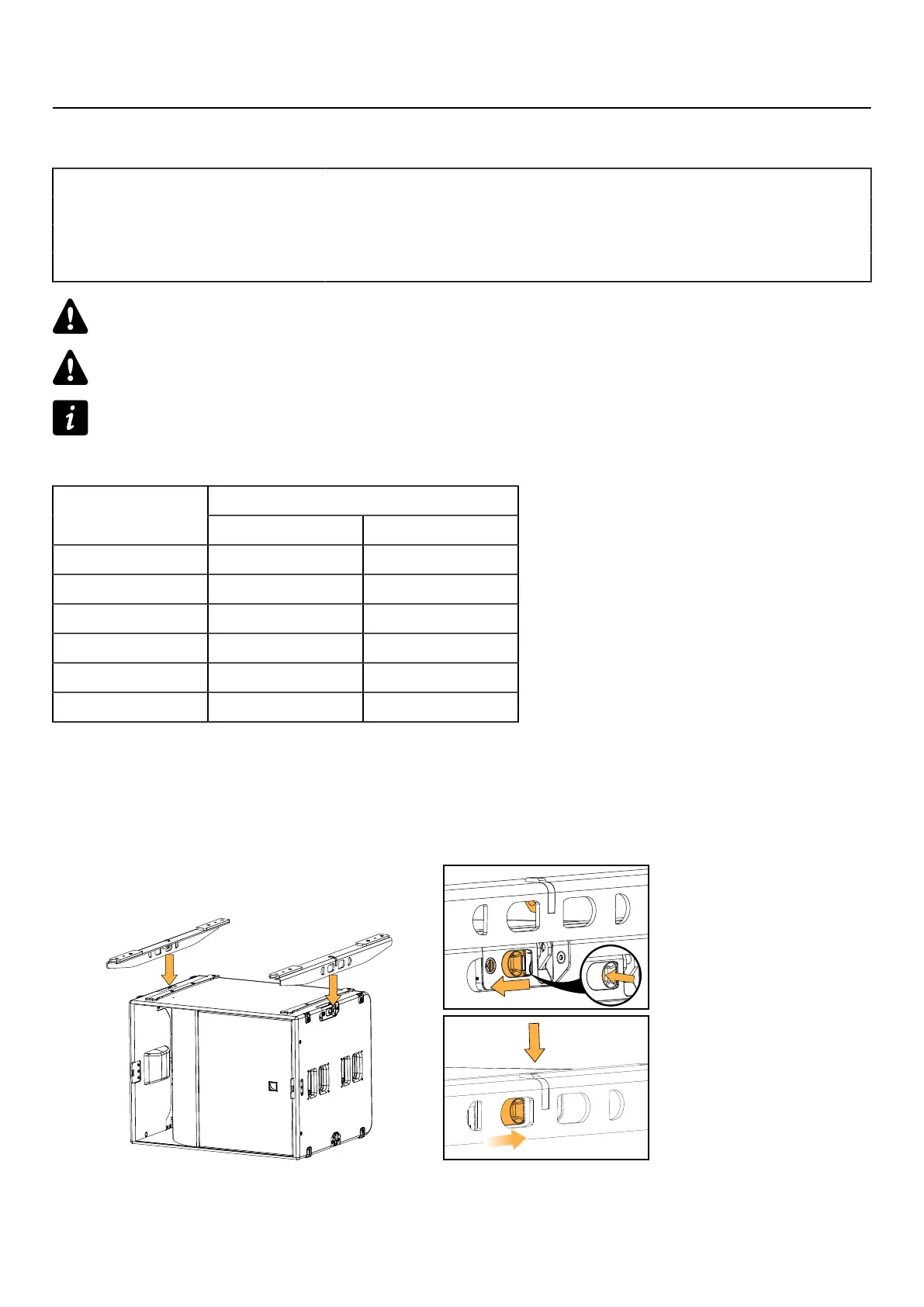

Stacking A10 Wide/Focus on KS21 with A-TILT
Type of deployment stacked array
Rigging accessory A-TILT
KS21-OUTRIG
*
Min number of operators 2
Risk of falling objects
Verify that no unattached items remain on the product or assembly.
Do not use A-TILT in a own array.
*
Alternatively, mount the KS21 array on KS21-CHARIOT and use K2-JACK to stabilize the array.
Realized site angles
realized site angleselected angle
on A-TILT
A10 Focus A10 Wide
12.5° -7.5° +2.5°
15° -10° 0°
17.5° -12.5° -2.5°
20° -15° -5°
22.5° -17.5° -7.5°
25° -20° -10°
Assembly
Procedure
1. Secure KS21-OUTRIG under a KS21.
Turn the KS21 upside-down to secure KS21-OUTRIG.
SHLAK!
88 A10 owner's manual (EN) version 1.1
