Corrective maintenance
D/R - HF diaphragm
Tools
• torque screwdriver
• T20 Torx bit
• compressed air blower
Consumables
• double face adhesive tape

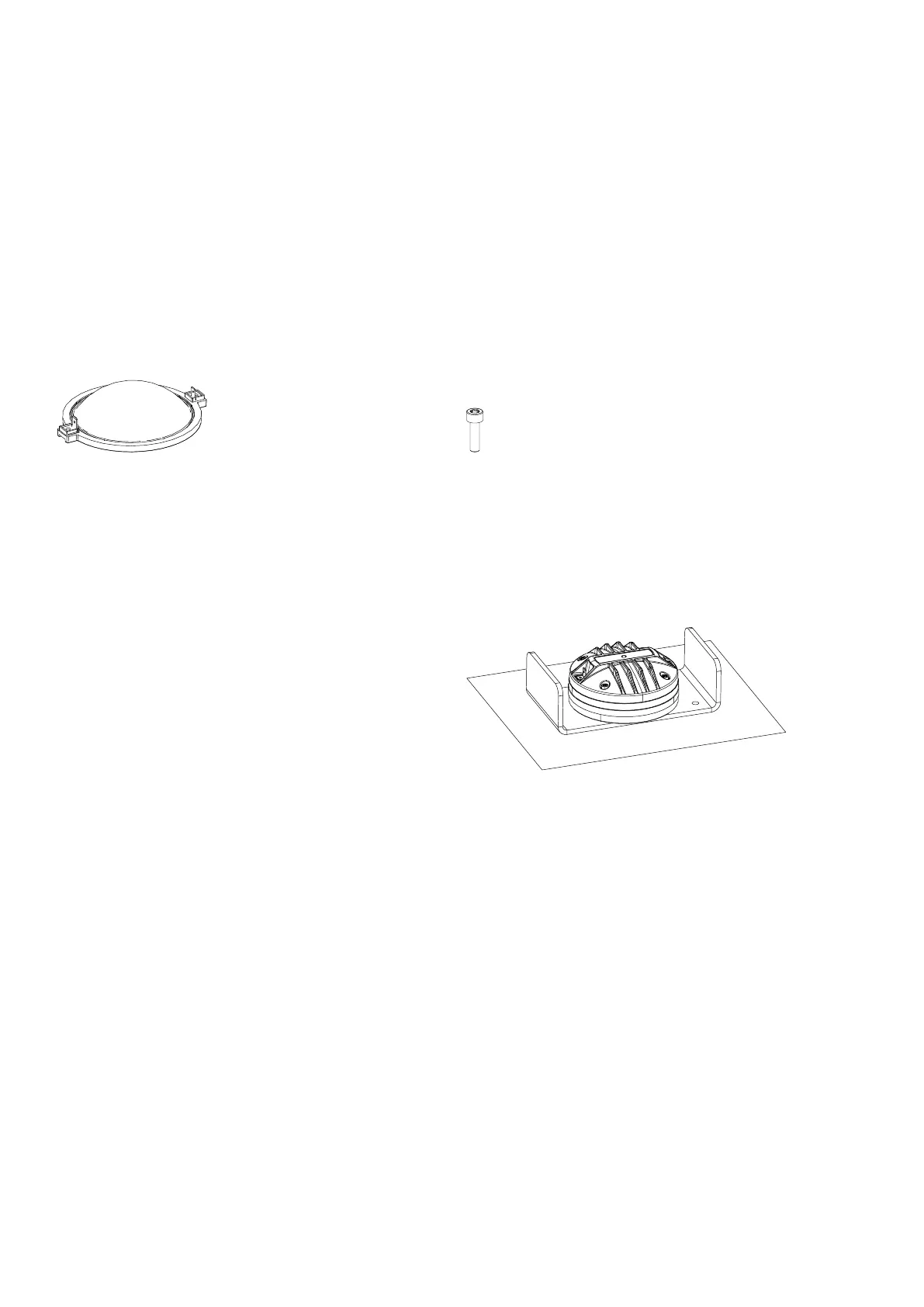

Repair kit
G03508
KR diaphragm A10 FOCUS/WIDE
×1 ×4
18085 S18085
diaphragm assembly (with shims) M4×14 Torx
Prerequisite
Connector plate removed. See Connector plate (p.104).
HF driver removed from the cabinet. See HF driver (p.105).
The driver is placed on a at surface in a dust-free
environment.
Disassembly
Procedure
1. Remove the four screws securing the cover.
Use the T20 Torx bit.
2. Remove the cover.
3. Carefully remove the diaphragm.
4. If there are shims on the dome, carefully remove them.
Take note of how many and what kind of shims are present.
106 A10 owner's manual (EN) version 1.1
