Corrective maintenance
D/R - LF speaker
Tools
• torque screwdriver
• T25 Torx bit
Repair kit
G03507
KR loudspeaker 10'' A10 FOCUS/WIDE
×1 ×4 ×4
17922 S100228 102325
10" LF speaker - 8 Ω M5x25 Torx 10" speaker gasket
Prerequisite
Grill removed. See Grill (p.109).
Fin removed. See Fin (p.110).

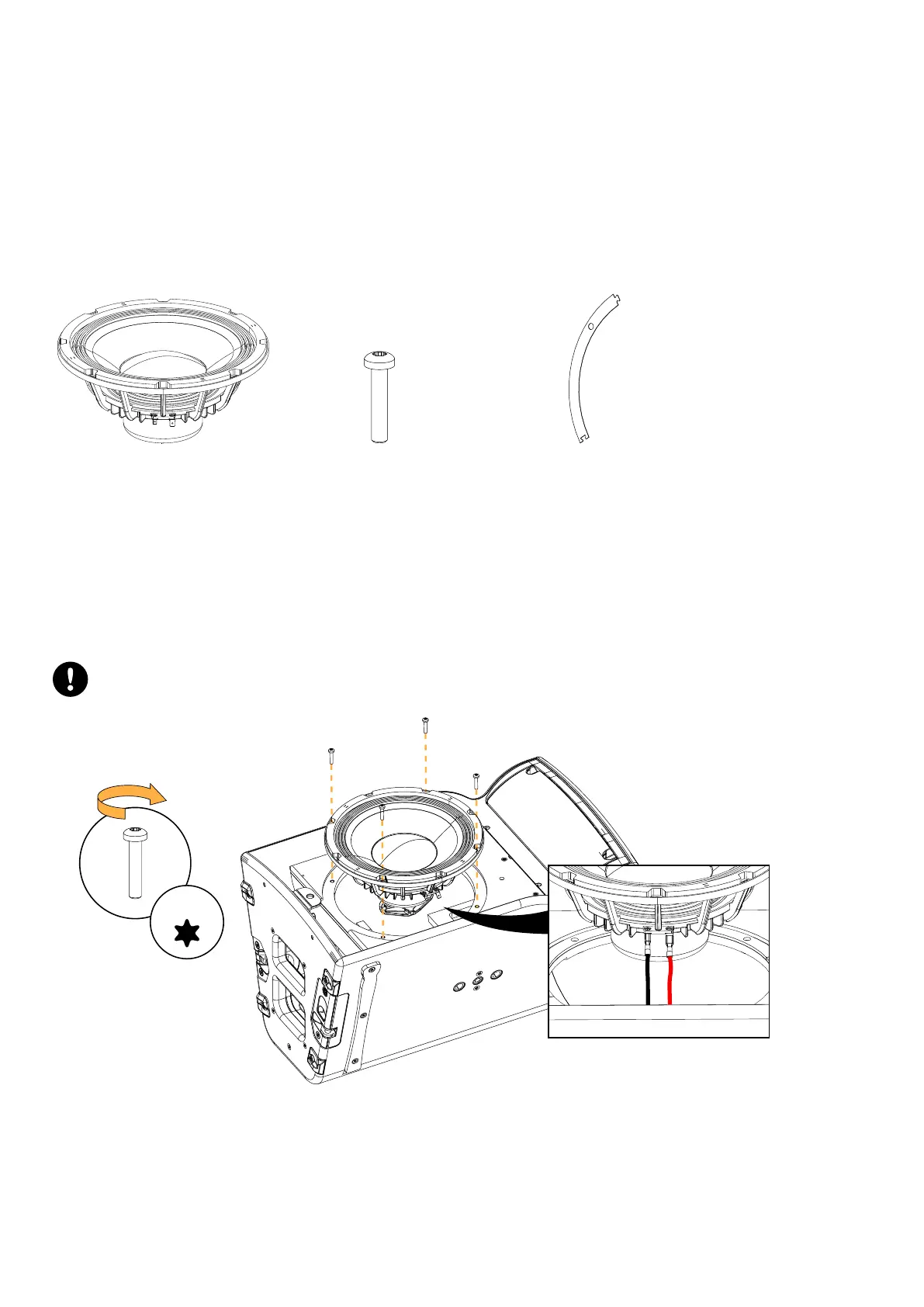

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
x4
3 N.m
T25
A10 owner's manual (EN) version 1.1 111
