Corrective maintenance
D/R - HF driver
Tools
• torque screwdriver
• T30 Torx bit
Repair kit
G03506 *
KR compression driver A10 FOCUS/WIDE
×1 ×2
G100427 S100094
1.4" HF driver assembly - 8 Ω M6×20 Torx
* The screws and fasteners are also provided in the G03508 (KR diaphragm A10 FOCUS/WIDE ).
Prerequisite
Connector plate removed. See Connector plate (p.113).

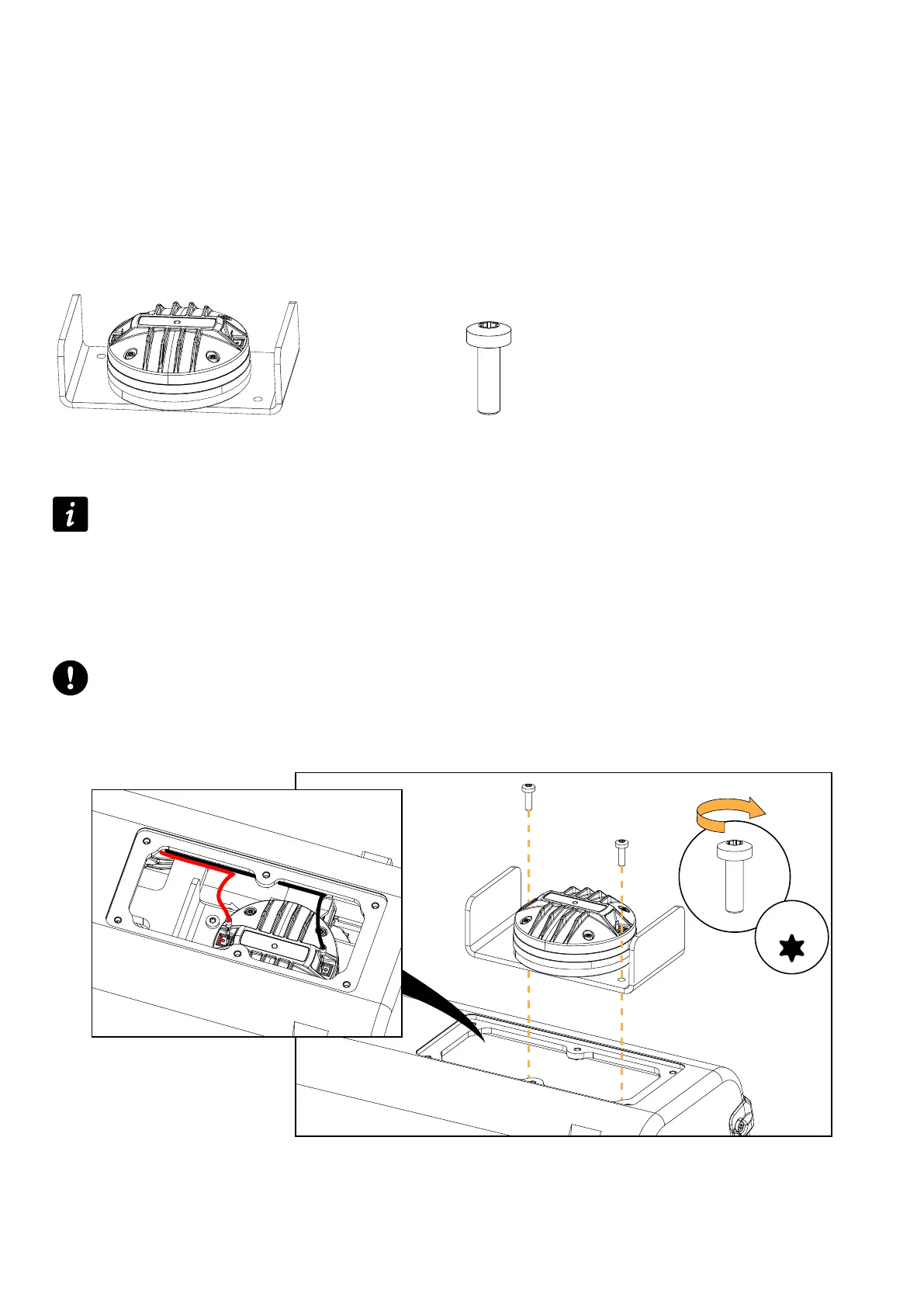

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Carefully disconnect the cables before removing the driver assembly.
Use the positive (red) connector as a reference point to position the driver assembly.
x2
5 N.m
T30
114 A10 owner's manual (EN) version 1.1
