Inspection and preventive maintenance

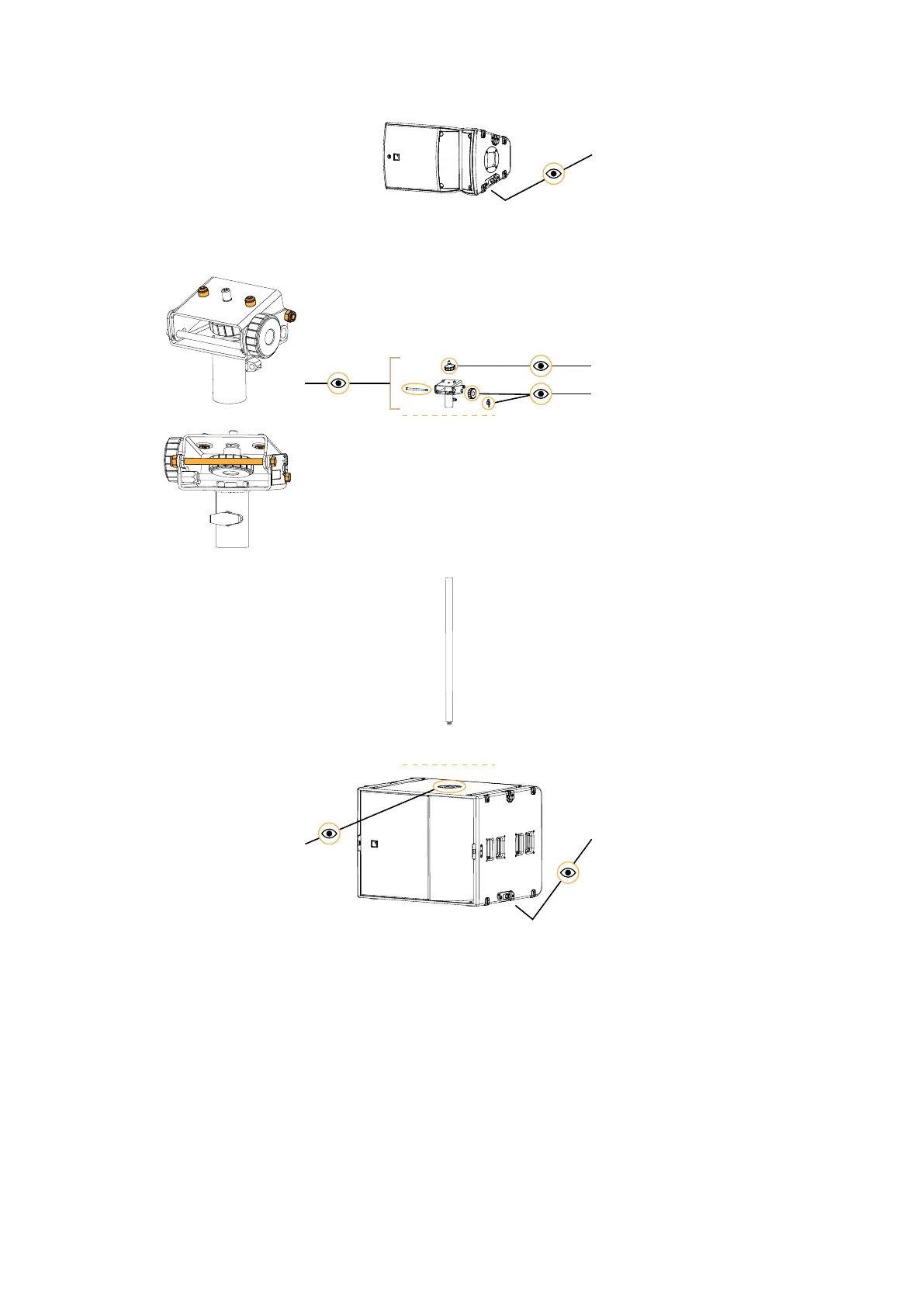

A10 Wide/Focus and A-MOUNT pole-mounted on KS21
the bottom inserts are not
damaged
all screws are tightened
the angle axis is not bent
Threaded knobs
(p.63)
make sure that either the locking
cotter pin or the knob is present
Make sure the pole is compatible
with the KS21 pole socket. Refer to
KS21
(p.23) for more information.
Pole-mount socket
(p.63)
Runners and corner stops
(p.62)
A10
owner's
manual
(EN)
version
1.1
57
56
58
Table of Contents
Table of Contents
3
Safety
5
Instructions
5
Introduction
7
A10 Family
7
How to Use this Manual
8
System Components
9
Loudspeaker Cables
10
Rigging Elements
11
Electro-Acoustical Description
12
Adjustable Ns
12
Directivity
14
Symmetrical ConGurations
16
Preset Description
17
Connectors
18
Connection to la AmpliEd Controllers
19
Rigging System Description
20
A10 System Rigging
20
Enclosures
22
A10 Wide/Focus
22
Ks21
23
Rigging Elements for Own A10 Arrays
24
A10-Bump
24
A10-Rigbar
26
A10-Lift
28
Rigging Elements for Own KS21 Arrays
30
A15-Bump
30
A15-Rigbar
32
Rigging Elements for Stacked Arrays
34
A-Tilt
34
Ks21-Outrig
36
K2-Jack
37
Rigging Elements for a Single Enclosure
39
A-Mount
39
X-Bar
40
Storage and Handling Elements
42
Ks21-Chariot
42
Ks21-Pla
43
KS21-COV and KS21-CHARIOTCOV
44
Mechanical Safety
45
Loudspeaker ConGurations
47
A10 Wide/Focus Line Source
47
With Low-Frequency Element
48
A10 Wide/Focus Line Source Element
49
With Low-Frequency Element
50
Inspection and Preventive Maintenance
51
How to Do Preventive Maintenance
51
Rigging Part Inspection
52
Mechanical System Overview
52
Inspection References
59
Rigging Check
64
Acoustical Check
66
Rigging Procedures
70
Flying
70
Flying a Vertical Array
70
Adding a Pullback with A10-BUMP/A10-RIGBAR
77
Flying a Radial Array with A10-LIFT
79
Flying a Single Enclosure with X-BAR
85
Stacking
88
Stacking A10 Wide/Focus on KS21 with A-TILT
88
Stacking KS21 on KS21-CHARIOT
92
Attaching K2-JACK Stabilizers to KS21-CHARIOT
94
Pole-Mounting
97
Corrective Maintenance
99
A10 Focus
99
A10 Wide
108
Ks21
117
SpeciCations
122
APPENDIX A: Authorized ConGurations with A10-LIFT
139
APPENDIX B: Installing the LAP-TEQ Inclinometer on A10-BUMP
141
APPENDIX C: Recommendation for Speaker Cables
142
